OZ 2000S SOLD!


OZ 2000S SOLD!

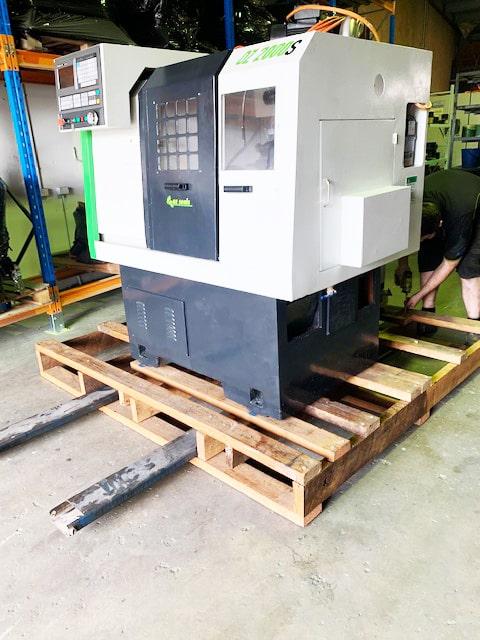

We are excited to announce that another one of our OZ machines, OZ 2000S, has been packed and shipped to our client in Italy.

Oz Seals takes pride in delivering custom machine solutions marked with quality workmanship when it comes to building or repairing our machines. We are committed to fulfilling customers’ requirements in every project we undertake.

If you are looking to buy any one of our machines, be it old or brand new, our machines are all competitively priced and are globally recognized as the best-designed machines.

All of our seal manufacturing systems and poly-processing machines are manufactured and modelled in Australia. They are in-stock and ready to be tested in our in-house manufacturing facility.

For further enquiries, please do not hesitate to call our Brisbane Branch at 1300 792 600.

Features:

– Machining seals up to a diameter of 250mm
– Manufacture seals at high speeds of up to 3000rpm
– 30° integral slant bed
– Uses servo motor on its spindle
– Fully equipped with sward extraction system and toolbox
– CAD/CAM software developed exclusively by Oz Seals
– Oz Seals aluminium adjustable clamping system

Complete seal manufacturing system includes:

– Granulator
– Seal manufacturing software and hardware (over 250 profiles)
– Swarf extraction system with cyclon seperator
– Complete set of Toolbox (inclues holders, cutting tools and spares)
– Freight, training and installation on site

OZ 2000S SPEC SHEET­­

Item Specification Unit Parameter
Capacity Max. swing dia. over bed mm Φ300
Max. effective turning dia. mm Φ260
Spindle Spindle bore mm Φ30
Spindle type / A2-5
Spindle speed rpm 3000
Chuck size / 5”
Max. bar through dia. mm Φ30
Spindle motor power kw 5.5
X/Z axis X axis full travel mm 300
Z axis full travel mm 150
X/Z axis motor power N.m 6/6
X/Z axis rapid moving speed m/min 20/20
Tool turret Tool turret type / Electric 8 station
Toolshank size mm 20×20, Φ32
Others Machining roughness / Ra ≤ 0.8
Machining accuracy / IT6
X/Z axes repeated positioning accuracy mm 0.006/0.006
Overall size mm 1600x1300x1730
N.W. kg 1500
