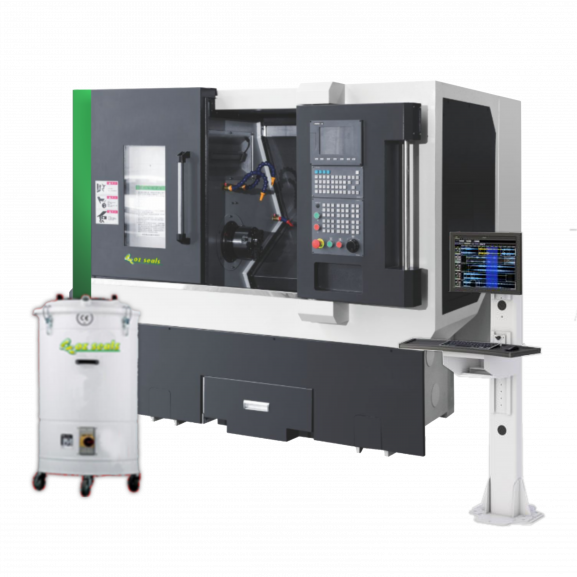

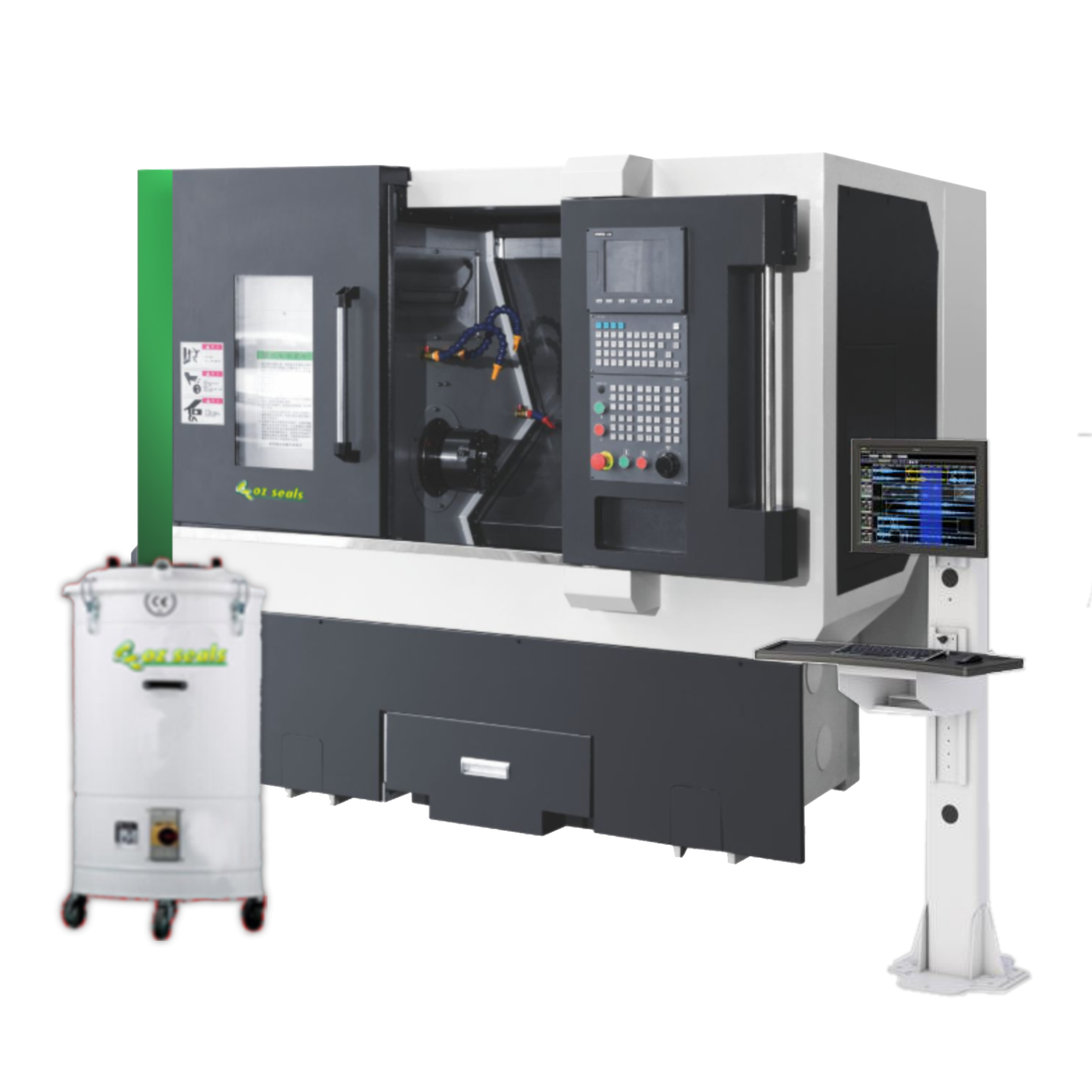

OZ 4000X

Features:

– Machining seals up to a diameter of 420mm
– Manufacture seals at high speeds of up to 3500rpm
– High rigidity, high speed, high precision

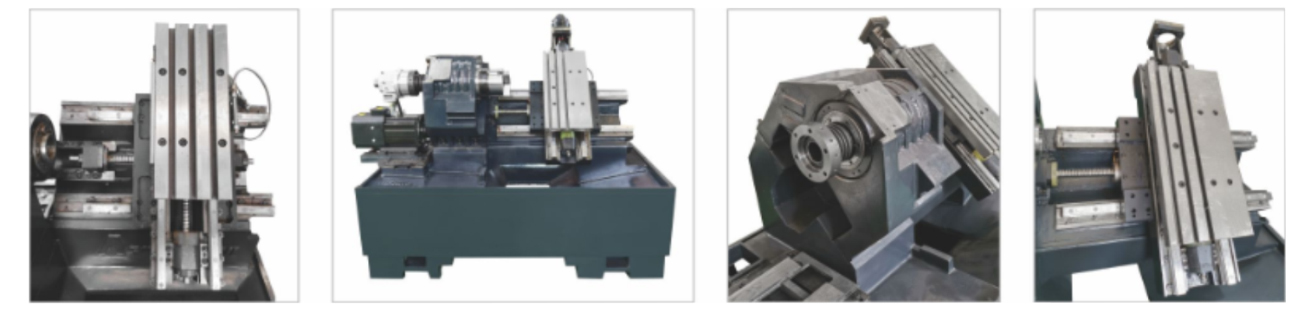

– 45° integral slant bed

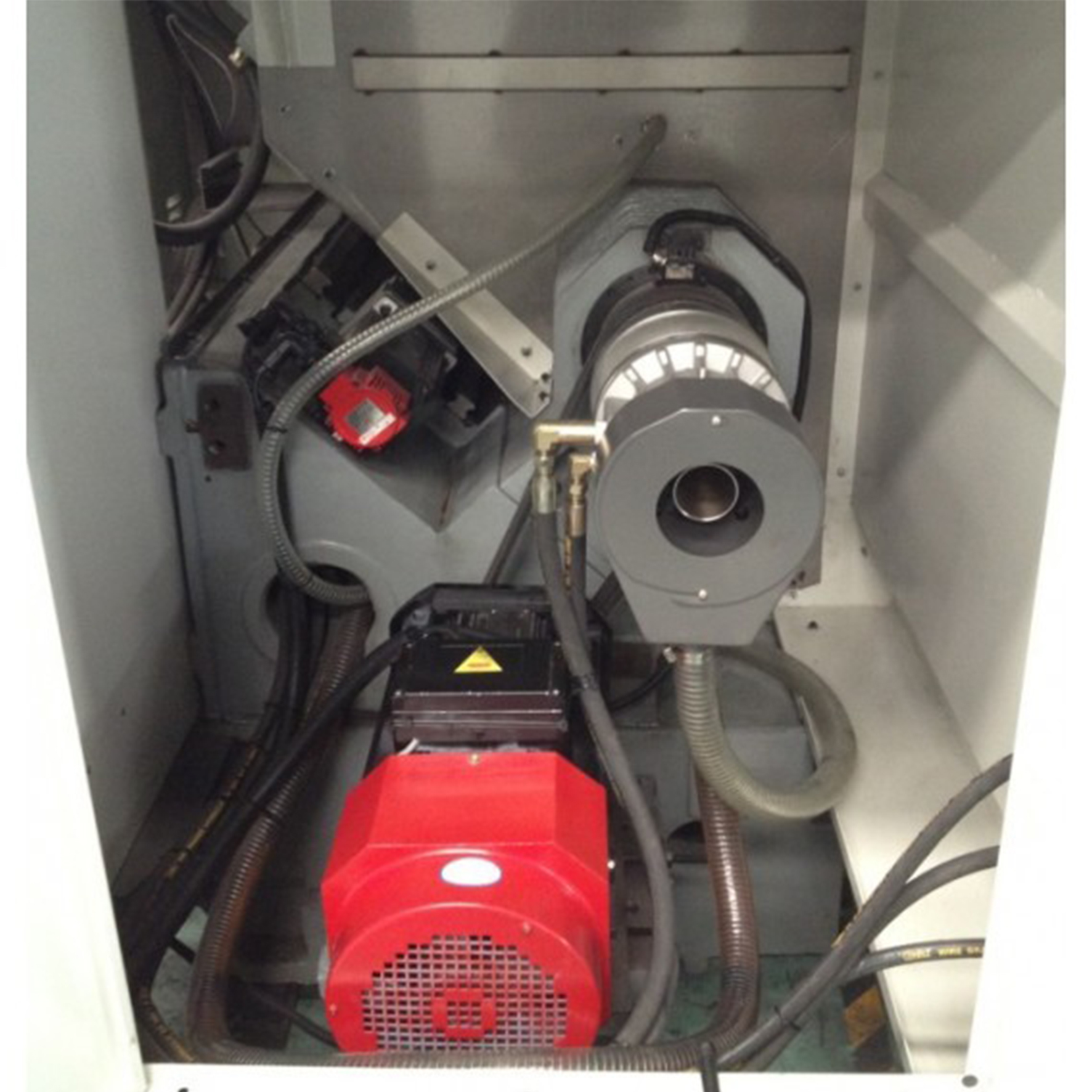

– Uses the Servo motor on its spindle
– Fully equipped with swarf extraction system and toolbox
– CAD/CAM software developed exclusively by Oz Seals.

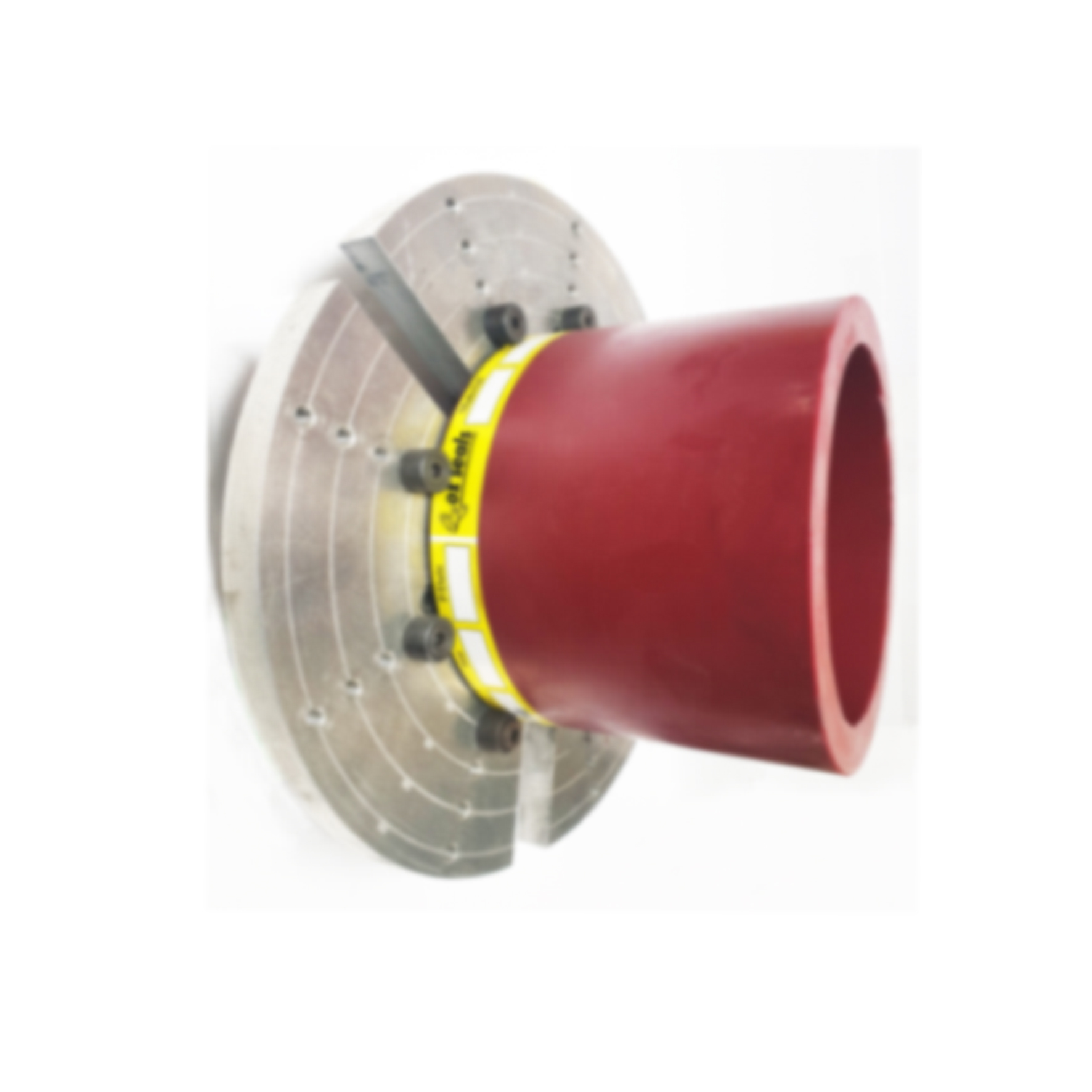

– Oz Seals aluminium adjustable clamping system

Complete seal manufacturing system includes:

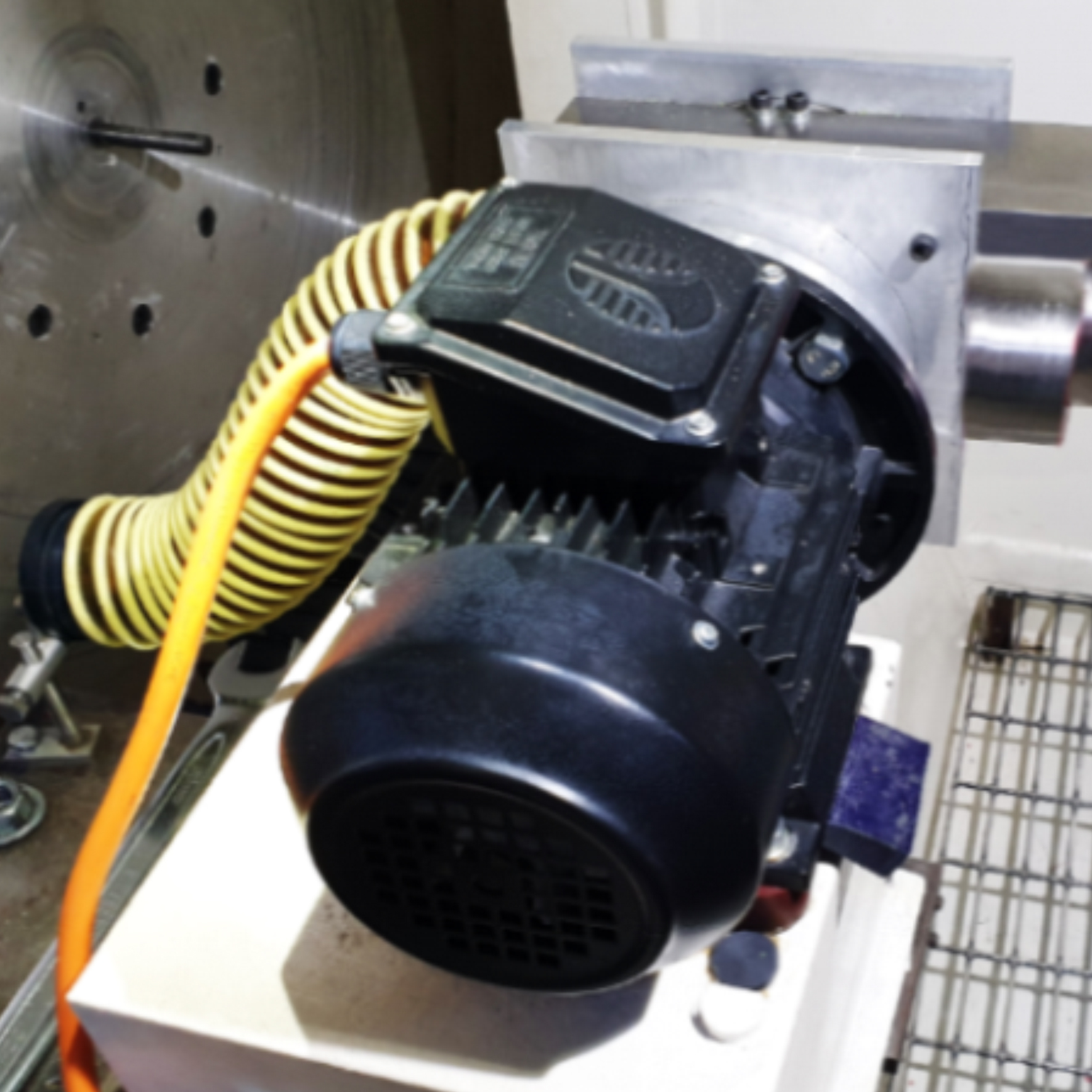

– Granulator

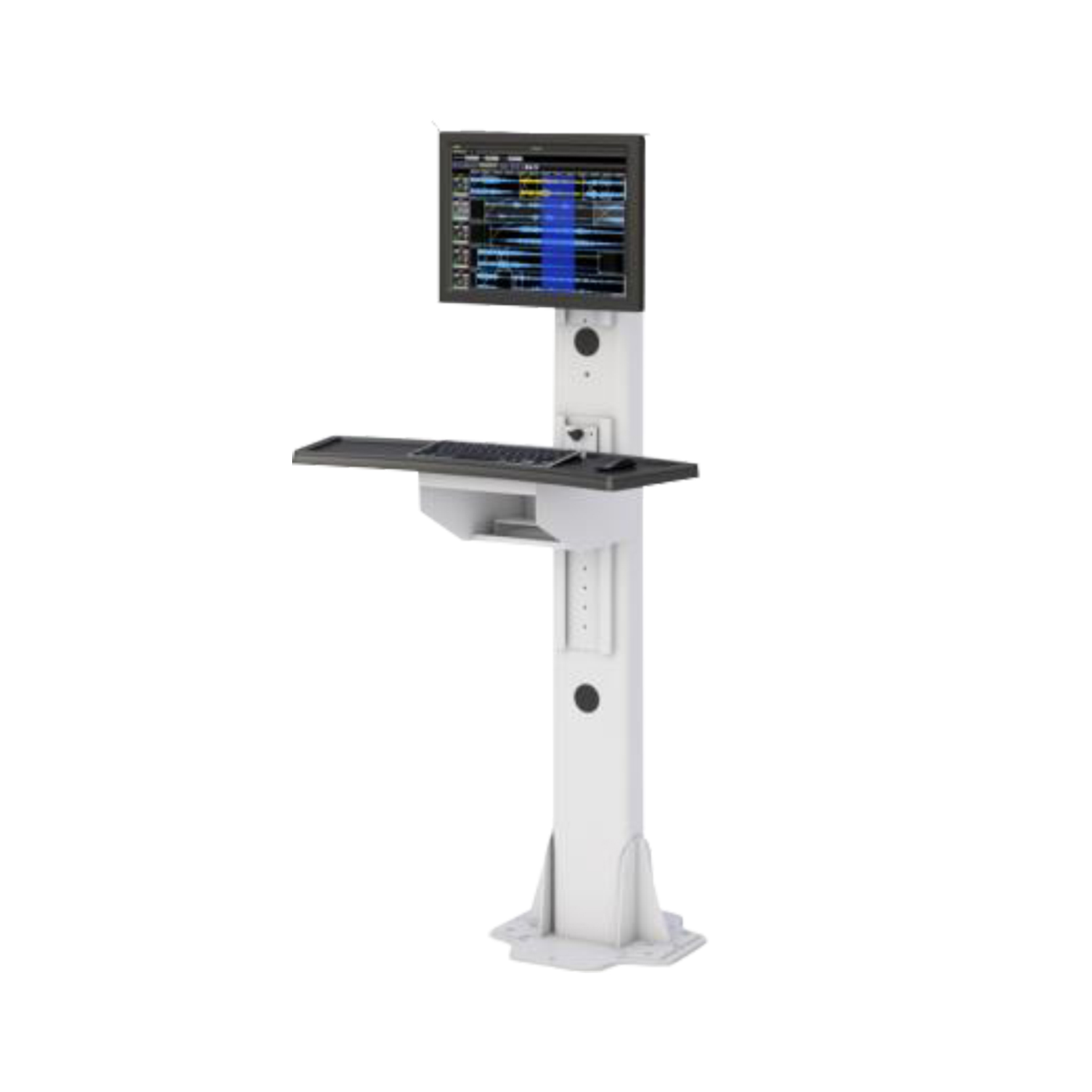

– Seal manufacturing software and hardware (over 250 profiles)

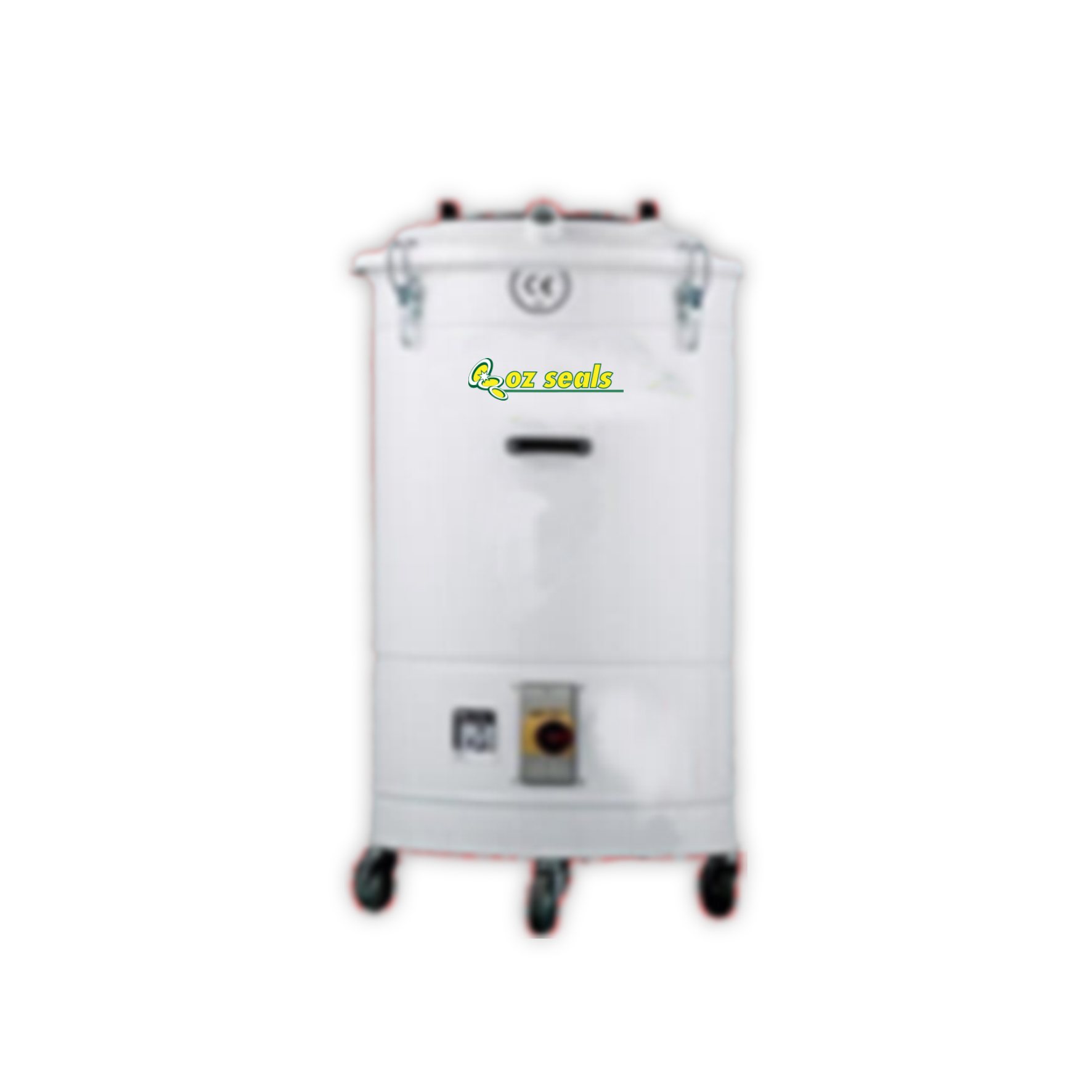

– Swarf extraction system with cyclon seperator
– Complete set of Toolbox (includes holders, cutting tools and spares)
– Freight, training and installation on site

OZ 4000X SPEC SHEET




Item Specification Unit Parameter
Capacity Max. swing dia. over bed mm Φ420
Max. swing dia. over slide mm Φ220
Recommended turning dia. mm Φ210
Max. turning dia. mm Φ400
Max. effective turning length mm 350
Spindle Spindle bore mm Φ65
Spindle type / A2-6
Spindle speed rpm 3500
Chuck size / 8″ (OPT: 10″ chuck)
Max. bar through dia. mm Φ44
Spindle motor power kw 7.5
X/Z axes X axes full travel mm 210
Z axes rapid moving speed mm 450
X/Z axes rapid moving speed m/min 20/20 (linear guideway) | 12/12 (hard box guideway)

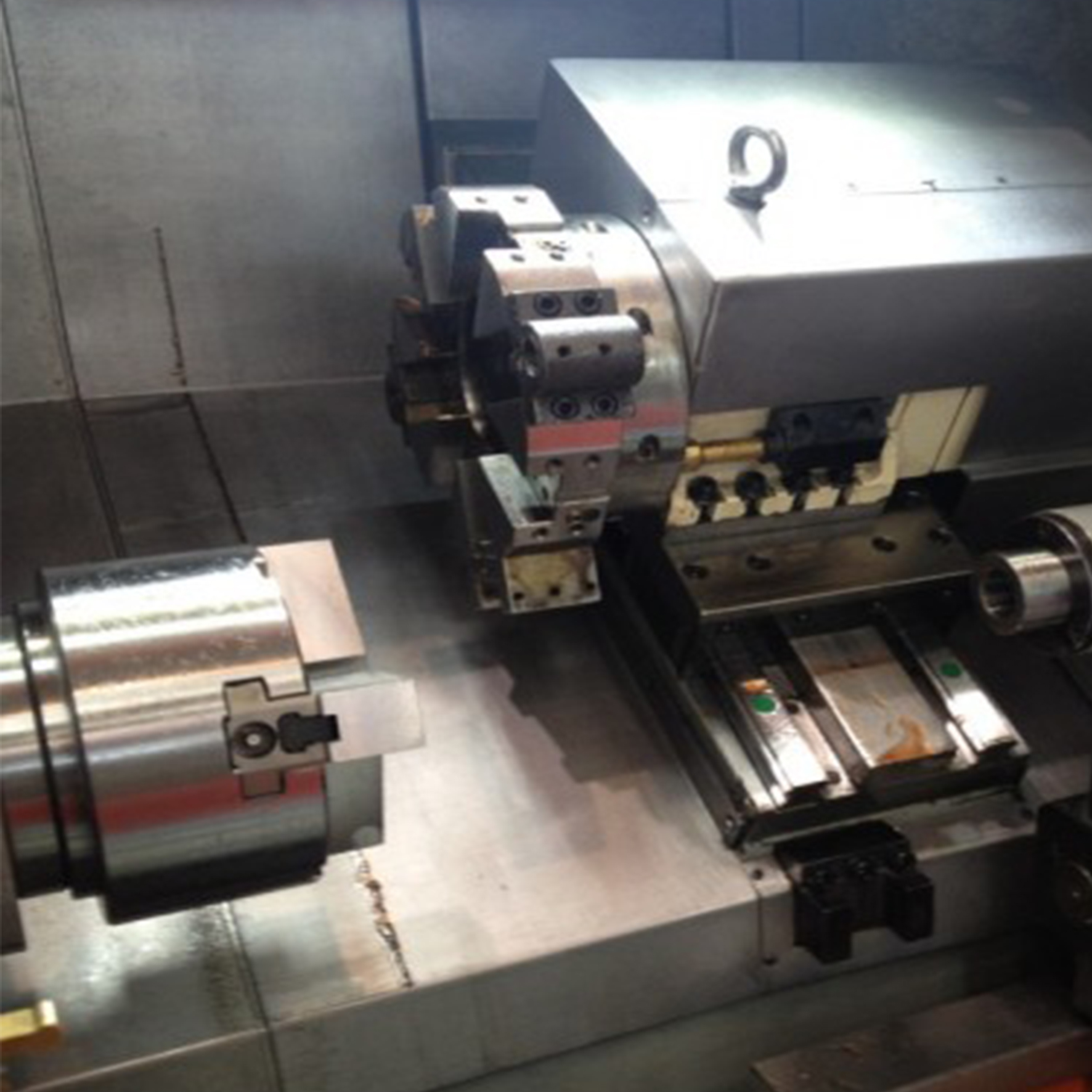

Tool turret Tool turret type / Hydraulic 8 station
Toolshank size mm 25×25, Φ32
Tailstock Tailstock quill taper / MT4#
Tailstock quill dia./travel mm Φ52/50
Tailstock guideway / Hard rectangle
Others Machining roughness / Ra ≤ 0.8
Machining accuracy / IT6
X/Z axes repeated positioning accuracy mm 0.006/0.006
Overall size mm 2380×1750×1710
N.W. kg 2700




Item Brand
CNC controller OPT: SIEMENS/FANUC/GSK
Feeding driver & motor OPT: SIEMENS/FANUC/GSK
Spindle driver & motor OPT: SIEMENS/FANUC/GSK
Spindle unit Taiwan-LOSEN/KENTURN
Spindle encoder GERMANY-HEIDENHAIN
Servo powered tool turret GERMANY-SAUTER
Ball screw TAIWAN-PMI/HIWIN
Ball screw bearing Japan-NSK/TAIWAN-TPI
Linear guideway TAIWAN PMI/HIWIN
Lubrication system TAIWAN- ISHAN
Rotary oil cylinder & chuck TAIWAN-CH-H
Hydraulic parts Taiwan/Japan
Coolant pumps Joint venture
MPG USA-HEDSS
Tri-colour indication lamp KOREA-QLIGHT
Isolation transformer CHINA-top-CHINT/JIUKO
Breaker FRANCE-SCHNEIDER
AC Contactor FRANCE-SCHNEIDER
Relay JAPAN-OMRON
Dc switching mode power supply TAIWAN-MEANWELL
Terminal block GERMANY-WEIDMULLER
Synchronous belt USA-GATES
Synchronous belt wheel TAIWAN-PTP
Nuts TAIWAN-YINSH
Shaft coupling GERMANY-KTR/R+W
Extensible cover TAIWAN-WANHE
Chip conveyor & chip bucket TAIWAN-WANHE
Coolant pipe TAIWAN-WEIDING
  • 3 OPT controllers GSK, 980TDC, CNC controller
  • FANUC series Oi-TF CNC controller
  • SIEMENS 828D CNC Controller
  • X/Z axes driver&motor: SIEMENS servo
  • Spindle: ECO top brand Servo Motor&Driver 11kw, A2-6,bore:76mm
  • Manual chuck 8’’ with adjustable billet jaws
  • Center distance: 550mm
  • TAIWAN brand 8 station Hydraulic tool turret (OPT:10 station)
  • Automatical lubrication,Tri-color indication lamp, coolant system, working lamp, heat exchanger, pedal switch
  • Front door lock by sensor, side door lock by bolts (According to CE safety standard)

NOTE: As we are constantly upgrading and improving our machines, specifications are subject to change without notice.

Machines are custom configurable - please enquire for more details.
