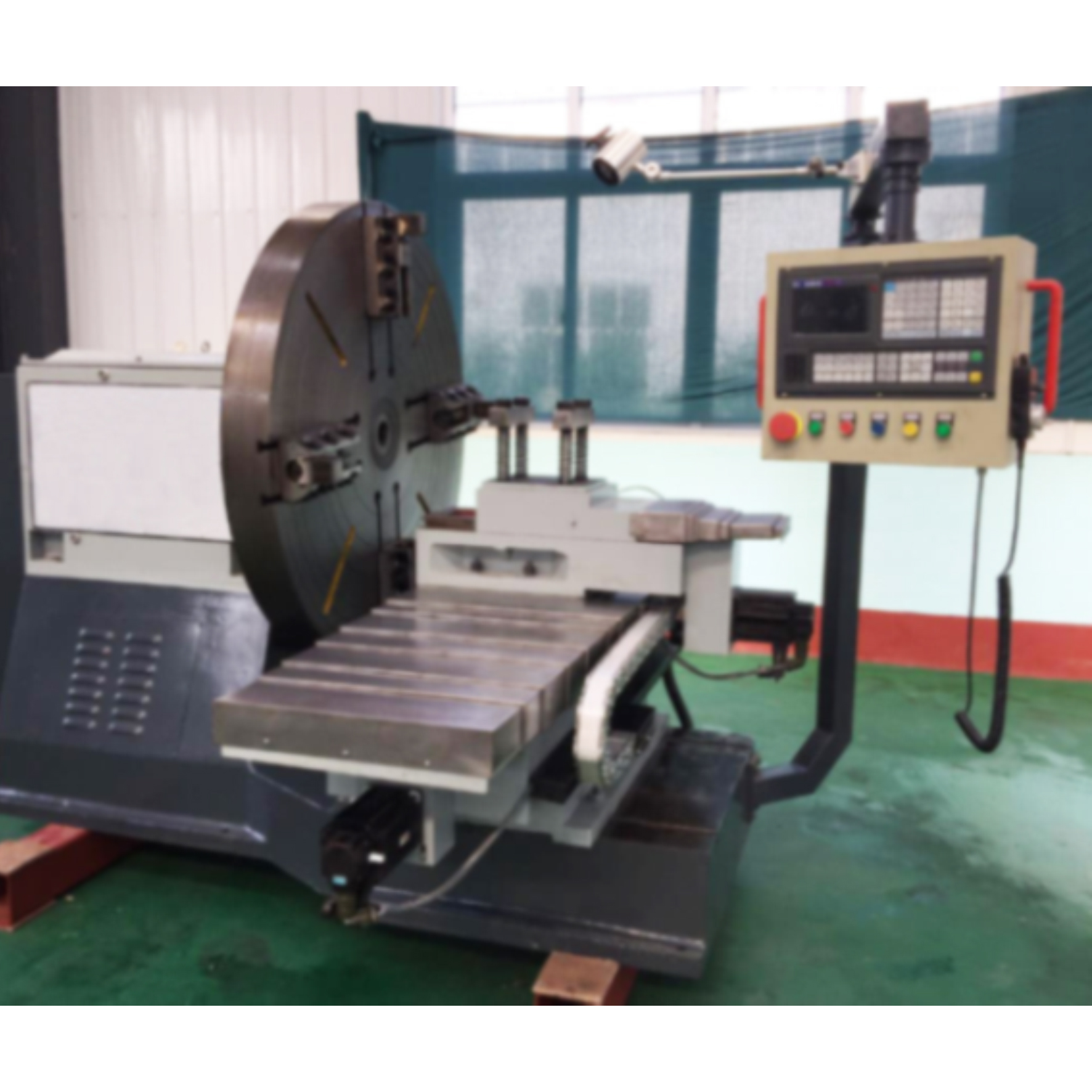

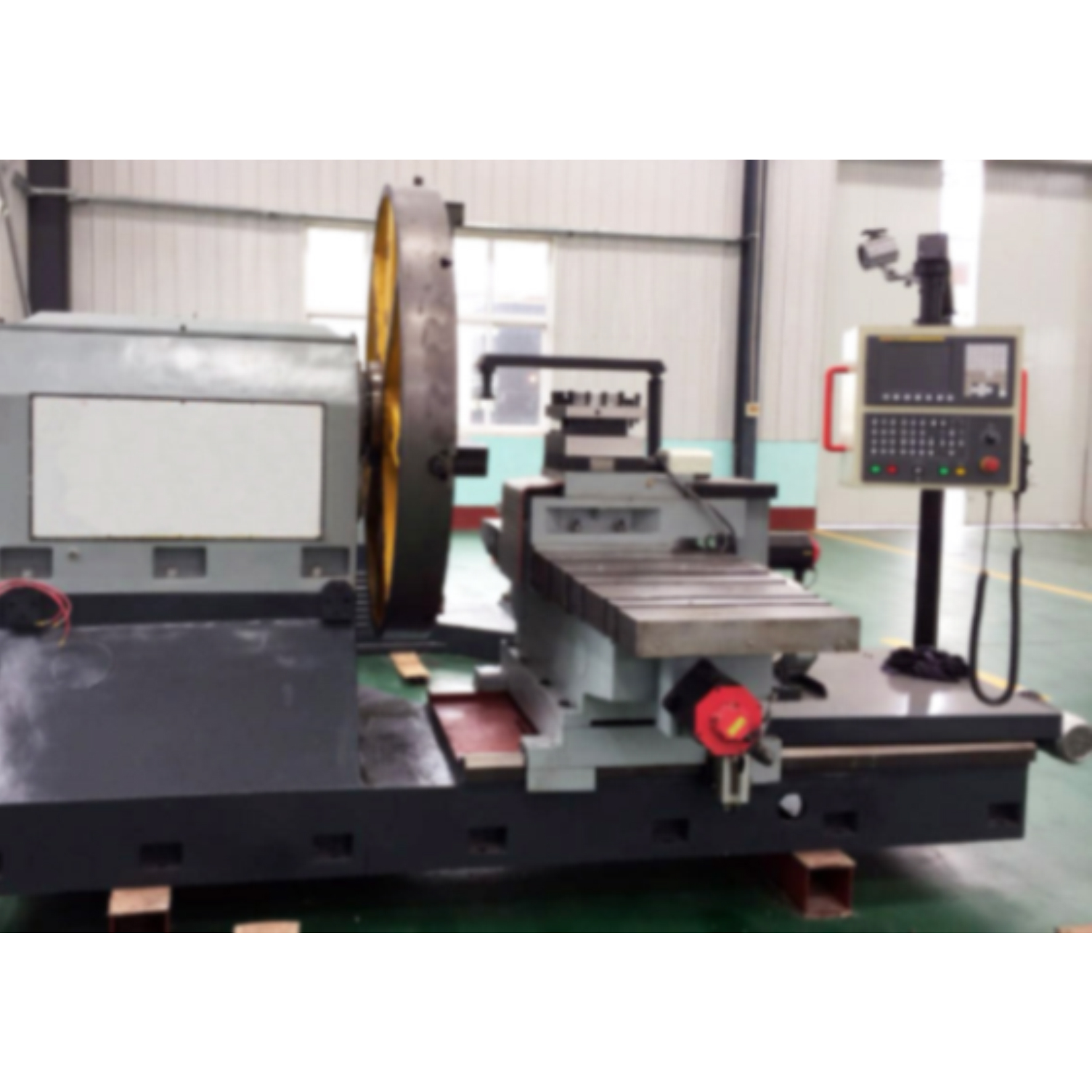

Oz Megatron

Features:

– Bed casted by high quality cast iron, high rigidity
– Guideway hardened by ultrasonic, precisely ground, stick TSF
– Gears in headstock are hardened and precisely ground
– High class spindle bearings and chuck
– Two options for machining diameter (1500mm & 2000mm)
– Eliminates swarf tangle with vertical spindle
– High class ball screw, high precision, accurate transmission
– Good aseismatic, X/Z axes adopt big power servo motor
– X/Z axes ball screw connect with motor directly
– Super wide slide board
– CAD/CAM software developed exclusively by Oz Seals.

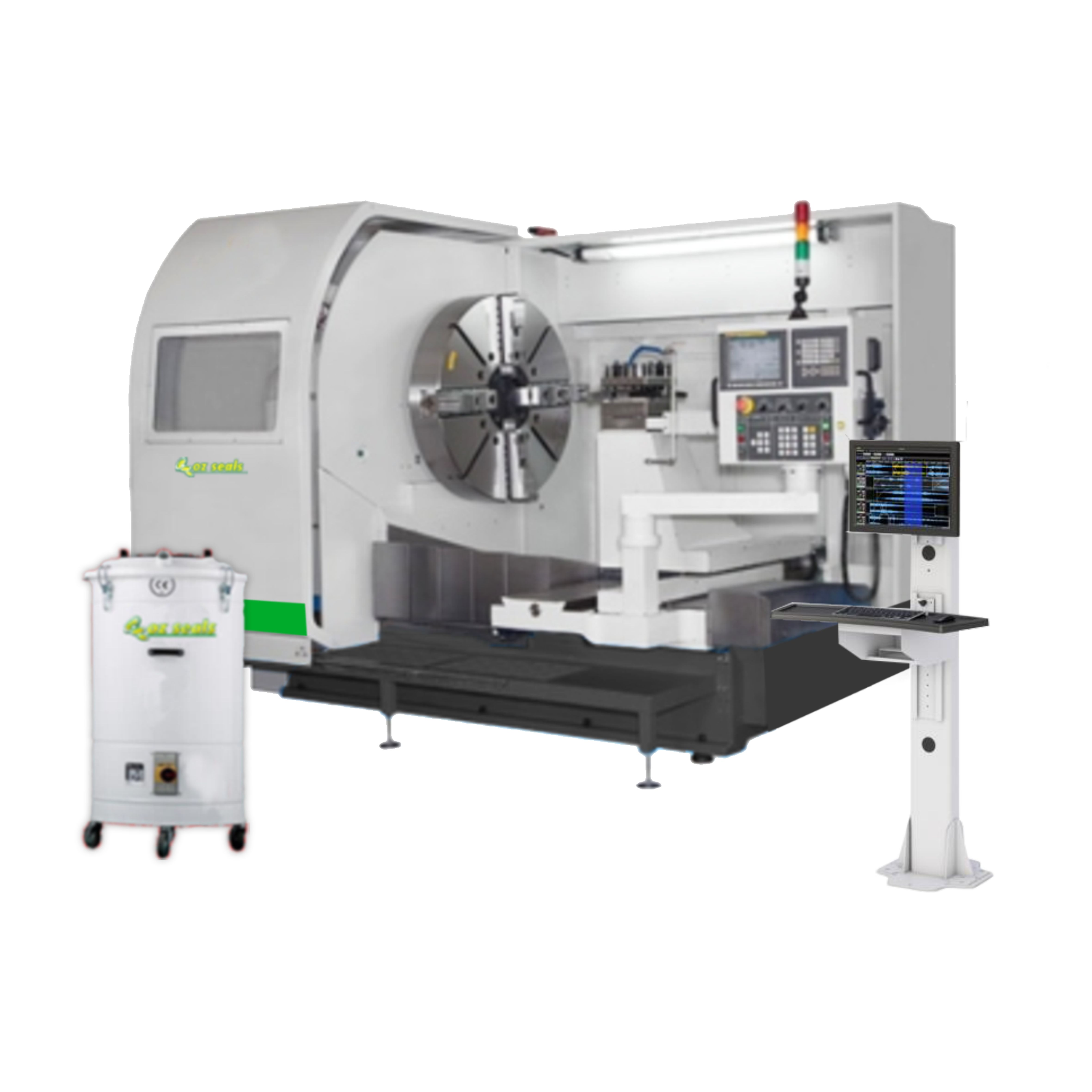

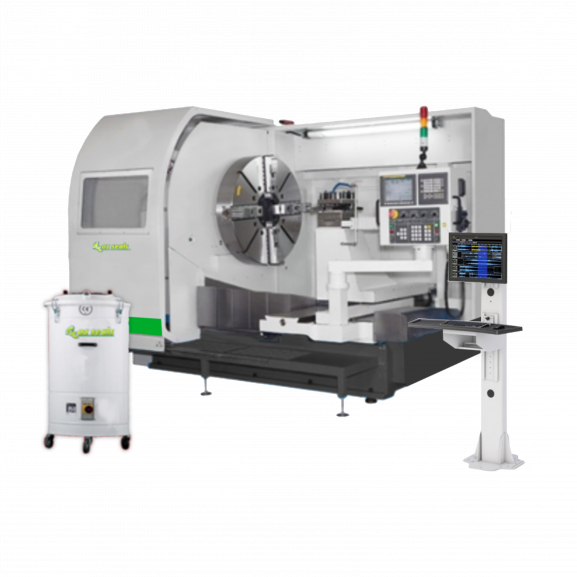

Complete seal manufacturing system includes:

– Granulator
– Seal manufacturing software and hardware (over 250 profiles)
– Swarf extraction system with cyclon seperator
– Complete set of Toolbox (includes holders, cutting tools and spares)
– Freight, training and installation on site

OZ MEGATRON SPEC SHEET



Item Specification Unit Parameter
Capacity Max. cutting OD mm OPT: 1500/2000
Max workpiece length mm 700
Bed width mm 820
Cross slide width mm 450
Spindle Spindle bore/nose mm 155/A2-11
Spindle taper / MT#7
Spindle speed rpm 4-600
Spindle speed steps rpm 4″
Main motor kw 30/*37
Change speed motor w 60×2
Cross slide (X axes) & carriage (Z axes) Cross slide travel (X axes) mm (inch) 800
Longitudinal travel (Z axes) mm(inch) 700
Controller / OPT: SIEMENS/FANUC/GSK
AC servo motor (X axes) kw 3
AC servo motor (Z axes) kw 4
Dia. ball of screw (X axes) mm Φ40XP5XC3
Dia. ball of screw (Z axes) mm Φ50XP10XC5
Rapid traverse speed (X axes) mm/min 6000
Rapid traverse speed (Z axes) mm/min 8000
Turret/Toolpost Tool station / *Quick change toolspot (manual)/ *Electric horizontal type 4T
Toolshank mm 32
Weight Net/gross Kg 6000/6800
Dimensions Floor size (LxWxH) mm 3300x2600x2500



Item Brand
CNC controller OPT: SIEMENS/FANUC/GSK
Feeding driver & motor OPT: SIEMENS/FANUC/GSK
Spindle driver & motor OPT: SIEMENS/FANUC/GSK
Spindle unit Taiwan-LOSEN/KENTURN
Spindle encoder GERMANY-HEIDENHAIN
Servo powered tool turret GERMANY-SAUTER
Ball screw TAIWAN-PMI/HIWIN
Ball screw bearing Japan-NSK/TAIWAN-TPI
Linear guideway TAIWAN PMI/HIWIN
Lubrication system TAIWAN- ISHAN
Rotary oil cylinder & chuck TAIWAN-CH-H
Hydraulic parts Taiwan/Japan
Coolant pumps Joint venture
MPG USA-HEDSS
Tri-colour indication lamp KOREA-QLIGHT
Isolation transformer CHINA-top-CHINT/JIUKO
Breaker FRANCE-SCHNEIDER
AC Contactor FRANCE-SCHNEIDER
Relay JAPAN-OMRON
Dc switching mode power supply TAIWAN-MEANWELL
Terminal block GERMANY-WEIDMULLER
Synchronous belt USA-GATES
Synchronous belt wheel TAIWAN-PTP
Nuts TAIWAN-YINSH
Shaft coupling GERMANY-KTR/R+W
Extensible cover TAIWAN-WANHE
Chip conveyor & chip bucket TAIWAN-WANHE
Coolant pipe TAIWAN-WEIDING
  • 3 OPT controllers GSK, 980TDC, CNC controller
  • FANUC series Oi-TF CNC controller
  • SIEMENS 828D CNC Controller
  • X/Z axes driver&motor: SIEMENS servo
  • Spindle: ECO top brand Servo Motor&Driver
  • Manual chuck with clamping face plate
  • 4 Station Toolpost
  • Automatical lubrication,Tri-color indication lamp, coolant system, working lamp, heat exchanger, pedal switch
  • Front door lock by sensor, side door lock by bolts (According to CE safety standard)

NOTE: As we are constantly upgrading and improving our machines, specifications are subject to change without notice.

Machines are custom configurable - please enquire for more details.
