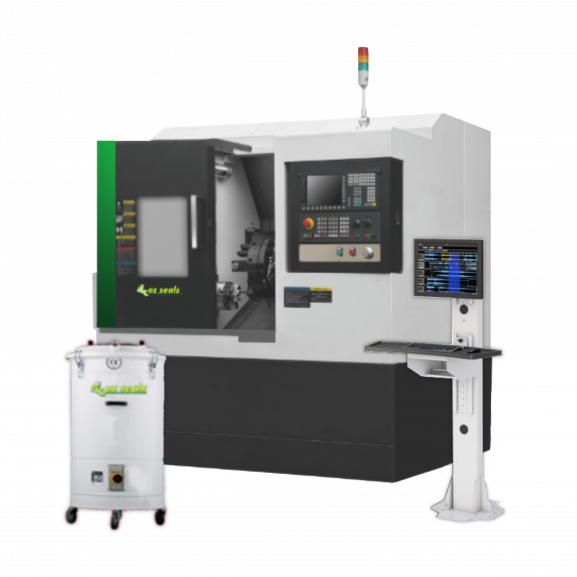

OZ 2000X

Features:

– Machining seals up to a diameter of 250mm
– Manufacture seals at high speeds of up to 4000rpm

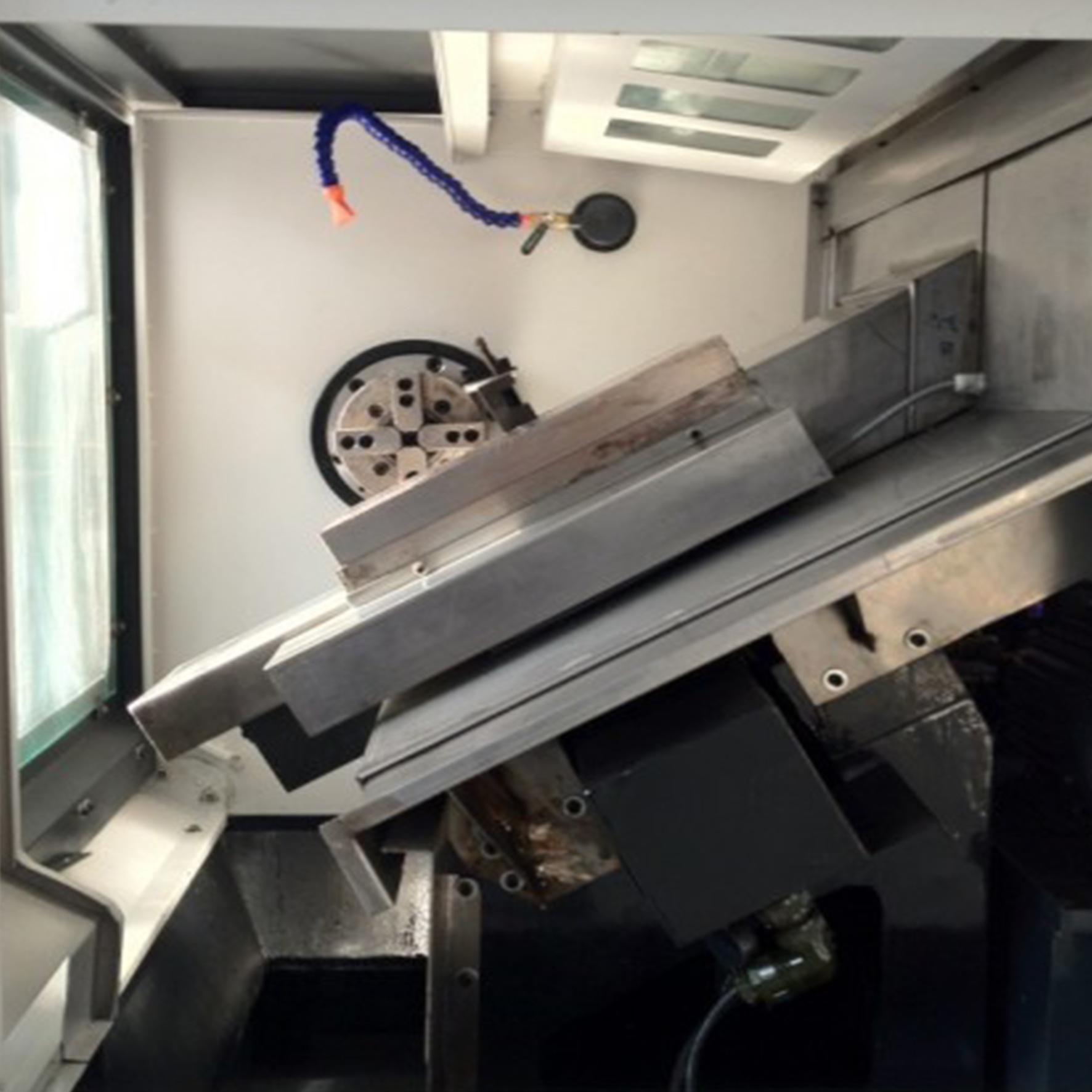

– 30° integral slant bed
– Uses servo motor on its spindle
– Fully equipped with sward extraction system and toolbox
– CAD/CAM software developed exclusively by Oz Seals
– Oz Seals aluminium adjustable clamping system

Complete seal manufacturing system includes:

– Granulator
– Seal manufacturing software and hardware (over 250 profiles)
– Swarf extraction system with cyclon seperator
– Complete set of Toolbox (inclues holders, cutting tools and spares)
– Freight, training and installation on site

OZ 2000X SPEC SHEET




Item Specification Unit Parameter
Capacity Max. swing dia. over bed mm Φ250
Max. swing dia. over slide mm Φ160(tool turret)
Max. effective turning dia. mm Φ200
Center distance mm 200
Max. effective turning length mm 240
Spindle Spindle bore mm Φ56
Spindle type / A2-5
Spindle speed rpm 4000
Chuck size / 6”
Max. bar through dia. mm Φ44
Spindle motor power kw 5.5
X/Z axes X axes full travel mm 180
Z axes full travel(Include travel under chuck) mm 350
X/Z axes motor power N.m 6/6
X/Z axes rapid moving speed m/min 20/20
Tool turret Tool turret type / Hydraulic 8 station
Toolshank size mm 20×20, Φ32
Tailstock Tailstock quill taper / MT4#
Tailstock quill dia./travel mm Φ52/60
Tailstock guideway / Rectangle guideway
Others Machining roughness / Ra ≤ 0.8
Machining accuracy / IT6
X/Z axes repeated positioning accuracy mm 0.006/0.006
Overall size mm 1700x1360x1600
N.W. kg 1500




Item Brand
CNC controller OPT: SIEMENS/FANUC/GSK
Feeding driver & motor OPT: SIEMENS/FANUC/GSK
Spindle driver & motor OPT: SIEMENS/FANUC/GSK
Spindle unit Taiwan-LOSEN/KENTURN
Spindle encoder GERMANY-HEIDENHAIN
Servo powered tool turret GERMANY-SAUTER
Ball screw TAIWAN-PMI/HIWIN
Ball screw bearing Japan-NSK/TAIWAN-TPI
Linear guideway TAIWAN PMI/HIWIN
Lubrication system TAIWAN- ISHAN
Rotary oil cylinder & chuck TAIWAN-CH-H
Hydraulic parts Taiwan/Japan
Coolant pumps Joint venture
MPG USA-HEDSS
Tri-colour indication lamp KOREA-QLIGHT
Isolation transformer CHINA-top-CHINT/JIUKO
Breaker FRANCE-SCHNEIDER
AC Contactor FRANCE-SCHNEIDER
Relay JAPAN-OMRON
Dc switching mode power supply TAIWAN-MEANWELL
Terminal block GERMANY-WEIDMULLER
Synchronous belt USA-GATES
Synchronous belt wheel TAIWAN-PTP
Nuts TAIWAN-YINSH
Shaft coupling GERMANY-KTR/R+W
Extensible cover TAIWAN-WANHE
Chip conveyor & chip bucket TAIWAN-WANHE
Coolant pipe TAIWAN-WEIDING
  • 3 OPT controllers GSK, 980TDC, CNC controller
  • FANUC series Oi-TF CNC controller
  • SIEMENS 828D CNC Controller
  • X/Z axes driver&motor: SIEMENS servo
  • Spindle: ECO top brand Servo Motor&Driver 5.5kw, A2-5,bore:56mm
  • Manual chuck 6’’ with adjustable billet jaws
  • TAIWAN brand 8 station Hydraulic tool turret
  • Automatical lubrication,Tri-color indication lamp, coolant system, working lamp, heat exchanger, pedal switch

NOTE: As we are constantly upgrading and improving our machines, specifications are subject to change without notice.

Machines are custom configurable - please enquire for more details.
