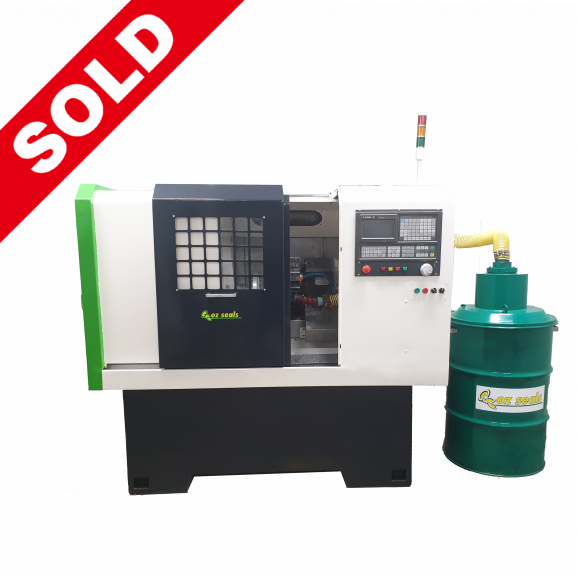

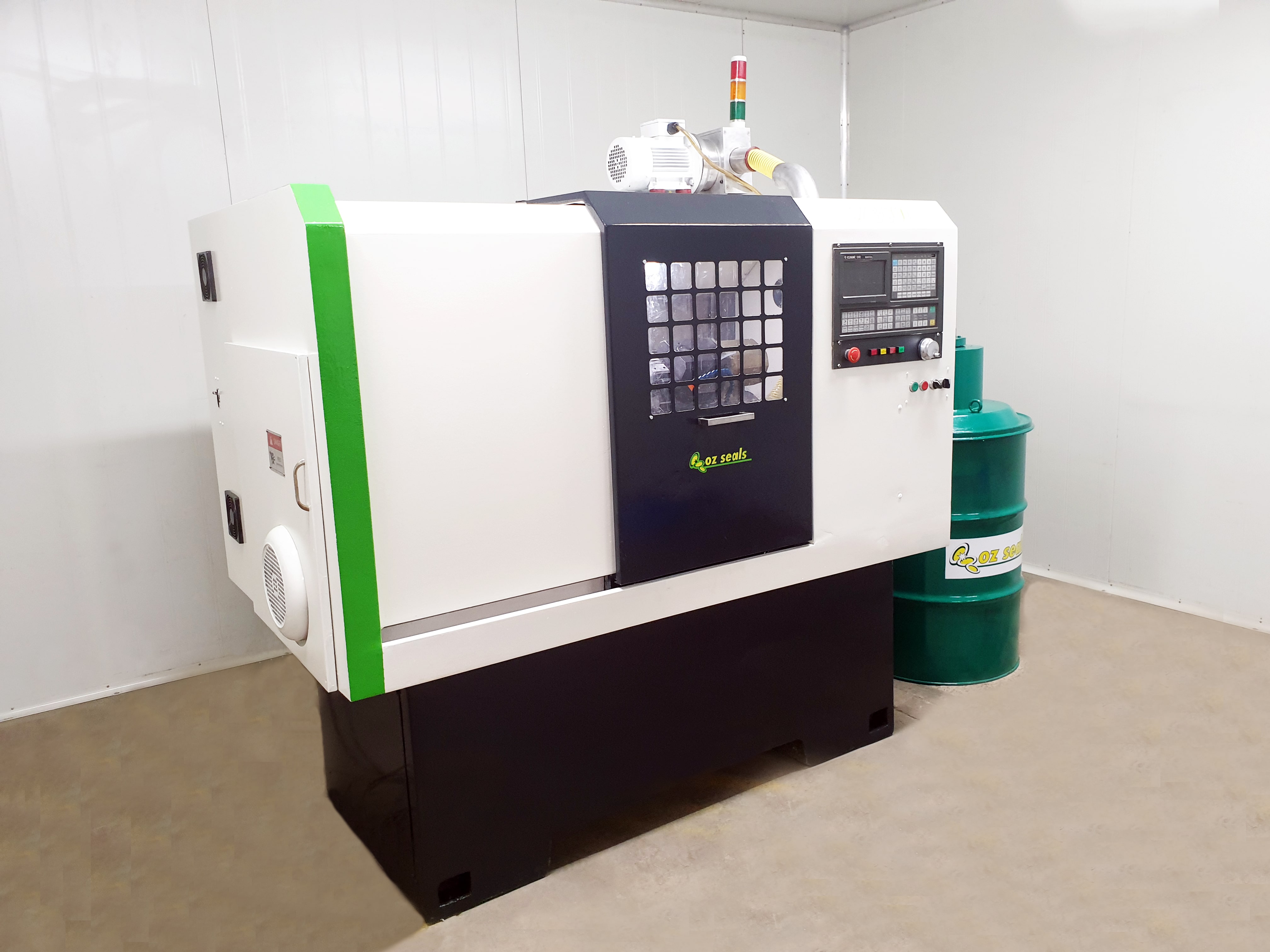

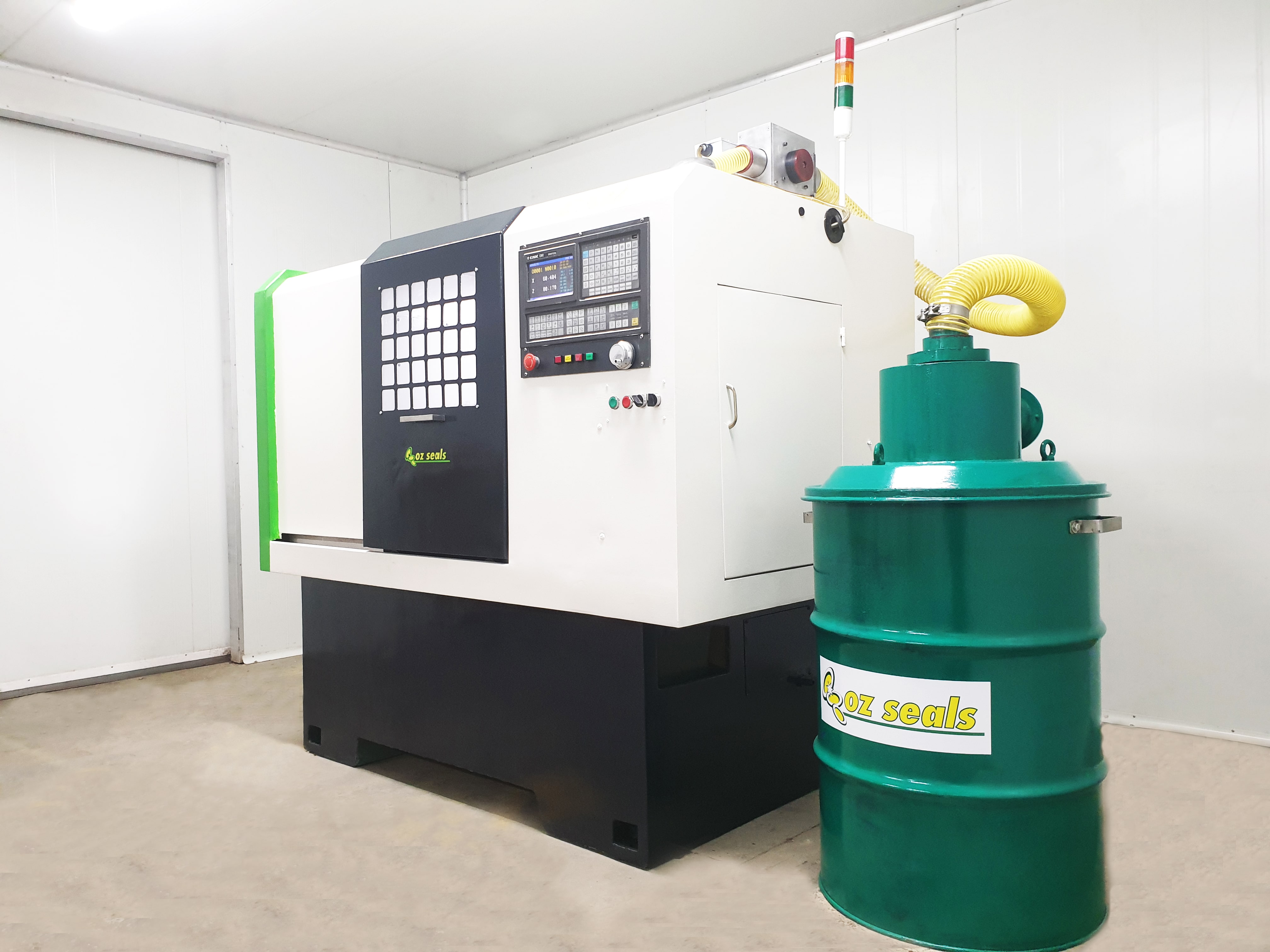

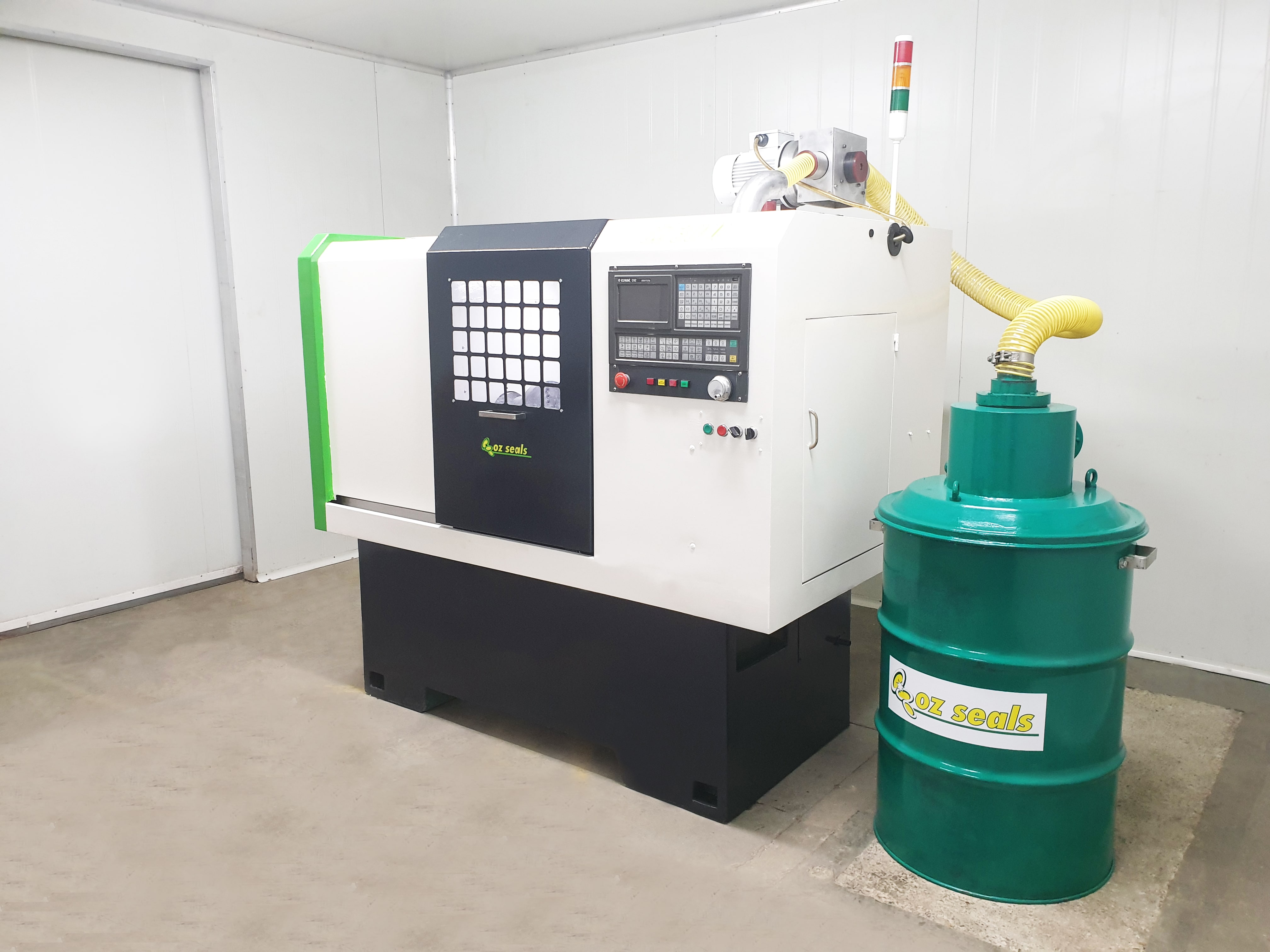

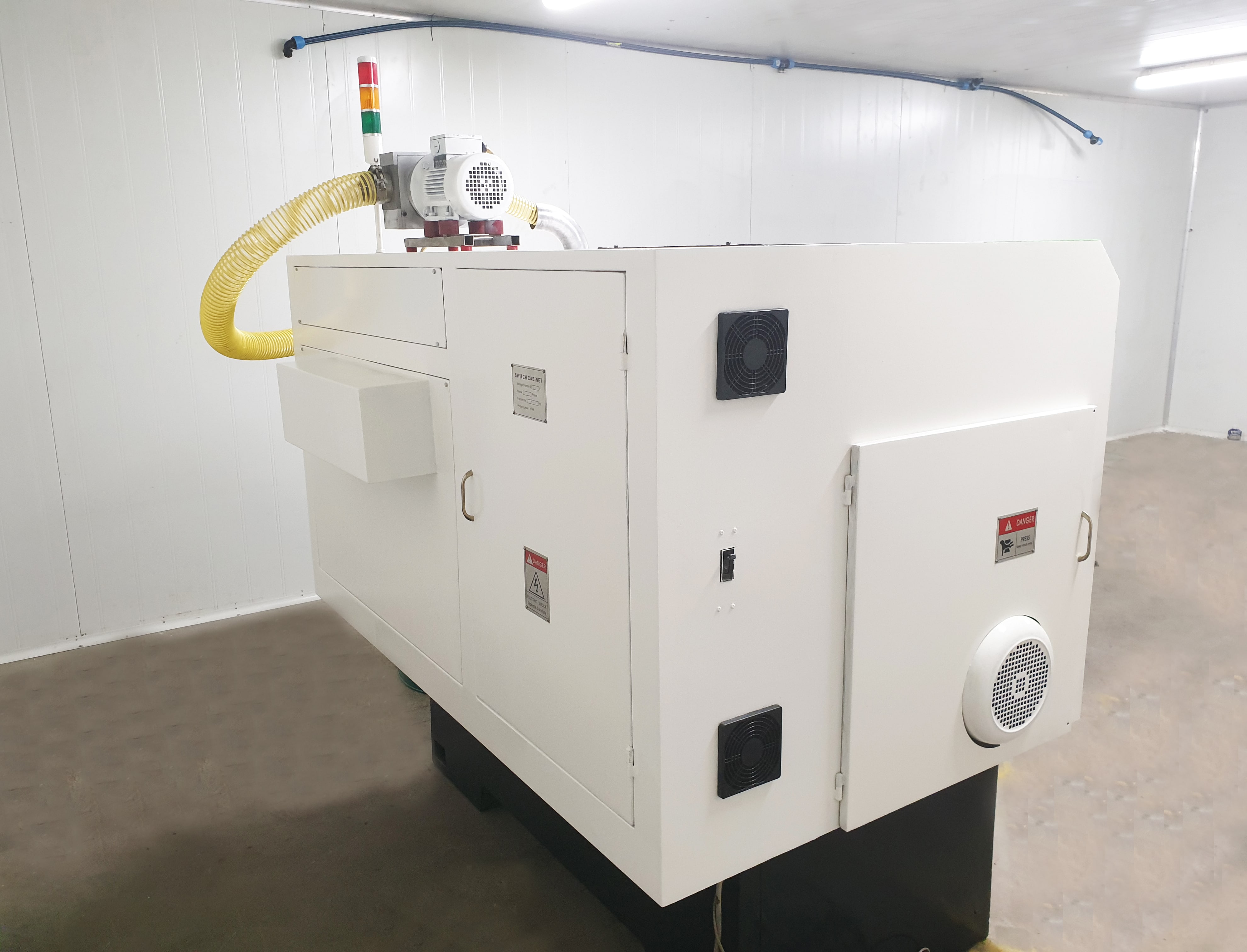

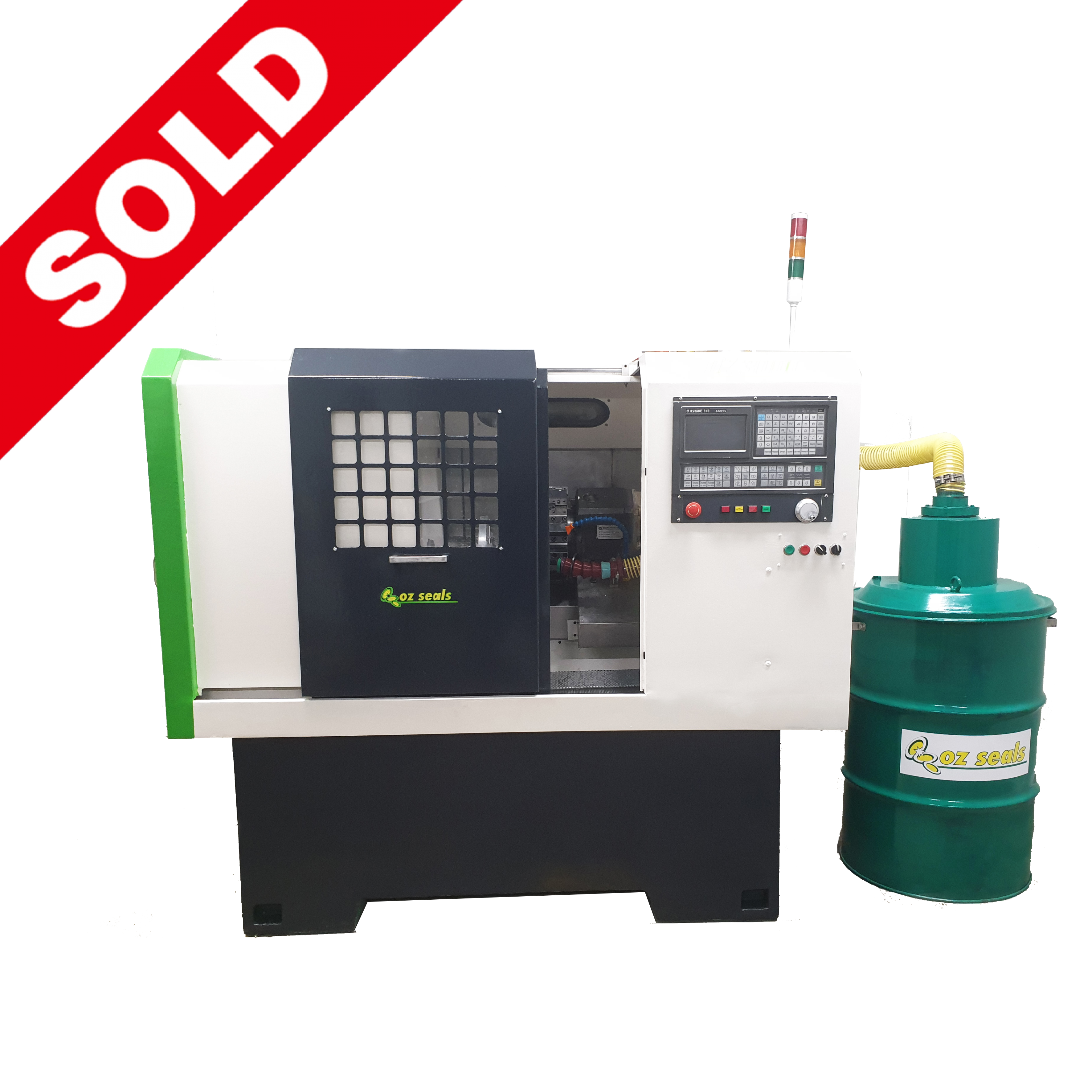

Oz 3000X

Features:

– Machining seals up to a diameter of 360mm
– Manufacture seals at high speeds of up to 3500rpm
– High rigidity, high speed, high precision
– 45° integral slant bed
– Uses the Servo motor on its spindle
– Fully equipped with swarf extraction system and toolbox
– CAD/CAM software developed exclusively by Oz Seals.

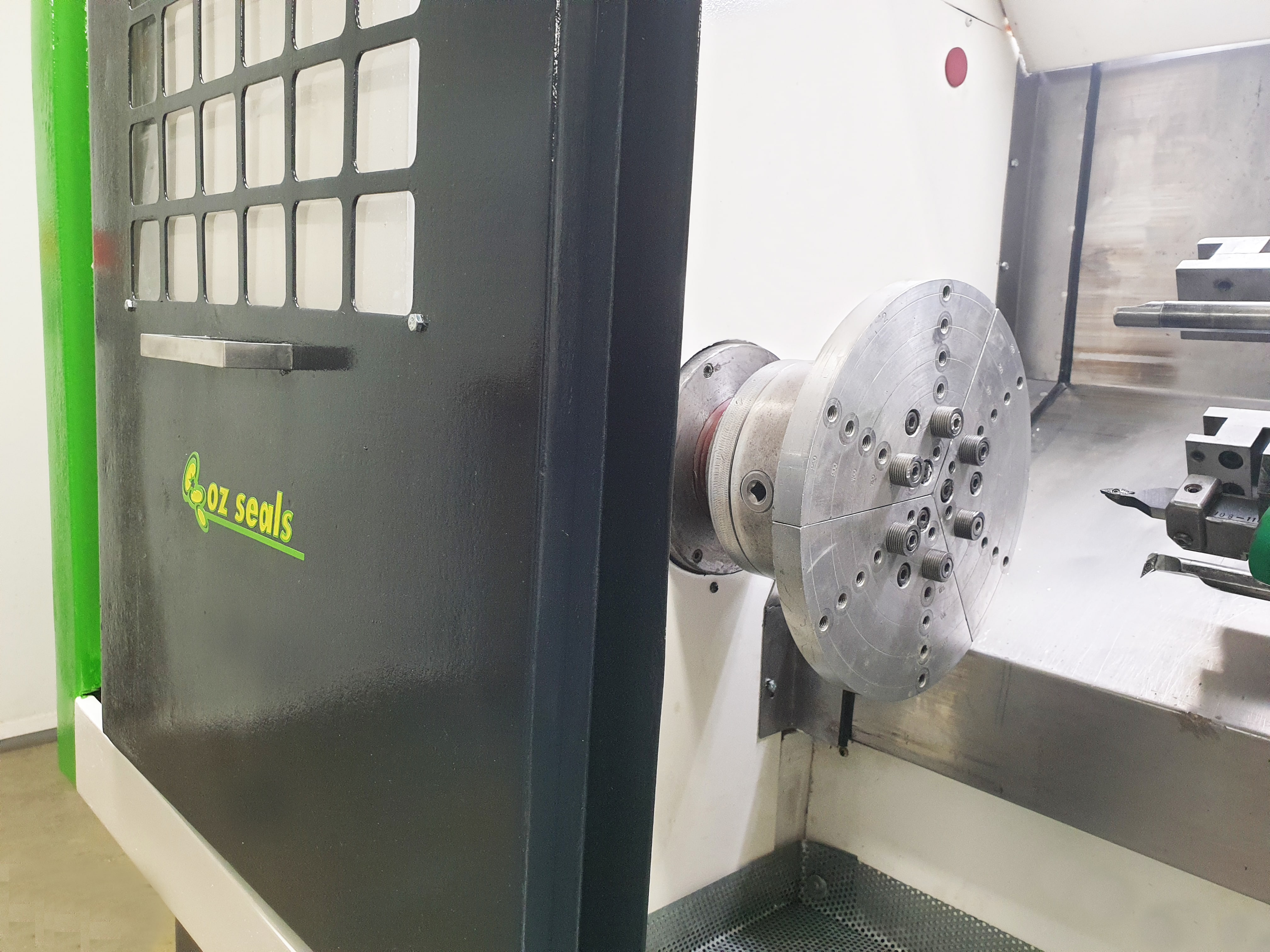

– Oz Seals aluminium adjustable clamping system

Complete seal manufacturing system includes:

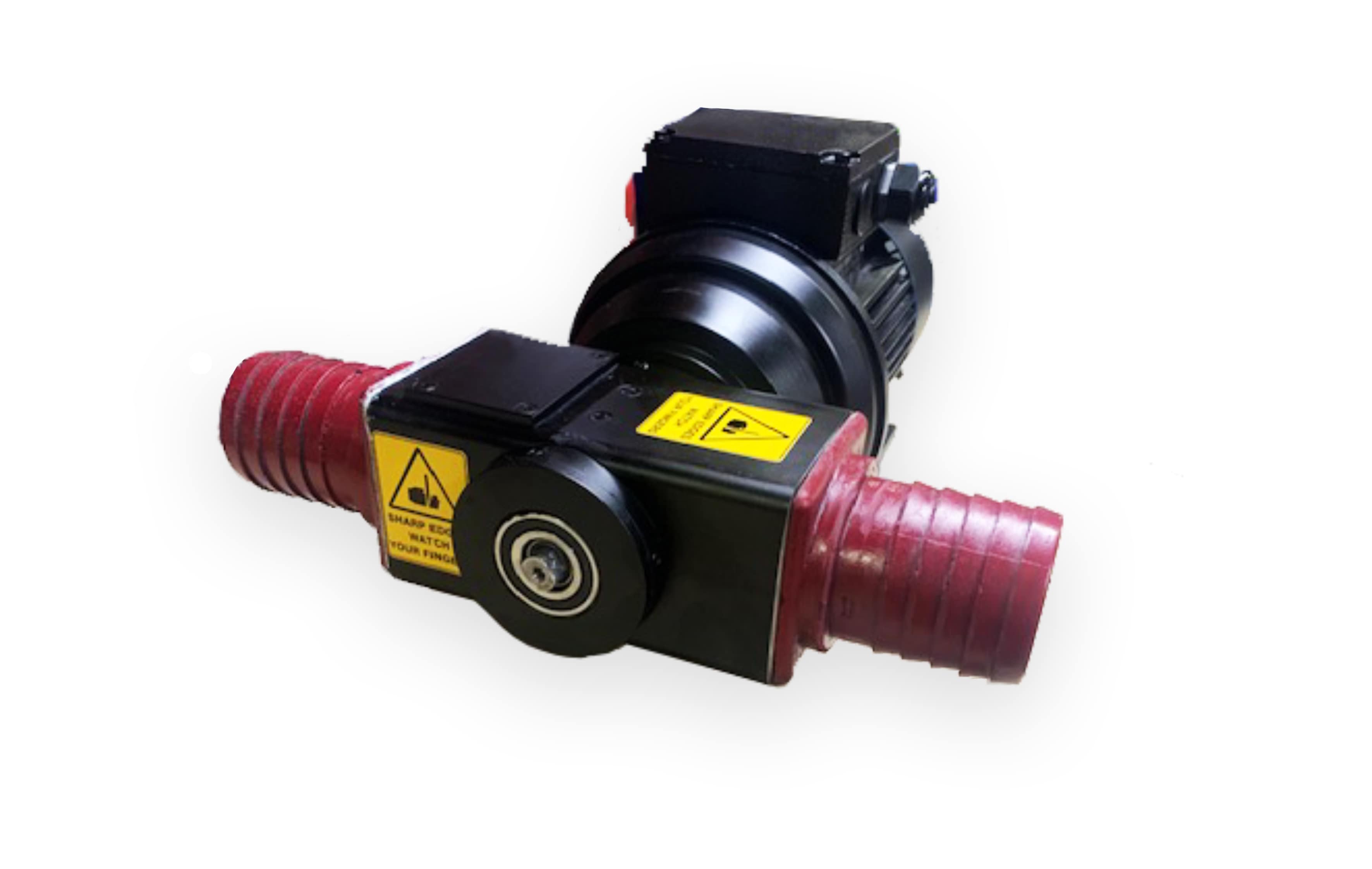

– Granulator
– Seal manufacturing software and hardware (over 250 profiles)

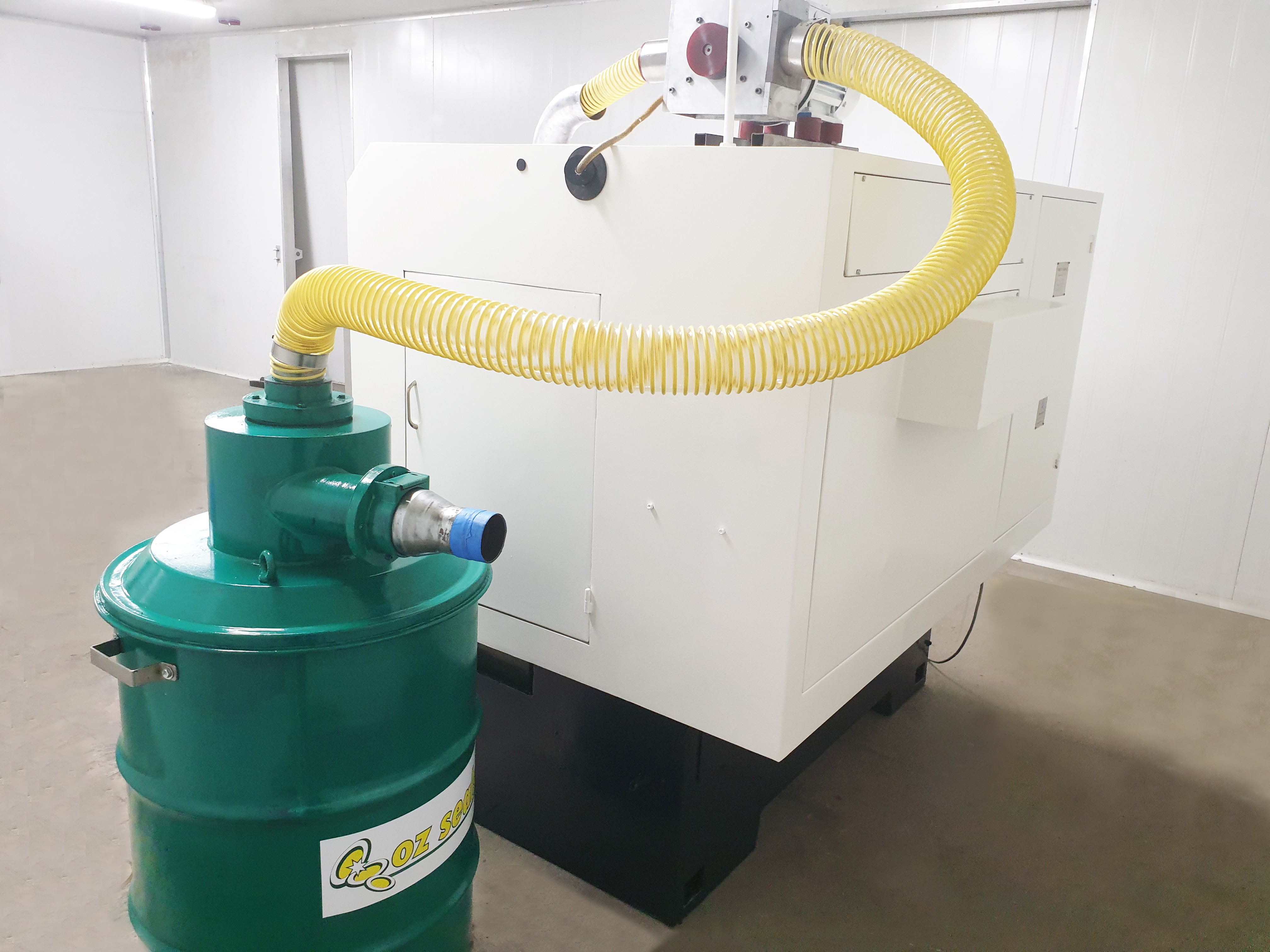

– Swarf extraction system with cyclon seperator
– Complete set of Toolbox (includes holders, cutting tools and spares)
– Freight, training and installation on site



OZ 3000X SPEC SHEET





2 Categories




Item Specification Unit Parameter
Capacity Max. swing dia. over bed mm Φ360
Max turning dia. mm 310
Spindle Spindle bore mm Φ56
Spindle type / A2-5
Spindle speed rpm 3500
Chuck size / 6″ manual chuck
Max. bar through dia. mm Φ44
Spindle motor power kw 5.5
X/Y/Z axis X/Z axis travel mm 360/350
X/Z axis rapid moving speed m/min 20
Tool turret Tool turret type / Servo 8 Stations
Toolshank size mm 20×20, Φ25
Others Machining roughness / Ra ≤ 0.8
Machining accuracy / IT6
X/Z axes repeated positioning accuracy mm 0.006/0.006
Overall size mm 1800x1600x1600
N.W. kg 1700




Item Brand
CNC controller GSK
Feeding driver & motor GSK
Spindle driver & motor GSK
Spindle unit Taiwan-LOSEN/KENTURN
Spindle encoder GERMANY-HEIDENHAIN
Servo powered tool turret GERMANY-SAUTER
Ball screw TAIWAN-PMI/HIWIN
Ball screw bearing Japan-NSK/TAIWAN-TPI
Linear guideway TAIWAN PMI/HIWIN
Lubrication system TAIWAN- ISHAN
Rotary oil cylinder & chuck TAIWAN-CH-H
Hydraulic parts Taiwan/Japan
Coolant pumps Joint venture
MPG USA-HEDSS
Tri-colour indication lamp KOREA-QLIGHT
Isolation transformer CHINA-top-CHINT/JIUKO
Breaker FRANCE-SCHNEIDER
AC Contactor FRANCE-SCHNEIDER
Relay JAPAN-OMRON
Dc switching mode power supply TAIWAN-MEANWELL
Terminal block GERMANY-WEIDMULLER
Synchronous belt USA-GATES
Synchronous belt wheel TAIWAN-PTP
Nuts TAIWAN-YINSH
Shaft coupling GERMANY-KTR/R+W
Extensible cover TAIWAN-WANHE
Chip conveyor & chip bucket TAIWAN-WANHE
Coolant pipe TAIWAN-WEIDING

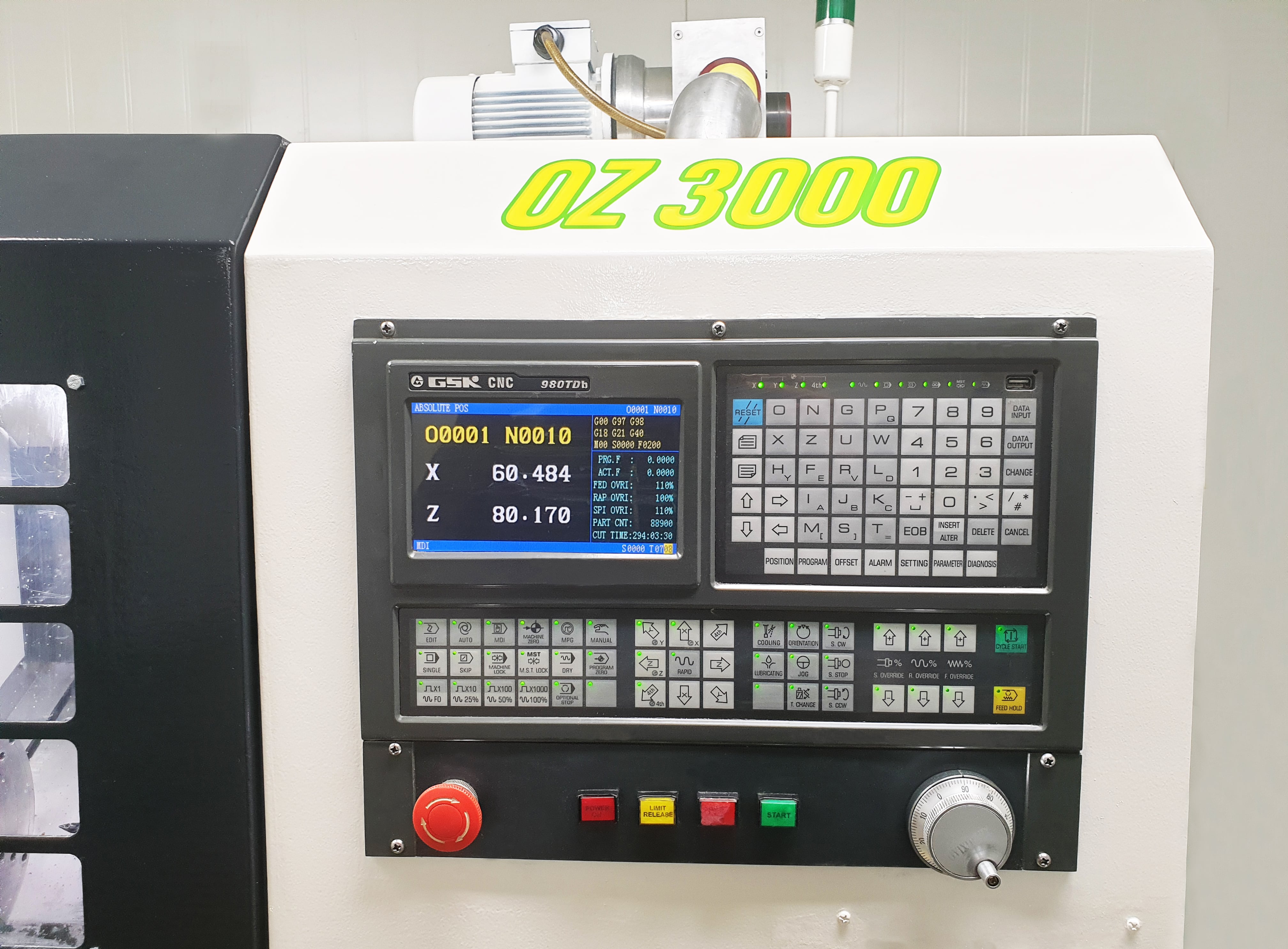

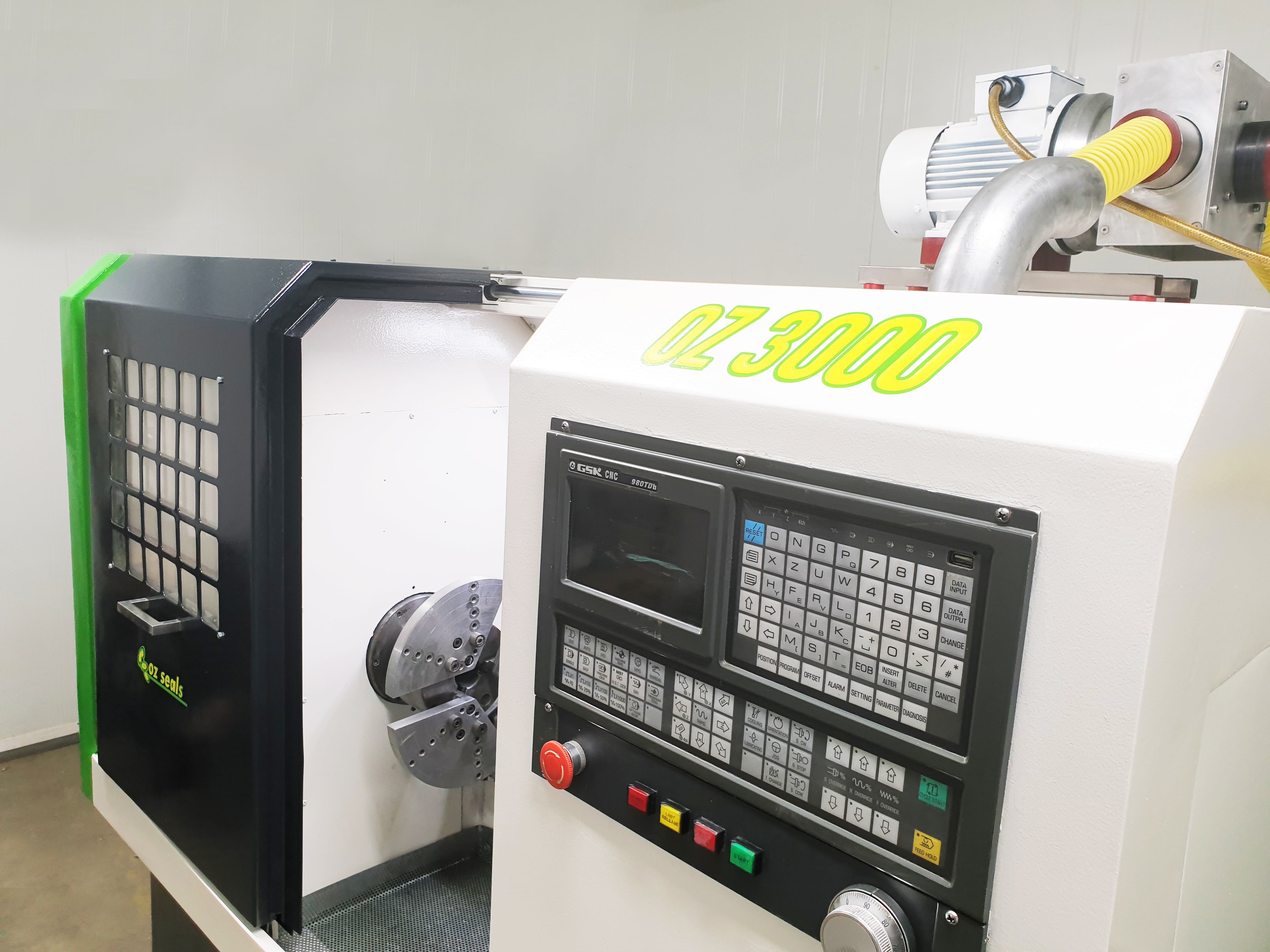

  • GSK, 980TDC, CNC controller
  • X/Z axis driver&motor: GSK servo
  • Spindle: ECO top brand Servo Motor&Driver 5.5kw, A2-5,bore:56mm
  • Manual chuck 5’’ with adjustable billet jaws
  • TAIWAN brand 8 station Electric tool turret
  • Automatical lubrication,Tri-color indication lamp, coolant system, working lamp, heat exchanger, pedal switch
  • Front door lock by sensor, side door lock by bolts (According to CE safety standard)

NOTE: As we are constantly upgrading and improving our machines, specifications are subject to change without notice.

Machines are custom configurable - please enquire for more details.
