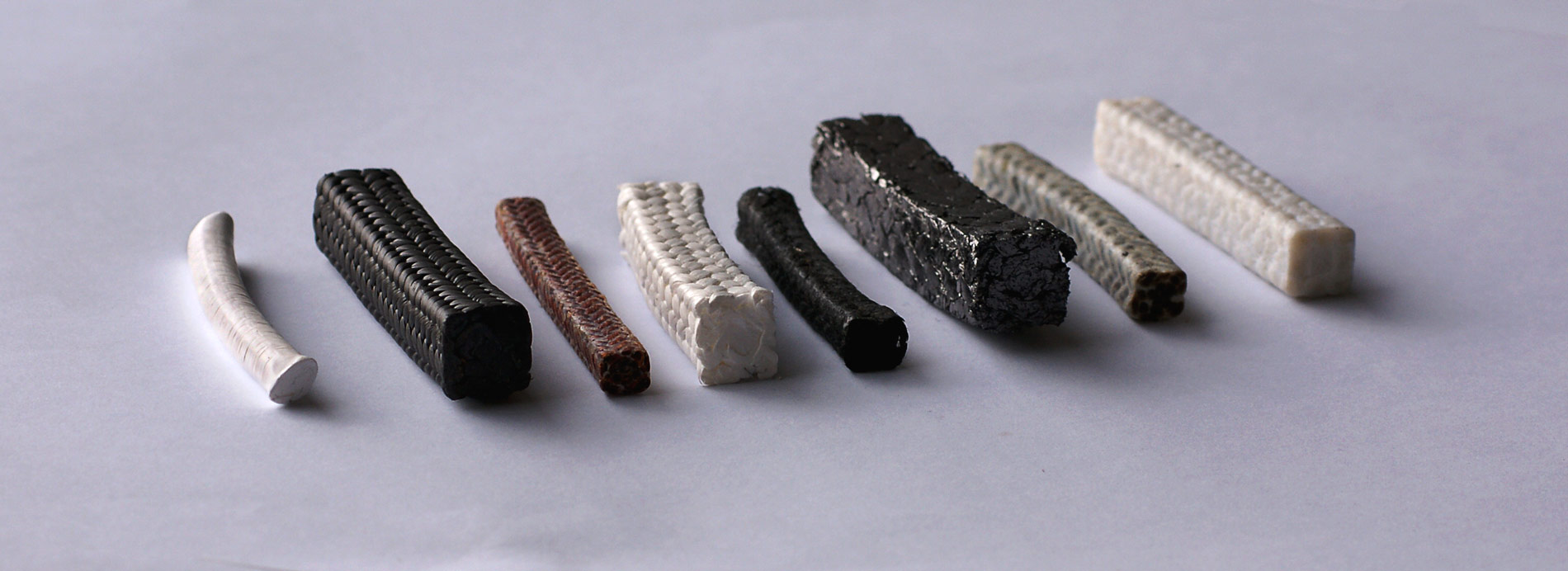

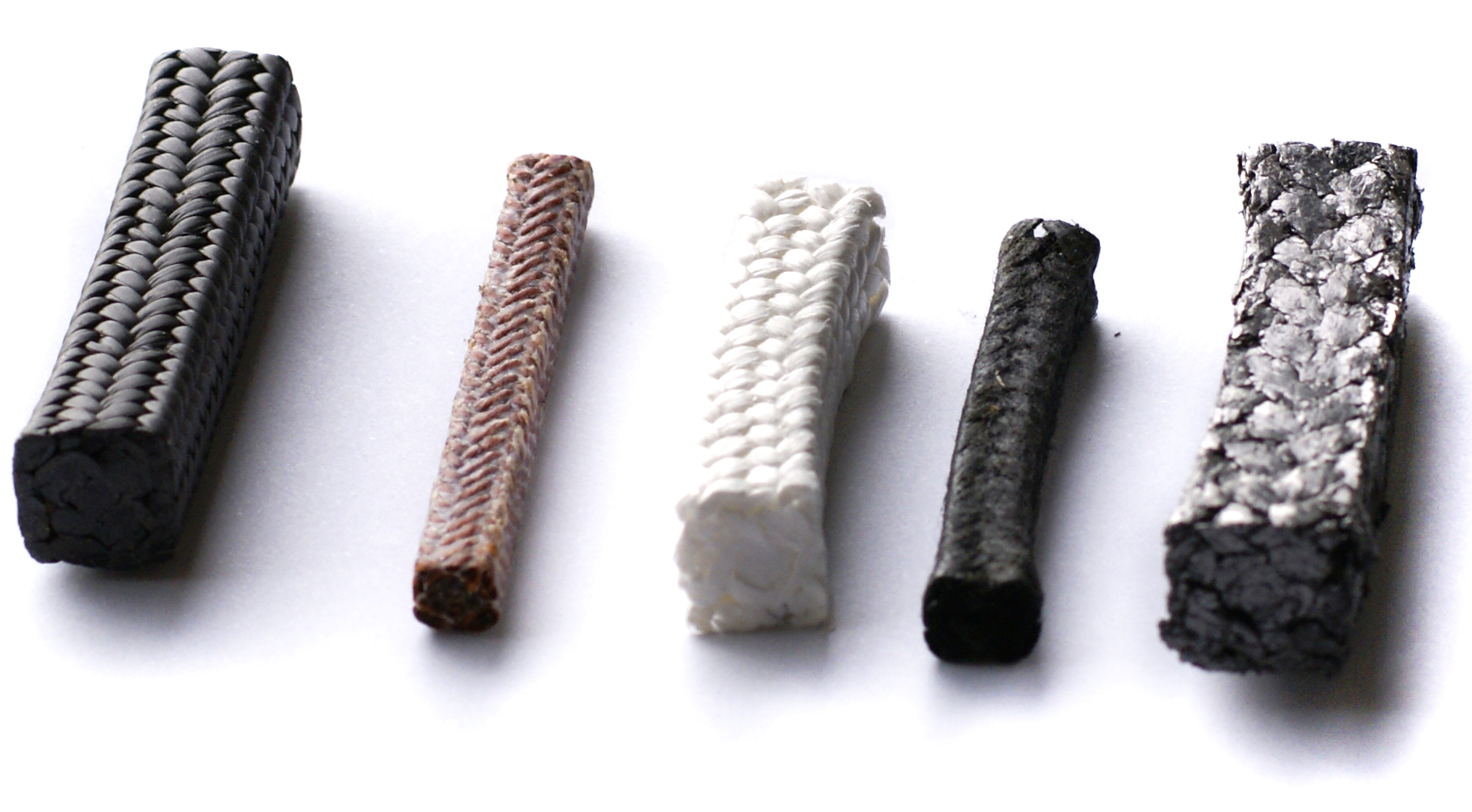

All Oz Seals New Generation Packings have been carefully selected to be asbestos-free, environmentally friendly and cover a large pH range of 0 – 14, ideal for acids and alkaline environments. They have the ability to withstand high temperatures, from minimum 200ËšC up to 650ËšC.
Shop NowPACKINGS

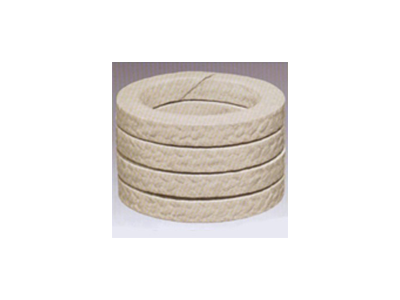

PV10
OPERATING PRESSURE
-
- Material: Impregnated and Lubricated PTFE packing
- pH: 5-11
- Temperature: 121°C
- Speed(FPM/MPS):1500 (7.5)
Features
- A low cost, quality packing giving outstanding service life. PV10 is braided natural ramie fibers which are extremely strong and therefore highly resistant

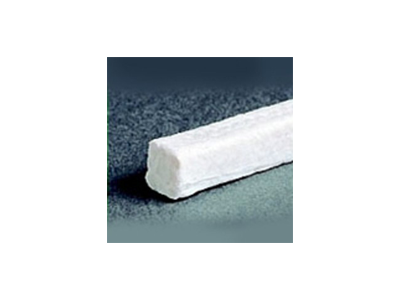

PV20
OPERATING PRESSURE
-
- Material: Pure Poly Acrylic Nitrile
- pH: 2-14
- Speed(FPM/MPS): 2200 (11)
- Temperature: 260°C
Features
- A true, high specification, process industry packing. The combination of an exceptional packing fibre with advanced lubrication, gives a clean, smooth running packing, for extended life even at high shaft speeds and pressures within a wide pH and temperature range.

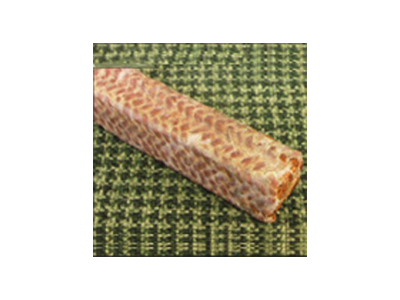

PV30
OPERATING PRESSURE
-
- Material: High performance synthetic fibre
- pH: 1-13
- Speed(FPM/MPS): 2400 (12)
- Temperature: 260°C
Features
- A high performance packing that is well suited to applications where graphite impregnation may not be acceptable.PV30 has very good mechanical properties combining softness and strength.

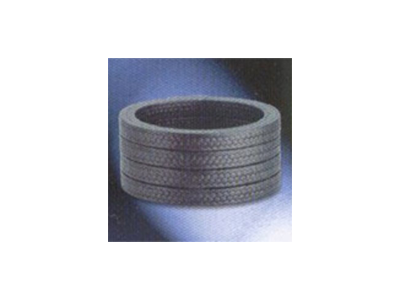

PV40
OPERATING PRESSURE
-
- Material: Gore GFO Fibre
- pH: 0-14
- Speed(FPM/MPS): 4400 (22)
- Temperature: 260°C
Features
- The PV40 is manufactured from 100% Oz Seals Type GFO fibre. This newly developed outstanding yarn is very similar in material construction to the original GORE GFO fibre and has been manufactured to optimize performance at an improved cost.

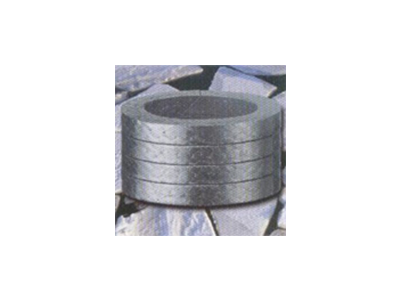

VP50
OPERATING PRESSURE
-
- Material: Graphite packing
- pH: 0-14
- Speed(FPM/MPS): 5000 psi/345 bar
- Temperature: 650°C
Features
- VP50 EX GRAPH is pure braided expanded graphite packing constructed from 100% Graphite yarns to form truly exceptional capabilities and performance.

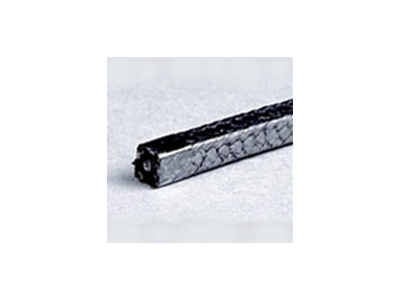

VP60
OPERATING PRESSURE
-
- Material: Expanded graphite | Graphite fibres
- pH: 0-14
- Speed(FPM/MPS): 5000 psi/350 bar
- Temperature: 650°C
Features
- VP60 combines and maximises the performance of expanded Graphite and Graphite fibres. Expanded Graphite is the ultimate valve sealing material, but it may extrude or deteriorate in more mechanically demanding rotary applications
VP70
OPERATING PRESSURE
-
- Material: Carbon yarns Impregnated with pure graphite
- pH: 0-14
- Speed(FPM/MPS): 4000 (20)
- Temperature: 450°C
Features
- Square braided from carbon yarns impregnated with pure graphite, special high temperature lubricant sand Molybdenum Disulphide. The carbon yarns are densely braided to provide a near frictionless, self-lubricating seal.

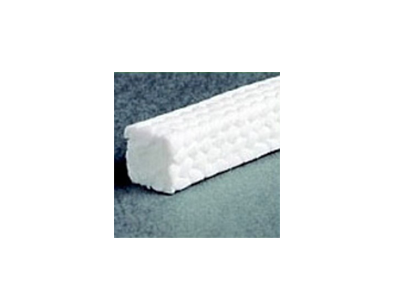

VP80
OPERATING PRESSURE
-
- Material: Vacuum Impregnated PTFE
- pH: 0-14
- Speed: 2500 psi/103 bar
- Temperature: 260°C
Features
- The PTFE yarns are further vacuum impregnated with PTFE dispersion to enable the packing to handle steam and gas services as well as liquids. This PTFE packing offers exceptional chemical resistance along with high strength and low coefficient of friction

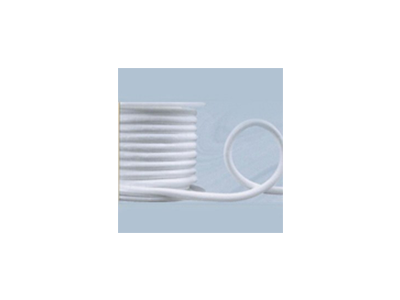

V90
OPERATING PRESSURE
-
- Material: PTFE Jointing Tape
- pH: 0-14
- Speed(FPM/MPS): 2500 psi/103 bar
- Temperature: 260°C
Features
- A non-toxic, non-contaminating PTFE jointing tape. It has a sticky back for ease of installation and removal which saves labour in cleaning and machining

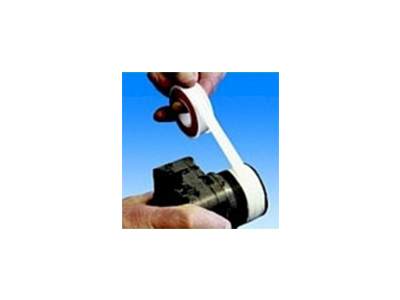

V100
OPERATING PRESSURE
-
- Material: Moldable dry PTFE thread sealing tap
- pH: 0-14
Features
- Gas Approval. Military Specification MIL-T-27730A.
- High density PTFE thread tape. This is a non expanded thick tape for all metals, plastics, glass.

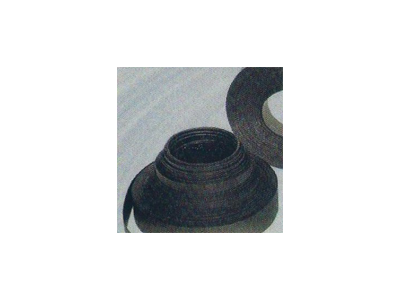

V110
OPERATING PRESSURE
-
- Material: Pure Graphite Tape
Features
- A corrugated or smooth formed pure graphite tape. Available with or without adhesive backing for ease if installation. V110 is able to conform to some stuffing box irregularities, ie, Overalling and stretching

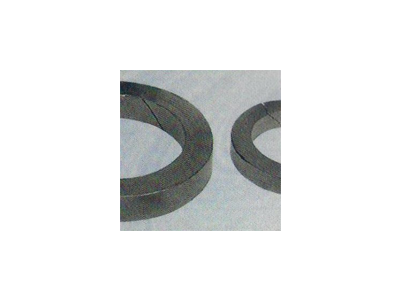

V120
OPERATING PRESSURE
-
- Material: Pre-formed Graphite Rings
Features
- V120 graphite moulded rings are high-efficiency, moulded graphite sealing rings, produced to precise density and size. V120 has outstanding sealing performance over long adjustment free periods

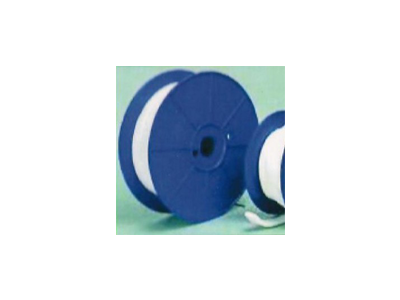

V130
OPERATING PRESSURE
-
- Material: PTFE Jointing Tape
- pH: 0-14
- Pressure: 150 bar
- Temperature: -240°C + 280°C in air
Features
- A non-toxic, non-contaminating PTFE jointing tape. It has a sticky back for ease of installation and removal which saves labour in cleaning and machining. It is tough but gentle making it useful in high pressure steam joints and fragile glass joints

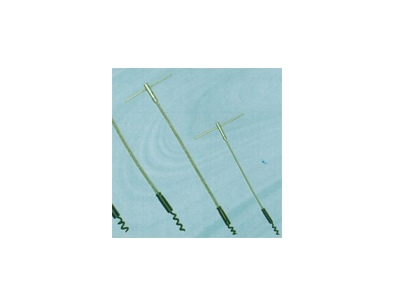

EXTRACTORS
Features
- These flexible extractors are designed to facilitate the removal of old packing of any size. The long flexible shank of the flextractors makes access easy, even to those glands in the most awkward positions. The hardened and tempered steel screw end is designed to give maximum penetration into the packing
