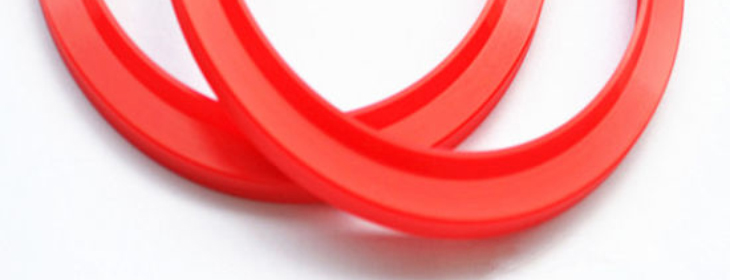

WIPER SEALS

All Oz Wiper Seals are very easily installed. With Oz Wiper Seals   situated at the top of the gland on the cylinder. It’s flexible nature enables you easily snap it into its housing position. The purpose is to prevent any environmental elements entering into the cylinder such as any dust, moisture or unwanted debri

which may come in contact with the shaft. Oz Wiper seals are the most understated seal being the first sealing element in contact with the shaft situated on the top of a hydraulic or pneumatic cylinder. View more info in the catalogue. For sizes and direct orders, visit Sealnet.

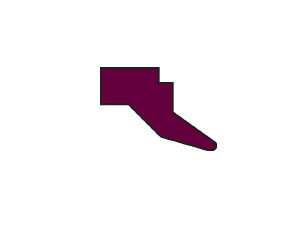

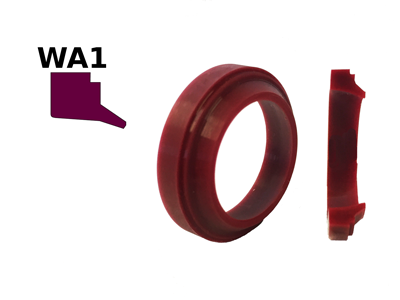

WA1

Material: ORSP / NBR / VITON
Speed: 4 m/s
Temperature: -30 to +110°C

Features+

  • WA1 Wiper Seal
  • Snap in wiper with flexible wiping lip

Application

  • Ideal for wiping off smaller particles and dust
  • Light to medium duty applications

Fluids

  • Mineral based oils, water/glycol and water emulsions

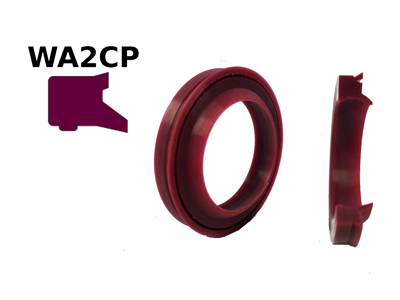

WA2CP

Material: ORSP / NBR / VITON
Speed: 4 m/s
Temperature: -30 to +110°C

Features+

  • WA2CP Wiper Seal
  • Snap in wiper with flexible wiping lip
  • Strong shorter protruding lip on static side

Application

  • Ideal for wiping off smaller particles and dust
  • Light to medium duty applications
  • Good static diameter sealing

Fluids

  • Mineral based oils, water/glycol and water emulsions

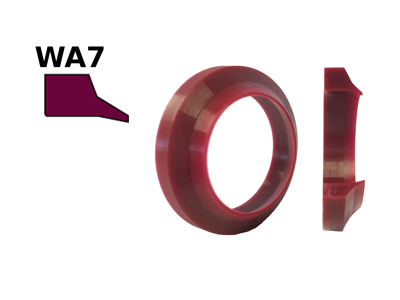

WA7

Material: ORSP / NBR / VITON
Speed: 4 m/s
Temperature: -30 to +110°C

Features+

  • WA7 Wiper Seal
  • Snap in wiper with flexible wiping lip
  • Secondary stabalising lip with pressure
  • Relieving grooves

Application

  • Ideal for wiping off smaller particles and dust
  •  Medium duty applications
  • Used in agriculture equipment

Fluids

  • Mineral based oils, water/glycol and water emulsions

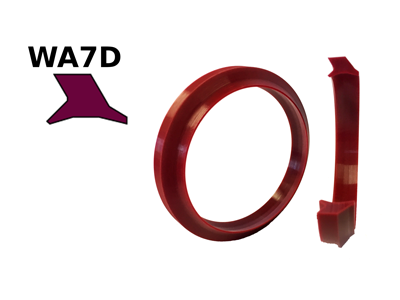

WA7D

Material: ORSP / NBR / VITON
Speed: 4 m/s
Temperature: -30 to +110°C

Features+

  • WA7D Wiper Seal
  • Snap in wiper with flexible wiping lip
  • Twin lip ensures dry rod sealing

Application

  • Ideal for wiping off smaller particles and dust
  • Light to medium duty applications
  • Used in agricultural equipment
  • Used in pneumatic equipment

Fluids

  • Mineral based oils, water/glycol and water emulsions

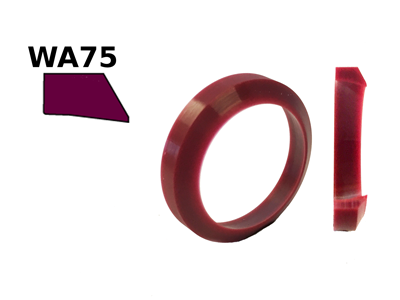

WA75

Material: ORSP / NBR / VITON
Speed: 4 m/s
Temperature: -30 to +110°C

Features+

  • WA75  Wiper Seal
  • Snap in wiper with flexible wiping lip to fit compact grooves

Application

  • Ideal for wiping off smaller particles and dust
  • Light duty applications

Fluids

  • Mineral based oils, water/glycol and water emulsions

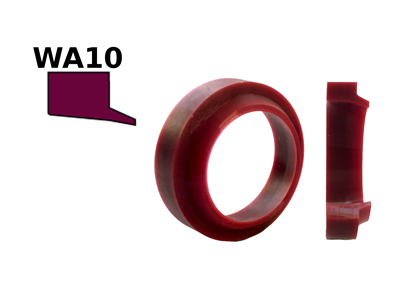

WA10

Material: ORSP / NBR / VITON
Speed: 4 m/s
Temperature: -30 to +110°C

Features+

  • WA10 Wiper Seal
  • General purpose wiper
  • The design has lip to remove lightly adhered dirt from rod
  • Design prevents dirt from passing the outside of the wiper
  • Reduces pumping action

Application

  • Effective seal on housing and rod

Fluids

  • Mineral based oils, water/glycol and water emulsions

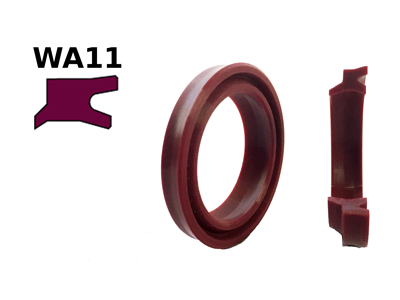

WA11

Material: ORSP / NBR / VITON
Speed: 4 m/s
Temperature: -30 to +110°C

Features+

  • WA11 Wiper Seal
  • Snaps into groove
  • Twin lip profile
  • Acts as secondary seal

Application

  • Ideal for wiping off smaller particles and dust
  • Used in pneumatic applications

Fluids

  • Mineral based oils, water/glycol and water emulsions

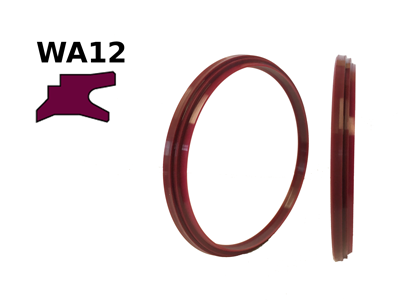

WA12

Material: ORSP / NBR / VITON
Speed: 4 m/s
Temperature: -30 to +110°C

Features+

  • WA12 Wiper Seal
  • Snaps into groove
  • Twin lip profile
  • Acts as secondary seal

Application

  • Ideal for wiping off smaller particles and dust
  • Used in pneumatic applications

Fluids

  • Mineral based oils, water/glycol and water emulsions

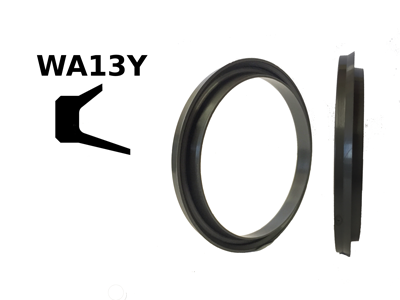

WA13Y

Material: ORSP / NBR / VITON
Speed: 4 m/s
Temperature: -30 to +110°C

Features+

  • WA13Y Wiper Seal
  • Nylon wiper scraper
  • Snaps into groove

Application

  • Ideal for scraping off dirt, ice and heavy sludge particles
  • Heavy duty applications

Fluids

  • Mineral based oils, water/glycol and water emulsions

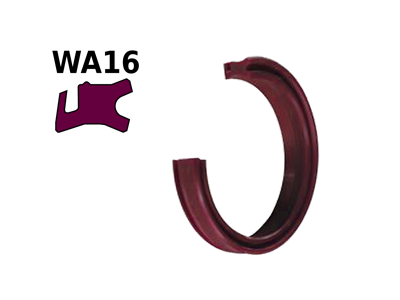

WA16

Material: ORSP / NBR / VITON
Speed: 4 m/s
Temperature: -30 to +110°C

Features+

  • WA16 Wiper Seal
  • Designed to exclude dirt and moisture from entering the cylinder
  • Collecting traces of fluid passing the rod seal

Application

  • Light to medium duty applications

Fluids

  • Mineral based oils, water/glycol and water emulsions

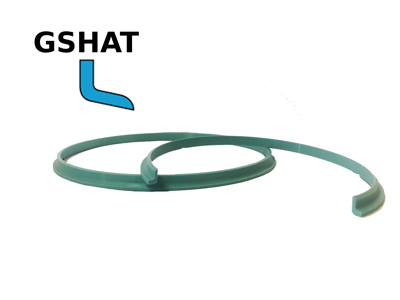

GSHAT

Material: ORSP / NBR / VITON
Speed: 4 m/s
Temperature: -30 to +110°C

Features+

  • GSHAT  Wiper Seal
  • Designed to be flexible for easy installation

Application

  • Ideal use for pneumatic applications
  • Light duty applications

Fluids

  • Mineral based oils, water/glycol and water emulsions

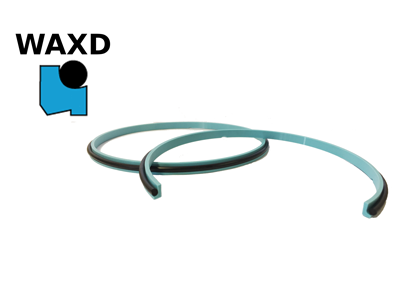

WAXD

Material: ORSP / NBR / VITON
Speed: 4 m/s
Temperature: -30 to +110°C

Features+

  • WAXD Wiper Seal
  • Double acting rod wiper
  • Designed to wipe the rod dry during extension
  • Exclude contaminants during retraction

Application

  • Light to medium duty applications

Fluids

  • Mineral based oils, water/glycol and water emulsions

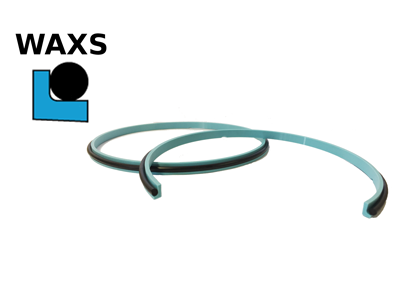

WAXS

Material: ORSP / NBR / VITON
Speed: 4 m/s
Temperature: -30 to +110°C

Features+

  • WAXS Wiper Seal
  • Designed to wipe the rod dry during extension
  • Exclude contaminants during retraction
  • Low friction – No stick slip
  • Protects primary seal from contamination

Application

  • Light to medium duty applications

Fluids

  • Mineral based oils, water/glycol and water emulsions

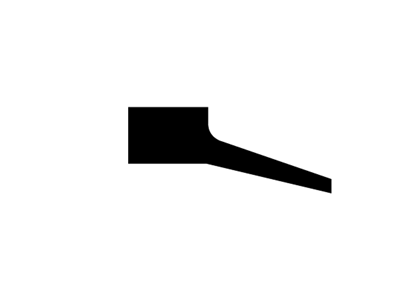

S

Material: ORSP / NBR / VITON
Speed: 4 m/s
Temperature: -30 to +110°C

Features+

  • S Wiper Seal
  • Snap in wiper with flexible wiping lip

Application

  • Ideal for wiping off smaller particles and dust
  • Medium duty applications

Fluids

  • Mineral based oils, water/glycol and water emulsions

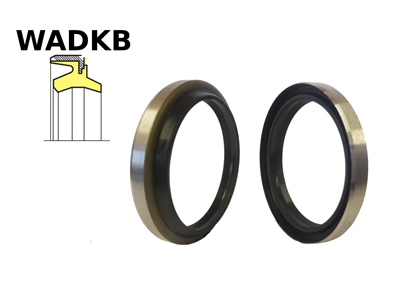

WADKB

Material:  MOTUF/ MONYTE/ TMCF
Speed: 4 m/s
Temperature: -30 to +100°C

Features+

  • WADKB Metal Cased Wiper Seal
  • Metal cased wiper with flexible wiping lip

Application

  • Medium to heavy duty applications
  • Ideal for dry rod applications
  • Fits JIS housing

Fluids

  • Mineral based oils, water/glycol and water emulsions

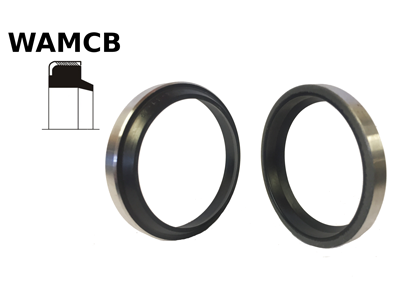

WAMCB

Material:  MOTUF/ MONYTE/ TMCF
Speed: 4 m/s
Temperature: -30 to +100°C

Features+

  • WAMCB Metal Cased Wiper Seal
  • Metal cased wiper with flexible wiping lip
  • Press fit into core bone

Application

  • Medium to heavy duty applications

Fluids

  • Mineral based oils, water/glycol and water emulsions

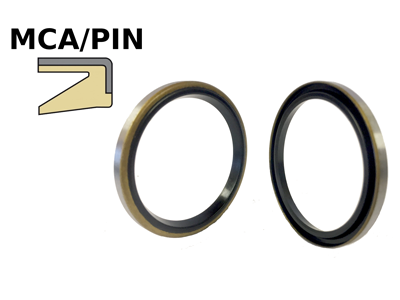

MCA/PIN

Material:  MOTUF/ MONYTE/ TMCF
Speed: 4 m/s
Temperature: -30 to +100°C

Features+

  • MCA/PIN Metal Cased Wiper Seal
  • Metal cased wiper with flexible wiping lip
  • Fits into counterbore
  • Tough wear resistant polyurethane

Application

  • Medium to heavy duty applications
  • Excellent for scraping off dirt and ice

Fluids

  • Mineral based oils, water/glycol and water emulsions
