All Oz Seals Single Acting Seals are designed for one directional pressure only. The gland single acting seal prevents pressure weather it be fluid or air from escaping out of the top of the cylinder. Single acting seals are available in numerous different profiles and sizes for different sealing applications.
Various materials are available for different fluids. Single Acting Seals can be found in many application such as earth moving equipment, hydraulic presses, vehicle hoist. For sizes and direct orders, visit Sealnet shop.
Shop Now
HOW TO MEASURE A SINGLE ACTING SEAL
GLAND SEALS
GS1
OPERATING PRESSURE
-
- METRIC
- Temperature: -45°C + 110°C
- Speed:1.0 m/sec
- Pressure:400 bar
- INCH
- Temperature: -50°F + 230°F
- Speed: 3.0 ft/sec
- Pressure:6000 psi
Features
- Excellent wear resistant
- Flexible for easy installation
- High resistance to extrusion
- Wide temperature range
- Low friction
Application
- Suitable for light to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
GS1P
OPERATING PRESSURE
- METRIC
- Temperature: -45°C + 110°C
- Speed:1.0 m/sec
- Pressure:400 bar
- INCH
- Temperature: -50°F + 230°F
- Speed: 3.0 ft/sec
- Pressure:6000 psi
Features
- Excellent wear resistant
- Flexible for easy installation
- High resistance to extrusion
- Wide temperature range
- Low friction
Application
- Suitable for light to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
GS1R
OPERATING PRESSURE
- METRIC
- Temperature: -45°C + 110°C
- Speed:1.0 m/sec
- Pressure:400 bar
- INCH
- Temperature: -50°F + 230°F
- Speed: 3.0 ft/sec
- Pressure:6000 psi
Features
- Excellent wear resistant
- Flexible for easy installation
- High resistance to extrusion
- Wide temperature range
- Low friction
- Improved sealing
- Increased seal stability
Application
- Suitable for light to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
GS2
OPERATING PRESSURE
- METRIC
- Temperature: -45°C + 110°C
- Speed:1.0 m/sec
- Pressure:700 bar
- INCH
- Temperature: -50°F + 230°F
- Speed: 3.0 ft/sec
- Pressure:10000 psi
Features
- Excellent wear resistant
- Flexible for easy installation
- High resistance to extrusion
- Wide temperature range
- Robust design
Application
- Suitable for medium to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions

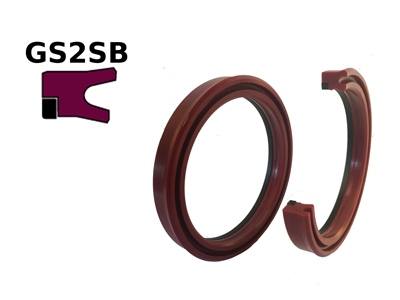

GS2SB
OPERATING PRESSURE
- METRIC
- Temperature: -45°C + 110°C
- Speed:1.0 m/sec
- Pressure:700 bar
- INCH
- Temperature: -50°F + 230°F
- Speed: 3.0 ft/sec
- Pressure:10000 psi
Features
- Excellent wear resistant
- Flexible for easy installation
- High resistance to extrusion
- Wide temperature range
- Robust design
Application
- Suitable for medium to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
GS3
OPERATING PRESSURE
- METRIC
- Temperature: -40°C + 110°C
- Speed:0.5 m/sec
- Pressure:350 bar
- INCH
- Temperature: -40°F + 230°F
- Speed: 1.5 ft/sec
- Pressure:5000 psi
Features
- Excellent resistance to abrasion
- Improves sealing
- Wide range of sizes
- Easy installation
- Compact housing
Application
- Suitable for light to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
GS4
OPERATING PRESSURE
- METRIC
- Temperature: -45°C + 110°C
- Speed:1.0 m/sec
- Pressure:700 bar
- INCH
- Temperature: -50°F + 230°F
- Speed: 3.0 ft/sec
- Pressure:10,000 psi
Features
- Shock load capability
- Responsive sealing
- High pressure
- Motuf/Monyt anti extrusion ring
Application
- Suitable for medium to heavy applications
Fluids
- Mineral based oils, water/glycol and water emulsions
GS4SB
OPERATING PRESSURE
- METRIC
- Temperature: -45°C + 110°C
- Speed:1.0 m/sec
- Pressure:700 bar
- INCH
- Temperature: -50°F + 230°F
- Speed: 3.0 ft/sec
- Pressure:10,000 psi
Features
- Shock load capability
- Responsive sealing
- High pressure
- Motuf/Monyt anti extrusion ring
Application
- Suitable for medium to heavy applications
Fluids
- Mineral based oils, water/glycol and water emulsions

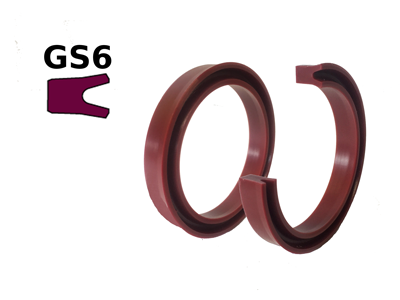

GS6
OPERATING PRESSURE
- METRIC
- Temperature: -45°C + 110°C
- Speed:1.0 m/sec
- Pressure:400 bar
- INCH
- Temperature: -50°F + 230°F
- Speed: 3.0 ft/sec
- Pressure:6000 psi
Features
- Excellent wear resistance
- Flexible for easy installation
- High resistance to extrusion
- Wide temperature range
- Low friction
Application
- Suitable for light to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
GS6M
OPERATING PRESSURE
- METRIC
- Temperature: -45°C + 110°C
- Speed:1.0 m/sec
- Pressure:400 bar
- INCH
- Temperature: -50°F + 230°F
- Speed: 3.0 ft/sec
- Pressure:6000 psi
Features
- Single acting seal
- Made from high performance polyurethane
- Excellent resistance to abrasion
- Ideal for bore misalignment
Application
- Suitable for light to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
GS6MP
OPERATING PRESSURE
- METRIC
- Temperature: -45°C + 110°C
- Speed:1.0 m/sec
- Pressure:400 bar
- INCH
- Temperature: -50°F + 230°F
- Speed: 3.0 ft/sec
- Pressure:6000 psi
Features
- Single acting seal
- Made from high performance polyurethane
- Excellent resistance to abrasion
- Ideal for bore misalignment
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
GS6P
OPERATING PRESSURE
- METRIC
- Temperature: -45°C + 110°C
- Speed:1.0 m/sec
- Pressure:400 bar
- INCH
- Temperature: -50°F + 230°F
- Speed: 3.0 ft/sec
- Pressure:6000 psi
Features
- Single acting seal
- Made from high performance polyurethane
- Excellent resistance to abrasion
- Ideal for bore misalignment
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
GS6PA
OPERATING PRESSURE
- METRIC
- Temperature: -45°C + 110°C
- Speed:1.0 m/sec
- Pressure:400 bar
- INCH
- Temperature: -50°F + 230°F
- Speed: 3.0 ft/sec
- Pressure:6000 psi
Features
- Single acting seal
- Made from high performance polyurethane
- Excellent resistance to abrasion
- Ideal for bore misalignment
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions

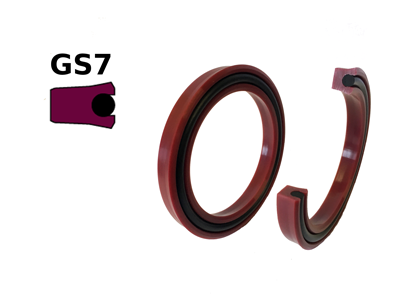

GS7
OPERATING PRESSURE
- METRIC
- Temperature: -40°C + 110°C
- Speed: 0.5 m/sec
- Pressure:350 bar
- INCH
- Temperature: -40°F + 230°F
- Speed: 1.5 ft/sec
- Pressure:5000 psi
Features
- Excellent resistance to abrasion
- Improves sealing
- Wide range of sizes
- Easy installation
- Compact housing
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
GS7B
OPERATING PRESSURE
- METRIC
- Temperature: -40°C + 110°C
- Speed: 0.5 m/sec
- Pressure:350 bar
- INCH
- Temperature: -40°F + 230°F
- Speed: 1.5 ft/sec
- Pressure:5000 psi
Features
- Excellent resistance to abrasion
- Improves sealing
- Wide range of sizes
- Easy installation
- Compact housing
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
GS8
OPERATING PRESSURE
- METRIC
- Temperature: -45°C + 110°C
- Pressure:600 bar
- INCH
- Temperature: -50°F + 230°F
- Pressure:85000 psi
Features
- High wear resistance
- Easy installation
- Insensibility against shock loads ans pressure peaks
- Easy installation
- Compact housing
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
GS8B
OPERATING PRESSURE
- METRIC
- Temperature: -45°C + 110°C
- Pressure:600 bar
- INCH
- Temperature: -50°F + 230°F
- Pressure:8500 psi
Features
- High wear resistance
- Easy installation
- Insensibility against shock loads ans pressure peaks
- Easy installation
- Compact housing
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions

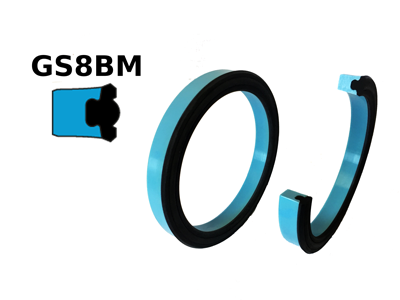

GS8BM
OPERATING PRESSURE
- METRIC
- Temperature: -45°C + 110°C
- Speed: 1.0 m/sec
- Pressure:400 bar
- INCH
- Temperature: -50°F + 230°F
- Speed: 1.0 ft/sec
- Pressure:6000 psi
Features
- High wear resistance
- Easy installation
- Excellent resistance to abrasion
- Easy installation
- Symmetrical lips permit use in both rod and piston
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
GS9
OPERATING PRESSURE
- METRIC
- Temperature: -45°C + 110°C
- Speed: 1.0 m/sec
- Pressure:400 bar
- INCH
- Temperature: -50°F + 230°F
- Speed: 3.0 ft/sec
- Pressure:6000 psi
Features
- High extrusion resistance
- Easy installation
- Excellent resistance to abrasion
- Made of high performance polyurethane
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
GS9S
OPERATING PRESSURE
- METRIC
- Temperature: -30°C + 100°C
- Speed: 4.0 m/sec
- Pressure:300 bar
- INCH
- Temperature: -22°F + 212°F
- Speed: 12.0 ft/sec
- Pressure:4500 psi
Features
- Self relieving seal design
- Prevent pressure from trapping
- Simple groove design for easy installation
- Low friction – No stick slip
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
GS16
OPERATING PRESSURE
- METRIC
- Temperature: -30°C + 90°C
- Speed: 0.55 m/sec
- Pressure: 17 bar
- INCH
- Temperature: -22°F + 194°F
- Speed: 1.5 ft/sec
- Pressure:250 psi
Features
- High wear resistance
- Easy installation
- Responsive to low pressure fluctuations and has very low friction
- Comes in a wide range of sizes
Application
- Suitable for light duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
GS16P
OPERATING PRESSURE
- METRIC
- Temperature: -30°C + 90°C
- Speed: 0.55 m/sec
- Pressure: 17 bar
- INCH
- Temperature: -22°F + 194°F
- Speed: 1.5 ft/sec
- Pressure:250 psi
Features
- High wear resistance
- Flexible for easy installation
- Responsive to low pressure fluctuations and has very low friction
- Comes in a wide range of sizes
Application
- Suitable for light duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions

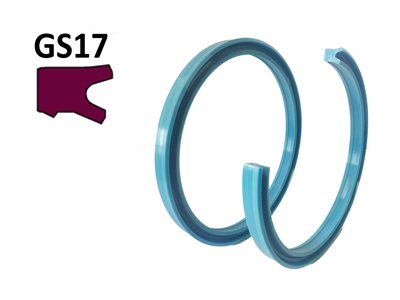

GS17
OPERATING PRESSURE
- METRIC
- Temperature: -45°C + 1100°C
- Speed: 1.0 m/sec
- Pressure: 400 bar
- INCH
- Temperature: -50°F + 230°F
- Speed: 3.0 ft/sec
- Pressure:6000 psi
Features
- Asymmetric seal offering superlative dry rod sealing
- Low friction
- Excellent resistance to abrasion
- Comes in a wide range of sizes
Application
- Suitable for light to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
GS18
OPERATING PRESSURE
- METRIC
- Temperature: -40°C + 110°C
- Speed: 0.5 m/sec
- Pressure: 350 bar
- INCH
- Temperature: -40°F + 230°F
- Speed: 1.5 ft/sec
- Pressure: 5000 psi
Features
- High wear resistance
- Easy installation
- Responsive to low pressure fluctuations and has very low friction
- Comes in a wide range of sizes
Application
- Suitable for light duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
GS19
OPERATING PRESSURE
-
- METRIC
- Temperature: -100°C + 260°C
- Speed: 2 m/sec
- Pressure: 15 MPa-25 MPa
Features
- Low friction coefficient
- Excellent abrasion resistance
- Wide temperature range
- Suitable for static, rotating and oscillatory systems
Application
- Suitable for light to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
GS19H
OPERATING PRESSURE
- METRIC
- Temperature: -40°C + 110°C
- Speed: 0.5 m/sec
- Pressure: 350 bar
- INCH
- Temperature: -40°F + 230°F
- Speed: 1.5 ft/sec
- Pressure:5000 psi
Features
- Compact housing
- Improves sealing
- Excellent resistance to abrasion
- Comes in a wide range of sizes
Application
- Suitable for light to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
GS21
OPERATING PRESSURE
- METRIC
- Temperature: -40°C + 110°C
- Speed: 0.5 m/sec
- Pressure: 350 bar
- INCH
- Temperature: -40°F + 230°F
- Speed: 1.5 ft/sec
- Pressure:5000 psi
Features
- Excellent resistance to abrasion
- Improves sealing
- Compact housing
- Comes in a wide range of sizes
Application
- Suitable for light duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
GS22
OPERATING PRESSURE
- METRIC
- Temperature: -40°C + 110°C
- Speed: 0.5 m/sec
- Pressure: 350 bar
- INCH
- Temperature: -40°F + 230°F
- Speed: 1.5 ft/sec
- Pressure:5000 psi
Features
- Excellent resistance to abrasion
- Improves sealing
- Compact housing
- Comes in a wide range of sizes
Application
- Suitable for light duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
GS23
OPERATING PRESSURE
- METRIC
- Temperature: -40°C + 110°C
- Speed: 0.5 m/sec
- Pressure: 350 bar
- INCH
- Temperature: -40°F + 230°F
- Speed: 1.5 ft/sec
- Pressure:5000 psi
Features
- Excellent resistance to abrasion
- Improves sealing
- Compact housing
- Comes in a wide range of sizes
Application
- Suitable for light duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions

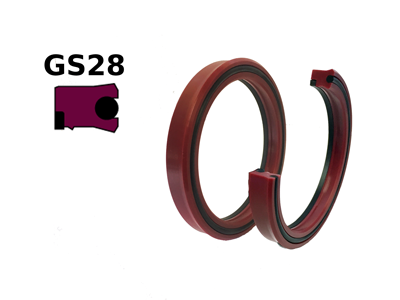

GS28
OPERATING PRESSURE
- METRIC
- Temperature: -40°C + 110°C
- Speed: 0.5 m/sec
- Pressure: 350 bar
- INCH
- Temperature: -40°F + 230°F
- Speed: 1.5 ft/sec
- Pressure:5000 psi
Features
- Excellent resistance to abrasion
- Improves sealing
- Compact housing
- Lower friction
- Easy installation
- Increased seal stability
Application
- Suitable for light duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
GS33
OPERATING PRESSURE
- METRIC
- Temperature: -40°C + 110°C
- Speed: 0.5 m/sec
- Pressure: 350 bar
- INCH
- Temperature: -40°F + 230°F
- Speed: 1.5 ft/sec
- Pressure:5000 psi
Features
- Excellent resistance to abrasion
- Improves sealing
- Compact housing
- Lower friction
- Easy installation
Application
- Suitable for light to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
GS37
OPERATING PRESSURE
- METRIC
- Temperature: -30°C + 100°C
- Speed: 0.8 m/sec
- Pressure: 600 bar
- INCH
- Temperature: -22°F + 212°F
- Speed: 2.4 ft/sec
- Pressure:9000 psi
Features
- High load capability
- Pressure activation grooves
- Effective seal for extreme applications
Application
- Suitable for heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
GS38
OPERATING PRESSURE
- METRIC
- Temperature: -45°C + 110°C
- Speed: 1.0 m/sec
- Pressure: 700 bar
- INCH
- Temperature: -50°F + 230°F
- Speed: 3.0 ft/sec
- Pressure:10,000 psi
Features
- Prevents inter seal pressure build up
- Easy installation
- Long life seal
- Excellent temperature range
Application
- Suitable for light to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
GS39
OPERATING PRESSURE
- METRIC
- Temperature: -45°C + 110°C
- Speed: 1.0 m/sec
- Pressure: 700 bar
- INCH
- Temperature: -50°F + 230°F
- Speed: 3.0 ft/sec
- Pressure:10,000 psi
Features
- Prevents inter seal pressure build up
- Easy installation
- Long life seal
- Excellent temperature range
Application
- Suitable for light to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
GSHAT
OPERATING PRESSURE
- METRIC
- Temperature: -30°C + 90°C
- Speed: 0.55 m/sec
- Pressure: 17 bar
- INCH
- Temperature: -22°F + 194°F
- Speed: 1.5 ft/sec
- Pressure:250 psi
Features
- Cup seal design for use in either single or double acting applications
- Flexible for easy installation
- Long life seal
- Wear and friction are kept to a minimum because of the ability to retain lubricant in the seal area
- Excellent temperature range
Application
- Suitable for light duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
GSHATC
OPERATING PRESSURE
- METRIC
- Temperature: -30°C + 90°C
- Speed: 0.55 m/sec
- Pressure: 17 bar
- INCH
- Temperature: -22°F + 194°F
- Speed: 1.5 ft/sec
- Pressure:250 psi
Features
- Cup seal design for use in either single or double acting applications
- Flexible for easy installation
- Long life seal
- Wear and friction are kept to a minimum because of the ability to retain lubricant in the seal area
- Excellent temperature range
Application
- Suitable for light duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PISTON SEALS

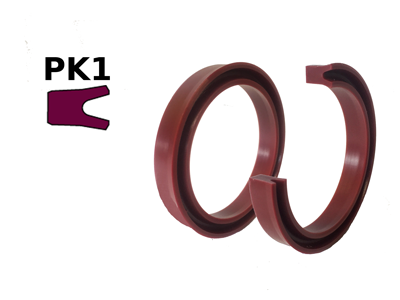

PK1
OPERATING PRESSURE
-
- METRIC
- Temperature: -45°C + 110°C
- Speed: 1.0 m/sec
- Pressure: 400 bar
- INCH
- Temperature: -50°F + 230°F
- Speed: 3.0 ft/sec
- Pressure:6000 psi
Features
- Flexible for easy installation
- Asymmetric seal offering superlative dry rod sealing
- Long life seal
- Come in a wide range materials and sizes
Application
- Suitable for light to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PK1B
OPERATING PRESSURE
-
- METRIC
- Temperature: -45°C + 110°C
- Speed: 1.0 m/sec
- Pressure: 400 bar
- INCH
- Temperature: -50°F + 230°F
- Speed: 3.0 ft/sec
- Pressure:6000 psi
Features
- Twin lip seal design
- Lower friction
- Improved sealing
- Primary lip protection
- Increased seal stability
- Easy installation
Application
- Suitable for light to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PK1P
OPERATING PRESSURE
-
- METRIC
- Temperature: -45°C + 110°C
- Speed: 1.0 m/sec
- Pressure: 400 bar
- INCH
- Temperature: -50°F + 230°F
- Speed: 3.0 ft/sec
- Pressure:6000 psi
Features
- Excellent wear resistance
- Flexible for easy installation
- High resistance to extrusion
- Wide temperature range
- Low friction
Application
- Suitable for light to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PK2
OPERATING PRESSURE
-
- METRIC
- Temperature: -45°C + 110°C
- Speed: 1.0 m/sec
- Pressure: 700 bar
- INCH
- Temperature: -50°F + 230°F
- Speed: 3.0 ft/sec
- Pressure:10,000 psi
Features
- Excellent wear resistance
- Flexible for easy installation
- High resistance to extrusion
- Wide temperature range
- Robust seal design
Application
- Suitable for medium to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PK2SB
OPERATING PRESSURE
-
- METRIC
- Temperature: -45°C + 110°C
- Speed: 1.0 m/sec
- Pressure: 700 bar
- INCH
- Temperature: -50°F + 230°F
- Speed: 3.0 ft/sec
- Pressure:10,000 psi
Features
- Excellent wear resistance
- Flexible for easy installation
- High resistance to extrusion
- Wide temperature range
- Robust seal design
Application
- Suitable for medium to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PK3
OPERATING PRESSURE
-
- METRIC
- Temperature: -45°C + 110°C
- Speed: 1.0 m/sec
- Pressure: 400 bar
- INCH
- Temperature: -50°F + 230°F
- Speed: 3.0 ft/sec
- Pressure:6000 psi
Features
- Improved sealing
- Made of high performance polyurethane
- Excellent resistance to abrasion
- Flexible for easy installation
- Complete lip actuation
Application
- Suitable for light to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PK4
OPERATING PRESSURE
-
- METRIC
- Temperature: -45°C + 110°C
- Speed: 1.0 m/sec
- Pressure: 400 bar
- INCH
- Temperature: -50°F + 230°F
- Speed: 3.0 ft/sec
- Pressure:6000 psi
Features
- Improved sealing
- Made og high performance polyurethane
- Excellent resistance to abrasion
- Easy installation
- Complete lip actuation
Application
- Suitable forlight to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PK4SB
OPERATING PRESSURE
-
- METRIC
- Temperature: -45°C + 110°C
- Speed: 1.0 m/sec
- Pressure: 400 bar
- INCH
- Temperature: -50°F + 230°F
- Speed: 3.0 ft/sec
- Pressure:6000 psi
Features
- Improved sealing
- Made of high performance polyurethane
- Excellent resistance to abrasion
- Flexible for easy installation
- Complete lip actuation
Application
- Suitable for light to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PK6
OPERATING PRESSURE
-
- METRIC
- Temperature: -45°C + 110°C
- Speed: 1.0 m/sec
- Pressure: 400 bar
- INCH
- Temperature: -50°F + 230°F
- Speed: 3.0 ft/sec
- Pressure:6000 psi
Features
- Asymmetric seal offering superlative dry rod sealing
- Flexible for easy installation
- Long life seal
- Comes in a wide range of sizes
Application
- Suitable for light to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PK6CP
OPERATING PRESSURE
-
- METRIC
- Temperature: -45°C + 110°C
- Speed: 1.0 m/sec
- Pressure: 400 bar
- INCH
- Temperature: -50°F + 230°F
- Speed: 3.0 ft/sec
- Pressure:6000 psi
Features
- Single acting seal
- Made of high performance polyurethane
- Excellence resistance to abrasion
- Ideal for bore misalignment
Application
- Suitable for heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PK6M
OPERATING PRESSURE
-
- METRIC
- Temperature: -45°C + 110°C
- Speed: 1.0 m/sec
- Pressure: 400 bar
- INCH
- Temperature: -50°F + 230°F
- Speed: 3.0 ft/sec
- Pressure:6000 psi
Features
- Single acting seal
- Made of high performance polyurethane
- Excellent resistance to abrasion
- Ideal for bore misalignment
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PK6PA
OPERATING PRESSURE
-
- METRIC
- Temperature: -45°C + 110°C
- Speed: 1.0 m/sec
- Pressure: 400 bar
- INCH
- Temperature: -50°F + 230°F
- Speed: 3.0 ft/sec
- Pressure:6000 psi
Features
- Single acting seal
- Made of high performance polyurethane
- Excellent resistance to abrasion
- Ideal for bore misalignment
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PK7
OPERATING PRESSURE
-
- METRIC
- Temperature: -45°C + 110°C
- Speed: 1.0 m/sec
- Pressure: 400 bar
- INCH
- Temperature: -50°F + 230°F
- Speed: 3.0 ft/sec
- Pressure:6000 psi
Features
- Improved sealing
- Made of high performance polyurethane
- Excellent resistance to abrasion
- Flexible for easy installation
- Complete lip actuation
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions

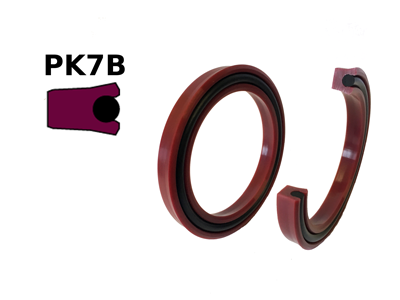

PK7B
OPERATING PRESSURE
-
- METRIC
- Temperature: -45°C + 110°C
- Speed: 1.0 m/sec
- Pressure: 400 bar
- INCH
- Temperature: -50°F + 230°F
- Speed: 3.0 ft/sec
- Pressure:6000 psi
Features
- Improved sealing
- Made of high performance polyurethane
- Excellent resistance to abrasion
- Flexible for easy installation
- Complete lip actuation
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PK8S
OPERATING PRESSURE
-
- METRIC
- Temperature: -30°C + 100°C
- Speed: 4.0 m/sec
- Pressure: 300 bar
- INCH
- Temperature: -22°F + 212°F
- Speed: 12.0 ft/sec
- Pressure:4500 psi
Features
- Improved sealing
- Low friction-no stick slip
- Simple groove design and installation
- Self relieving design prevents pressure tapping
Application
- Suitable for heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PK8SSE
OPERATING PRESSURE
-
- METRIC
- Temperature: -40°C + 110°C
- Speed: 1.0 m/sec
- Pressure: 350 bar
- INCH
- Temperature: -40°F + 230°F
- Speed: 3.0 ft/sec
- Pressure:5000 psi
Features
- Low break out and operating friction levels
- More tolerant to dirt and contamination
- Excellent wear resistance
- Operates on a wide range of surface finishes
Application
- Suitable for light to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PK16
OPERATING PRESSURE
-
- METRIC
- Temperature: -30°C + 90°C
- Speed: 1.0 m/sec
- Pressure: 17 bar
- INCH
- Temperature: -22°F + 194°F
- Speed: 1.5 ft/sec
- Pressure:250 psi
Features
- Ideal for pneumatic applications
- Flexible for easy installation
- Responsive to low pressure fluctuations and have very low frictions
- Long service seal life
- Wear and friction are kept to a minimum because of its ability to retain lubricant
Application
- Suitable for light to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PK16B
OPERATING PRESSURE
-
- METRIC
- Temperature: -45°C + 110°C
- Speed: 1.0 m/sec
- Pressure: 400 bar
- INCH
- Temperature: -50°F + 230°F
- Speed: 3.0 ft/sec
- Pressure:6000 psi
Features
- Symmetrical psiton seal designed to offer effective bore sealing
- Flexible for easy installation
- Excellent wear resistance
- Robust design
- Wide temperature range
Application
- Suitable for light duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PK16C
OPERATING PRESSURE
-
- METRIC
- Temperature: -30°C + 90°C
- Speed: 0.55 m/sec
- Pressure: 17 bar
- INCH
- Temperature: -22°F + 194°F
- Speed: 1.5 ft/sec
- Pressure:250 psi
Features
- Symmetrical psiton seal designed to offer effective bore sealing
- Flexible for easy installation
- Excellent wear resistance
- Wide temperature range
Application
- Suitable for light duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PK18
OPERATING PRESSURE
-
- METRIC
- Temperature: -40°C + 110°C
- Speed: 0.5 m/sec
- Pressure: 350 bar
- INCH
- Temperature: -40°F + 230°F
- Speed: 1.5 ft/sec
- Pressure:5000 psi
Features
- Excellent resistance to abrasion
- Improves sealing
- Flexible for easy installation
- Compact housing
Application
- Suitable for light to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PK19
OPERATING PRESSURE
-
- METRIC
- Temperature: -100°C + 260°C
- Speed: 2 m/sec
- Pressure: 15/25 bar
Features
- Low friction coefficient
- Excellent abrasion resistance
- Wide temperature range
- Suitable for static, rotating and oscillatory systems
Application
- Suitable for light to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PK19H
OPERATING PRESSURE
-
- METRIC
- Temperature: -40°C + 110°C
- Speed: 0.5 m/sec
- Pressure: 350 bar
- INCH
- Temperature: -40°F + 230°F
- Speed: 1.5 ft/sec
- Pressure:5000 psi
Features
- Excellent resistance to abrasion
- Improves sealing
- Flexible for easy installation
- Compact housing
Application
- Suitable for light to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PK21
OPERATING PRESSURE
-
- METRIC
- Temperature: -40°C + 110°C
- Speed: 0.5 m/sec
- Pressure: 350 bar
- INCH
- Temperature: -40°F + 230°F
- Speed: 1.5 ft/sec
- Pressure:5000 psi
Features
- Excellent resistance to abrasion
- Improves sealing
- Flexible for easy installation
- Compact housing
Application
- Suitable for light to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PK22
OPERATING PRESSURE
-
- METRIC
- Temperature: 100°C
- Speed: 0.5 m/sec
- Pressure: 34 bar
- INCH
- Temperature: 212°F
- Speed: 98.4 ft/sec
- Pressure:4931 psi
Features
- Excellent resistance to abrasion
- Improves sealing
- Suitable for adjustable and non-adjustable axial length housings
- Long life service seal
- Flexible for easy installation
- Compact housing
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PK22TW
OPERATING PRESSURE
-
- METRIC
- Temperature: 100°C
- Speed: 0.5 m/sec
- Pressure: 34 bar
- INCH
- Temperature: 212°F
- Speed: 98.4 ft/sec
- Pressure:4931 psi
Features
- Excellent resistance to abrasion
- Improves sealing
- Suitable for adjustable and non-adjustable axial length housings
- Long life service seal
- Flexible for easy installation
- Compact housing
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions

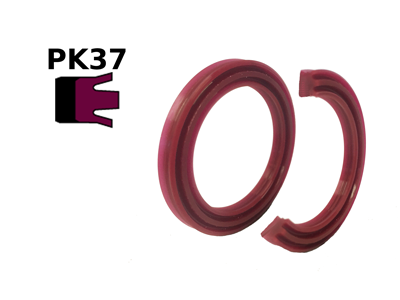

PK37
OPERATING PRESSURE
-
- METRIC
- Temperature: -30°C+110°C
- Speed: 0.8 m/sec
- Pressure: 600 bar
- INCH
- Temperature: -22°F+212°F
- Speed: 2.4 ft/sec
- Pressure:9000 psi
Features
- Effective seal for extreme applications
- High load capability
- Pressure activating grooves
- Long life service seal
- Flexible for easy installation
Application
- Suitable for heavy to extreme duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PKCUP
OPERATING PRESSURE
-
- METRIC
- Temperature: -30°C+90°C
- Speed: 0.55 m/sec
- Pressure: 17 bar
- INCH
- Temperature: -22°F+194°F
- Speed: 1.5 ft/sec
- Pressure:250 psi
Features
- Designed for single or double acting light duty applications
- Responsive to low pressure fluctuations
- Flexible for easy installation
- Long life service seal
Application
- Suitable for light duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PKCUPBH
OPERATING PRESSURE
-
- METRIC
- Temperature: -30°C+90°C
- Speed: 0.55 m/sec
- Pressure: 17 bar
- INCH
- Temperature: -22°F+194°F
- Speed: 1.5 ft/sec
- Pressure:250 psi
Features
- Designed for single or double acting light duty applications
- Responsive to low pressure fluctuations
- Flexible for easy installation
- Long life service seal
Application
- Suitable for light duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PKCUPBHC
OPERATING PRESSURE
-
- METRIC
- Temperature: -30°C+90°C
- Speed: 0.55 m/sec
- Pressure: 17 bar
- INCH
- Temperature: -22°F+194°F
- Speed: 1.5 ft/sec
- Pressure:250 psi
Features
- Designed for single or double acting light duty applications
- Responsive to low pressure fluctuations
- Flexible for easy installation
- Long life service seal
Application
- Suitable for light duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PKCUPBHP
OPERATING PRESSURE
-
- METRIC
- Temperature: -30°C+90°C
- Speed: 0.55 m/sec
- Pressure: 17 bar
- INCH
- Temperature: -22°F+194°F
- Speed: 1.5 ft/sec
- Pressure:250 psi
Features
- Designed for single or double acting light duty applications
- Responsive to low pressure fluctuations
- Flexible for easy installation
- Long life service seal
Application
- Suitable for light duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PKCUPC
OPERATING PRESSURE
-
- METRIC
- Temperature: -30°C+90°C
- Speed: 0.55 m/sec
- Pressure: 17 bar
- INCH
- Temperature: -22°F+194°F
- Speed: 1.5 ft/sec
- Pressure:250 psi
Features
- Designed for single or double acting light duty applications
- Responsive to low pressure fluctuations
- Flexible for easy installation
- Long life service seal
Application
- Suitable for light duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
VEE PACK SEALS
VP10
OPERATING PRESSURE
- METRIC
- Temperature: -30°C + 100°C
- Speed:0.5 m/sec
- Pressure:400 bar
- INCH
- Temperature: -22°F + 212°F
- Speed: 1.5 ft/sec
- Pressure:6000 psi
Features
- Male top adaptor
- Enables the vee packer set to spread
- Suitable for high pressure operations
- Main function to push the top part of the vee packer set
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
VP10-12
OPERATING PRESSURE
- METRIC
- Temperature: -30°C + 100°C
- Speed:0.5 m/sec
- Pressure:400 bar
- INCH
- Temperature: -22°F + 212°F
- Speed: 1.5 ft/sec
- Pressure:6000 psi
Features
- Normally used in multiples with male and female adaptor
- Stacked together and lubricated liberally
- Must be axially pre-loaded by the housing
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
VP10-12A
OPERATING PRESSURE
- METRIC
- Temperature: -30°C + 100°C
- Speed:0.5 m/sec
- Pressure:400 bar
- INCH
- Temperature: -22°F + 212°F
- Speed: 1.5 ft/sec
- Pressure:6000 psi
Features
- Normally used in multiples with male and female adaptor
- Stacked together and lubricated liberally
- Must be axially pre-loaded by the housing
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
VP10-12B
OPERATING PRESSURE
- METRIC
- Temperature: -30°C + 100°C
- Speed:0.5 m/sec
- Pressure:400 bar
- INCH
- Temperature: -22°F + 212°F
- Speed: 1.5 ft/sec
- Pressure:6000 psi
Features
- Normally used in multiples with male and female adaptor
- Stacked together and lubricated liberally
- Must be axially pre-loaded by the housing
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
VP10-12C
OPERATING PRESSURE
- METRIC
- Temperature: -30°C + 100°C
- Speed:0.5 m/sec
- Pressure:400 bar
- INCH
- Temperature: -22°F + 212°F
- Speed: 1.5 ft/sec
- Pressure:6000 psi
Features
- Normally used in multiples with male and female adaptor
- Stacked together and lubricated liberally
- Must be axially pre-loaded by the housing
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
VP10-12R
OPERATING PRESSURE
- METRIC
- Temperature: -30°C + 100°C
- Speed:0.5 m/sec
- Pressure:400 bar
- INCH
- Temperature: -22°F + 212°F
- Speed: 1.5 ft/sec
- Pressure:6000 psi
Features
- Normally used in multiples with male and female adaptor
- Stacked together and lubricated liberally
- Must be axially pre-loaded by the housing
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
VP10-12T
OPERATING PRESSURE
- METRIC
- Temperature: -30°C + 100°C
- Speed:0.5 m/sec
- Pressure:400 bar
- INCH
- Temperature: -22°F + 212°F
- Speed: 1.5 ft/sec
- Pressure:6000 psi
Features
- Normally used in multiples with male and female adaptor
- Stacked together and lubricated liberally
- Must be axially pre-loaded by the housing
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
VP10-12W
OPERATING PRESSURE
- METRIC
- Temperature: -30°C + 100°C
- Speed:0.5 m/sec
- Pressure:400 bar
- INCH
- Temperature: -22°F + 212°F
- Speed: 1.5 ft/sec
- Pressure:6000 psi
Features
- Normally used in multiples with male and female adaptor
- Stacked together and lubricated liberally
- Must be axially pre-loaded by the housing
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
VP10A
OPERATING PRESSURE
- METRIC
- Temperature: -30°C + 100°C
- Speed:0.5 m/sec
- Pressure:400 bar
- INCH
- Temperature: -22°F + 212°F
- Speed: 1.5 ft/sec
- Pressure:6000 psi
Features
- An adaptor
- Used to support the base of the vee packer from moving out of place
- Keeps the seal in central position under load tension
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
VP10B
OPERATING PRESSURE
- METRIC
- Temperature: -30°C + 100°C
- Speed:0.5 m/sec
- Pressure:400 bar
- INCH
- Temperature: -22°F + 212°F
- Speed: 1.5 ft/sec
- Pressure:6000 psi
Features
- A bottom adaptor
- Used to support the base of the vee packer from moving out of place
- Keeps the seal in central position under load tension
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
VP10A1
OPERATING PRESSURE
- METRIC
- Temperature: -30°C + 100°C
- Speed:0.5 m/sec
- Pressure:400 bar
- INCH
- Temperature: -22°F + 212°F
- Speed: 1.5 ft/sec
- Pressure:6000 psi
Features
- Male top adaptor
- Enables the vee packer set to spread
- Suitable for high pressure operations
- Main function to push the top part of the vee packer set
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
VP10T
OPERATING PRESSURE
- METRIC
- Temperature: -30°C + 100°C
- Speed:0.5 m/sec
- Pressure:400 bar
- INCH
- Temperature: -22°F + 212°F
- Speed: 1.5 ft/sec
- Pressure:6000 psi
Features
- Bottom adaptor
- Enables the vee packer set to spread
- Suitable for high pressure operations
- Main function to push the top part of the vee packer set
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
VP11
OPERATING PRESSURE
- METRIC
- Temperature: -30°C + 100°C
- Speed:0.5 m/sec
- Pressure:400 bar
- INCH
- Temperature: -22°F + 212°F
- Speed: 1.5 ft/sec
- Pressure:6000 psi
Features
- Normally used in multiples of vee rings with male and female adaptor
- Stacked and must be lubricated with operating fluid
- Fits on the pressure side and when pre-loaded exerts a hinging action
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
VP11C
OPERATING PRESSURE
- METRIC
- Temperature: -30°C + 100°C
- Speed:0.5 m/sec
- Pressure:400 bar
- INCH
- Temperature: -22°F + 212°F
- Speed: 1.5 ft/sec
- Pressure:6000 psi
Features
- Normally used in multiples of vee rings with male and female adaptor
- Stacked and must be lubricated with operating fluid
- Fits on the pressure side and when pre-loaded exerts a hinging action
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
VP11R
OPERATING PRESSURE
- METRIC
- Temperature: -30°C + 100°C
- Speed:0.5 m/sec
- Pressure:400 bar
- INCH
- Temperature: -22°F + 212°F
- Speed: 1.5 ft/sec
- Pressure:6000 psi
Features
- Normally used in multiples of vee rings with male and female adaptor
- Stacked and must be lubricated with operating fluid
- Fits on the pressure side and when pre-loaded exerts a hinging action
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
VP12
OPERATING PRESSURE
- METRIC
- Temperature: -30°C + 100°C
- Speed:0.5 m/sec
- Pressure:400 bar
- INCH
- Temperature: -22°F + 212°F
- Speed: 1.5 ft/sec
- Pressure:6000 psi
Features
- Bottom adaptor
- Used to support the base of the vee packer from moving out of place
- Keeps vee packer seal set in central position when under load tension
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
VP12C
OPERATING PRESSURE
- METRIC
- Temperature: -30°C + 100°C
- Speed:0.5 m/sec
- Pressure:400 bar
- INCH
- Temperature: -22°F + 212°F
- Speed: 1.5 ft/sec
- Pressure:6000 psi
Features
- Bottom adaptor
- Used to support the base of the vee packer from moving out of place
- Keeps vee packer seal set in central position when under load tension
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
VP12R
OPERATING PRESSURE
- METRIC
- Temperature: -30°C + 100°C
- Speed:0.5 m/sec
- Pressure:400 bar
- INCH
- Temperature: -22°F + 212°F
- Speed: 1.5 ft/sec
- Pressure:6000 psi
Features
- Bottom adaptor
- Used to support the base of the vee packer from moving out of place
- Keeps vee packer seal set in central position when under load tension
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
VP12T
OPERATING PRESSURE
- METRIC
- Temperature: -30°C + 100°C
- Speed:0.5 m/sec
- Pressure:400 bar
- INCH
- Temperature: -22°F + 212°F
- Speed: 1.5 ft/sec
- Pressure:6000 psi
Features
- Bottom adaptor
- Used to support the base of the vee packer from moving out of place
- Keeps vee packer seal set in central position when under load tension
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
VP13-15
OPERATING PRESSURE
- METRIC
- Temperature: -30°C + 100°C
- Speed:0.5 m/sec
- Pressure:400 bar
- INCH
- Temperature: -22°F + 212°F
- Speed: 1.5 ft/sec
- Pressure:6000 psi
Features
- Normally used in multiples in a set with male and female adaptors
- Must be axially pre-loaded by the housing
- Effective sealing even when severe vibration occurs
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
VP13
OPERATING PRESSURE
- METRIC
- Temperature: -30°C + 100°C
- Speed:0.5 m/sec
- Pressure:400 bar
- INCH
- Temperature: -22°F + 212°F
- Speed: 1.5 ft/sec
- Pressure:6000 psi
Features
- Male top adaptor
- Enables the vee packer set to spread
- Suitable for high pressure operations
- Main function to push the top part of the vee packer set
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
VP14
OPERATING PRESSURE
- METRIC
- Temperature: -30°C + 100°C
- Speed:0.5 m/sec
- Pressure:400 bar
- INCH
- Temperature: -22°F + 212°F
- Speed: 1.5 ft/sec
- Pressure:6000 psi
Features
- Normally used in multiples in a set with male and female adaptors
- Must be axially pre-loaded by the housing
- Effective sealing even when severe vibration occurs
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
VP15
OPERATING PRESSURE
- METRIC
- Temperature: -30°C + 100°C
- Speed:0.5 m/sec
- Pressure:400 bar
- INCH
- Temperature: -22°F + 212°F
- Speed: 1.5 ft/sec
- Pressure:6000 psi
Features
- Bottom adaptor
- Used to support the base of the vee packer from moving out of place
- Keeps the seal in central position when under load tension
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
VP24
OPERATING PRESSURE
- METRIC
- Temperature: -30°C + 100°C
- Speed:0.5 m/sec
- Pressure:400 bar
- INCH
- Temperature: -22°F + 212°F
- Speed: 1.5 ft/sec
- Pressure:6000 psi
Features
- Bottom adaptor
- Used to support the base of the vee packer from moving out of place
- Keeps the seal in central position when under load tension
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
VP24F
OPERATING PRESSURE
- METRIC
- Temperature: -30°C + 100°C
- Speed:0.5 m/sec
- Pressure:400 bar
- INCH
- Temperature: -22°F + 212°F
- Speed: 1.5 ft/sec
- Pressure:6000 psi
Features
- Bottom adaptor
- Used to support the base of the vee packer from moving out of place
- Keeps the seal in central position when under load tension
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
VP24FM
OPERATING PRESSURE
- METRIC
- Temperature: -30°C + 100°C
- Speed:0.5 m/sec
- Pressure:400 bar
- INCH
- Temperature: -22°F + 212°F
- Speed: 1.5 ft/sec
- Pressure:6000 psi
Features
- Used in multiples in a set with male and female adaptor
- Stacked together and lubricated prior to assembly
- Must be axially pre-loaded by the housing
- Effective sealing where severe vibration may occur
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
VP24M
OPERATING PRESSURE
- METRIC
- Temperature: -30°C + 100°C
- Speed:0.5 m/sec
- Pressure:400 bar
- INCH
- Temperature: -22°F + 212°F
- Speed: 1.5 ft/sec
- Pressure:6000 psi
Features
- Male top adaptor
- Enables the vee packer set to spread
- Suitable for high pressure operations
- Main function to push the top part of the vee packer set
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
VP25
OPERATING PRESSURE
- METRIC
- Temperature: -30°C + 100°C
- Speed:0.5 m/sec
- Pressure:400 bar
- INCH
- Temperature: -22°F + 212°F
- Speed: 1.5 ft/sec
- Pressure:6000 psi
Features
- Bottom adaptor
- Used to support the base of the vee packer from moving out of place
- Keeps the seal set in central position when under load tension
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
VP25-27
OPERATING PRESSURE
- METRIC
- Temperature: -30°C + 100°C
- Speed:0.5 m/sec
- Pressure:400 bar
- INCH
- Temperature: -22°F + 212°F
- Speed: 1.5 ft/sec
- Pressure:6000 psi
Features
- Normally used in multiples set with male and female adaptor
- Stacked together and lubricates liberally
- Must be axially pre-loaded by the housing
- Effective sealing even when severe vibration occurs
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
VP26
OPERATING PRESSURE
- METRIC
- Temperature: -30°C + 100°C
- Speed:0.5 m/sec
- Pressure:400 bar
- INCH
- Temperature: -22°F + 212°F
- Speed: 1.5 ft/sec
- Pressure:6000 psi
Features
- Normally used in multiples set with male and female adaptor
- Stacked together and lubricates liberally
- Must be axially pre-loaded by the housing
- Effective sealing even when severe vibration occurs
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
VP27
OPERATING PRESSURE
- METRIC
- Temperature: -30°C + 100°C
- Speed:0.5 m/sec
- Pressure:400 bar
- INCH
- Temperature: -22°F + 212°F
- Speed: 1.5 ft/sec
- Pressure:6000 psi
Features
- Male top adaptor
- Enables the vee packer set to spread
- Suitable for high pressure operations
- Main function to push the top part of the vee packer set
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
VP29
OPERATING PRESSURE
- METRIC
- Temperature: -30°C + 100°C
- Speed:0.5 m/sec
- Pressure:400 bar
- INCH
- Temperature: -22°F + 212°F
- Speed: 1.5 ft/sec
- Pressure:6000 psi
Features
- Bottom adaptor
- Keeps the base of the seal set from moving out of place
- Ensures that the seal set is in its central position when under load tension
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
VP29-31
OPERATING PRESSURE
- METRIC
- Temperature: -30°C + 100°C
- Speed:0.5 m/sec
- Pressure:400 bar
- INCH
- Temperature: -22°F + 212°F
- Speed: 1.5 ft/sec
- Pressure:6000 psi
Features
- Male top adaptor
- Enables the vee packer set to spread
- Suitable for high pressure operations
- Main function to push the top part of the vee packer set
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
VP30
OPERATING PRESSURE
- METRIC
- Temperature: -30°C + 100°C
- Speed:0.5 m/sec
- Pressure:400 bar
- INCH
- Temperature: -22°F + 212°F
- Speed: 1.5 ft/sec
- Pressure:6000 psi
Features
- Male top adaptor
- Enables the vee packer set to spread
- Suitable for high pressure operations
- Main function to push the top part of the vee packer set
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
VP31
OPERATING PRESSURE
- METRIC
- Temperature: -30°C + 100°C
- Speed:0.5 m/sec
- Pressure:400 bar
- INCH
- Temperature: -22°F + 212°F
- Speed: 1.5 ft/sec
- Pressure:6000 psi
Features
- Male top adaptor
- Enables the vee packer set to spread
- Suitable for high pressure operations
- Main function to push the top part of the vee packer set
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PNEUMATIC SEALS
PAA4
OPERATING PRESSURE
-
- METRIC
- Temperature: -45°C + 110°C
- Speed:4.0 m/sec
- INCH
- Temperature: -50°F + 230°F
- Speed: 12.0 ft/sec
Features
- Snug fit provides effective sealing
- Long wear – long life
- Easy installation
- Pressure relief ribs
- Provides reliable medium duty dirt exclusion
Application
- Suitable for light to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PAA5
OPERATING PRESSURE
-
- METRIC
- Temperature: -45°C + 120°C
- Speed:4.0 m/sec
- INCH
- Temperature: -40°F + 250°F
- Speed: 12.0 ft/sec
Features
- Outside lip for effective sealing
- Pressure relief ribs
- Effective scraping lip
- Removes heavily deposited mud
Application
- Suitable for light to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PAA6
OPERATING PRESSURE
- METRIC
- Temperature: -45°C + 110°C
- Speed:1.0 m/sec
- INCH
- Temperature: -50°F + 230°F
- Speed: 3.0 ft/sec
Features
- Precision trimmed wiping lip
- Designed to press fit into open groove housings
- Clears away heavily deposited dirt
- Offers excellent durability service
Application
- Suitable for light to heavy duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PAD1
OPERATING PRESSURE
-
-
- METRIC
- Speed: 1 m/sec
- Pressure:16 bar
-
Features
- No mechanical check valves required
- High cushioning consistency due to automatic centering
- Suitable to be used in harsh conditions
- Immediate response to reverse direction
- Extreme wear resistance
- Easy installation
Application
- Suitable for light to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PAD2
OPERATING PRESSURE
-
- METRIC
- Temperature: -30°C + 80°C
- Speed: 1 m/sec
- Pressure: 16 bar
Features
- No mechanical check valves required
- High cushioning consistency due to automatic centering
- Suitable to be used in harsh conditions
- Immediate response to reverse direction
- Good wear resistance
- Easy installation
- Short axial assembly length
- Short radial assembly length
Application
- Suitable for light to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PAK1
OPERATING PRESSURE
-
- METRIC
- Temperature: -45°C + 80°C
- Speed: 1.0 m/sec
- Pressure: 16 bar
- INCH
- Temperature: -50°F + 180°F
- Speed: 3.0 ft/sec
- Pressure: 230 psi
Features
- Effective sealing
- Low friction
- Easy installation
- Sealing lip combines both low friction and ultra long life
- Excellent temperature range
Application
- Suitable for light to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PAK2
OPERATING PRESSURE
-
- METRIC
- Temperature: -45°C + 80°C
- Speed:1.0 m/sec
- Pressure:16 bar
- INCH
- Temperature: -50°F + 180°F
- Speed: 3.0 ft/sec
- Pressure:230 psi
Features
- Effective sealing
- Sealing lip combines both low friction and ultra long life
- Low friction
- Excellent temperature range
Application
- Suitable for light to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PAK3
OPERATING PRESSURE
- METRIC
- Temperature: -45°C + 80°C
- Speed:1.0 m/sec
- Pressure:16 bar
- INCH
- Temperature: -50°F + 180°F
- Speed: 3.0 ft/sec
- Pressure:230 psi
Features
- Effective sealing
- Low friction
- Easy installation
- Excellent temperature range
Application
- Suitable for the light duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PAK5
OPERATING PRESSURE
-
- METRIC
- Temperature: -45°C + 80°C
- Speed:1.0 m/sec
- Pressure:16 bar
- INCH
- Temperature: -50°F + 180°F
- Speed: 3.0 ft/sec
- Pressure:230 psi
Features
- Effective sealing
- Low friction
- Easy installation
- Excellent temperature range
Application
- Suitable for light to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PAK9
OPERATING PRESSURE
-
- METRIC
- Temperature: -30°C + 80°C
- Speed: 1 m/sec
- Pressure:16 bar
Features
- Flexible for easy installation
- Long life seal
- Comes in a wide range of sizes
Application
- Suitable for light to medium duty application
Fluids
- Mineral based oils, water/glycol and water emulsions
PAK11
OPERATING PRESSURE
-
- METRIC
- Temperature: -20°C + 100°C
- Speed: 1 m/sec
- Pressure:12 bar
Features
- Flexible for easy installation
- Long life
- Good sealing performance
- Low static and dynamic friction
Application
- Suitable for light to medium duty application
Fluids
- Mineral based oils, water/glycol and water emulsions
PAK34
OPERATING PRESSURE
-
- METRIC
- Temperature: -30°C + 90°C
- Speed:0.5 m/sec
- Pressure:30 bar
- INCH
- Temperature: -22°F + 212°F
- Speed: 1.5 ft/sec
- Pressure:500 psi
Features
- U ring is designed for low pressure pneumatic applications
- Pressure ratings can be increased by using bacp up rings
- Long life seal
Application
- Suitable for light duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PAK36
OPERATING PRESSURE
-
- METRIC
- Temperature: -30°C + 90°C
- Speed:0.55 m/sec
- Pressure:17 bar
- INCH
- Temperature: -22°F + 194°F
- Speed: 1.5 ft/sec
- Pressure:250 psi
Features
- Excellent for stick slip and high speed movements
- Flexible for easy installation
- Gives pressure capability options
Application
- Suitable for light duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PAS1
OPERATING PRESSURE
-
- METRIC
- Temperature: -45°C + 80°C
- Speed:1.0 m/sec
- Pressure:16 bar
- INCH
- Temperature: -50°F + 180°F
- Speed: 3.0 ft/sec
- Pressure:230 psi
Features
- Effective sealing
- Low friction
- Easy installation
- Excellent temperature range
- Sealing lip combines both low friction and ultra long life
Application
- Suitable for light to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PAS2
OPERATING PRESSURE
-
- METRIC
- Temperature: -45°C + 80°C
- Speed:1.0 m/sec
- Pressure:16 bar
- INCH
- Temperature: -50°F + 180°F
- Speed: 3.0 ft/sec
- Pressure:230 psi
Features
- Double acting glide style gland seal
- Suited for one piece pistons
- TMCF/WIFF seal face with nitrile energiser
- Dual face materials gives pressure capability options
Application
- Suitable for light duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PAS3
OPERATING PRESSURE
-
- METRIC
- Temperature: -20°C + 80°C
- Speed:1 m/sec
- Pressure:16 bar
Features
- Excellent running properties
- Wear resistant
- Made from highly wear resistant polyurethane
Application
- Suitable for light to medium applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PAS4
OPERATING PRESSURE
-
- METRIC
- Temperature: -40°C
- Speed: 1.0 m/sec
- Pressure:10 bar
Features
- Made from high performance polyurethane
- Easy installation
- Ultra long life
- Excellent low temperature performance
- Low friction
Application
- Suitable for light to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PAS5
OPERATING PRESSURE
-
- METRIC
- Temperature: -45°C + 80°C
- Speed:1.0 m/sec
- Pressure:16 bar
- INCH
- Temperature: -50°F + 180°F
- Speed: 3.0 ft/sec
- Pressure:230 psi
Features
- Seal combines both low friction and ultra long life
- Effective sealing
- Excellent temperature range
- Easy installation
Application
- Suitable for light duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PAS6
OPERATING PRESSURE
-
- METRIC
- Temperature: -45°C + 110°C
- Speed: 4.0 m/sec
- INCH
- Temperature: -50°F + 230°F
- Speed: 12.0 ft/sec
Features
- Twin lip ensures drier sealing system
- Hard wearing material for long life
- Designed to exclude dirt and moisture
- Maximum wear resistance
- Wiper lip used to collect fluid passing the rod seal
Application
- Suitable for light to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PAS7
OPERATING PRESSURE
-
- METRIC
- Temperature: -45°C + 110°C
- Speed:4.0 m/sec
- INCH
- Temperature: -50°F + 230°F
- Speed: 12.0 ft/sec
Features
- Twin lip ensures drier sealing system
- Hard wearing material for long life
- Designed to exclude dirt and moisture
- Maximum wear resistance
- Wiper lip used to collect fluid passing the rod seal
Application
- Suitable for light to medium duty application
Fluids
- Mineral based oils, water/glycol and water emulsions
PAS8
OPERATING PRESSURE
-
- METRIC
- Temperature: -30°C + 90°C
- Speed:0.55 m/sec
- Pressure:17 bar
- INCH
- Temperature: -22°F + 194°F
- Speed: 1.5 ft/sec
- Pressure:250 psi
Features
- Flexible for easy installation
- Long life seal
- Excellent stick slip and high speed movements
- Dual face materials gives pressure capability options
Application
- Suitable for light to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PAS9
OPERATING PRESSURE
-
- METRIC
- Temperature: -45°C + 80°C
- Speed:1.0 m/sec
- Pressure:16 bar
- INCH
- Temperature: -50°F + 180°F
- Speed: 3.0 ft/sec
- Pressure:230 psi
Features
- Effective sealing
- Low friction
- Easy installation
- Sealing lip combines both low friction and ultra long life
- Excellent temperature range
Application
- Suitable for light to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PAS11
OPERATING PRESSURE
-
- METRIC
- Temperature: -20°C + 100°C
- Speed: 1 m/sec
- Pressure:12 bar
Features
- Flexible for easy installation
- Long life
- Piston seal can be mounted into the grooves by simply pulling them over the piston
Application
- Suitable for light to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PAS34
OPERATING PRESSURE
-
- METRIC
- Temperature: -30°C + 90°C
- Speed:0.5 m/sec
- Pressure:30 bar
- INCH
- Temperature: -22°F + 212°F
- Speed: 1.5 ft/sec
- Pressure:500 psi
Features
- Long life seal
- Designed for low pressure pneumatic applications
- Pressure ratings can be increased by using back up rings
- Easy installation
Application
- Suitable for light to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PAS36
OPERATING PRESSURE
-
- METRIC
- Temperature: -30°C + 90°C
- Speed:0.55 m/sec
- Pressure:17 bar
- INCH
- Temperature: -22°F + 194°F
- Speed: 1.5 ft/sec
- Pressure:250 psi
Features
- Excellent stick slip and high speed movements
- Flexible for easy installation
- Long life seal
- Comes in a wide range of sizes
Application
- Suitable for light duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
PAV2
OPERATING PRESSURE
-
- METRIC
- Temperature: -30°C + 90°C
- Speed:0.55 m/sec
- Pressure:17 bar
- INCH
- Temperature: -22°F + 194°F
- Speed: 1.5 ft/sec
- Pressure:250 psi
Features
- Excellent stick slip and high speed movements
- Flexible for easy installation
- Long life seal
- Comes in a wide range of sizes
Application
- Suitable for light duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
QUATRO SEALS
QA-C
OPERATING PRESSURE
-
- METRIC
- Temperature: -45°C + 110°C
- Speed:1.0 m/sec
- Pressure:400 bar
- INCH
- Temperature: -50°F + 230°F
- Speed:3.0 ft/sec
- Pressure:6000 psi
Features
- Excellent wear resistant
- Flexible for easy installation
- High resistance to extrusion
- Wide temperature
- Low friction
- Improved sealing
- Increased seal stability
Application
- Wide variety of applications
Fluids
- Mineral based oils, water/glycol and water emulsions
QA-E
OPERATING PRESSURE
-
- METRIC
- Temperature: -40°C + 110°C
- Speed:0.5 m/sec
- Pressure:350 bar
- INCH
- Temperature: -40°F + 230°F
- Speed: 1.5 ft/sec
- Pressure:5000 psi
Features
- Excellent resistance to abrasion
- Improves sealing
- Compact housing
- Flexible for easy installation
Application
- Suitable for light to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
QA-P
OPERATING PRESSURE
-
- METRIC
- Temperature: -45°C + 110°C
- Speed:1.0 m/sec
- Pressure:400 bar
- INCH
- Temperature: -50°F + 230°F
- Speed: 3.0 ft/sec
- Pressure:6000 psi
Features
- Excellent wear resistant
- Flexible for easy installation
- High resistance to extrusion
- Low friction
Application
- Light to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
QA-U
OPERATING PRESSURE
-
- METRIC
- Temperature: -45°C + 110°C
- Speed:1.0 m/sec
- Pressure:400 bar
- INCH
- Temperature: -50°F + 230°F
- Speed: 3.0 ft/sec
- Pressure:6000 psi
Features
- Excellent wear resistant
- Flexible for easy installation
- High resistance to extrusion
- Wide temperature range
- Low friction
Application
- Suitable for light to medium duty applications
Fluids
- Mineral based oils, water/glycol and water emulsions
