O-Rings & Back up

All Oz Seals O’Rings & Back Ups are the most commonly used seal worldwide due to the simplicity of the design. It makes for a economical yet very effective sealing solutions. The  sucessful design of the o’ring allows it to seal statically, as well as dynamically but within limits.

Oz Seals manufactures the world’s greatest range of O’Ring sizes and they are available in various different materials  for a wide range of applications. View more info in the catalogue. For sizes and direct orders, visit Sealnet.

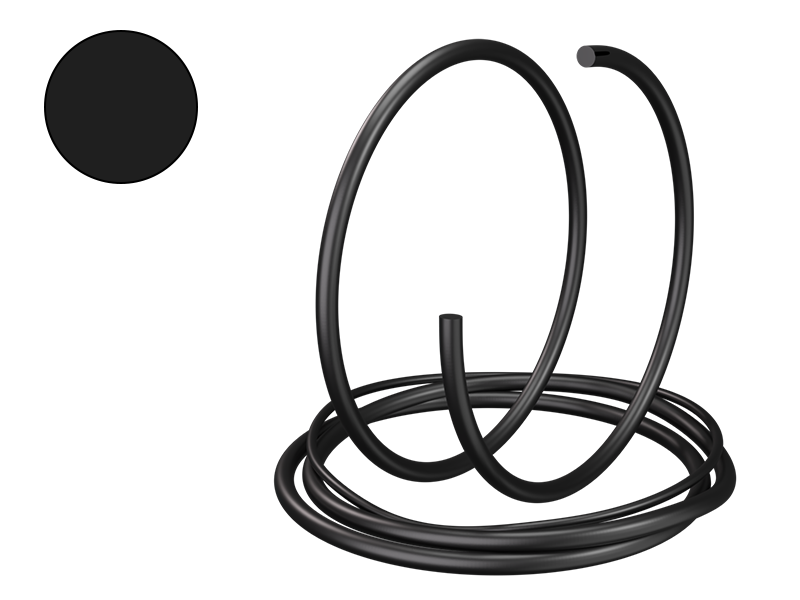

ORBS

Material: NBR/VITON/HNBR/NEOPRENE
EPDM/AFLAS/SILICONE
Pressure: 60-100
Speed: 0.5 m/s
Temperature: -30 to +100°C

Features+

  • ORBS is a British standard size O’Ring
  • Most common sealing solutions
  • Comes in a wide range of sizes
  • O’Rings maintain sealing contact force by radical or axial deformation in the seal housing between two machine components

Application

  • A wide variety of applications sealing various media

ORM

Material: NBR/VITON/HNBR/NEOPRENE
EPDM/AFLAS/SILICONE
Pressure: 400 bar
Speed: 0.5 m/s
Temperature: -30 to +110°C

Features+

  • ORM is a German metric standard size O’Ring
  • Most common sealing solutions
  • Comes in a wide range of sizes
  • O’Rings maintain sealing contact force by radical or axial deformation in the seal housing between two machine components

Application

  • A wide variety of applications sealing various media

ORG

Material: NBR/VITON/HNBR/NEOPRENE
EPDM/AFLAS/SILICONE
Pressure: 500 bar
Speed: 0.5 m/s
Temperature: -30 to +110°C

Features+

  • ORG is a Japanese series O’Ring
  • Most common sealing solutions
  • Comes in a wide range of sizes
  • O’Rings maintain sealing contact force by radical or axial deformation in the seal housing between two machine components

Application

  • A wide variety of applications sealing various media

ORP

Material: NBR/VITON/HNBR/NEOPRENE
EPDM/AFLAS/SILICONE
Pressure: 500 bar
Speed: 0.5 m/s
Temperature: -30 to +110°C

Features+

  • ORP is a Japanese series O’Ring
  • Most common sealing solutions
  • Comes in a wide range of sizes
  • O’Rings maintain sealing contact force by radical or axial deformation in the seal housing between two machine components

Application

  • A wide variety of applications sealing various media

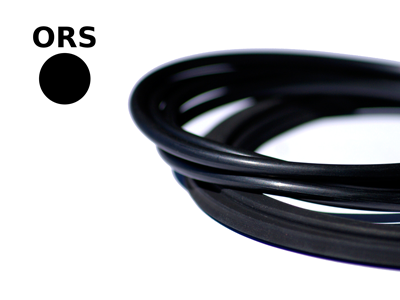

ORS

Material: NBR/VITON/HNBR/NEOPRENE
EPDM/AFLAS/SILICONE
Pressure: 500 bar
Speed: 0.5 m/s
Temperature: -30 to +110°C

Features+

  • ORS is a Japanese series O’Ring
  • Most common sealing solutions
  • Comes in a wide range of sizes
  • O’Rings maintain sealing contact force by radical or axial deformation in the seal housing between two machine components

Application

  • A wide variety of applications sealing various media

ORV

Material: NBR/VITON/HNBR/NEOPRENE
EPDM/AFLAS/SILICONE
Pressure: 500 bar
Speed: 0.5 m/s
Temperature: -30 to +110°C

Features+

  • ORV is a Japanese series O’Ring
  • Most common sealing solutions
  • Comes in a wide range of sizes
  • O’Rings maintain sealing contact force by radical or axial deformation in the seal housing between two machine components

Application

  • A wide variety of applications sealing various media

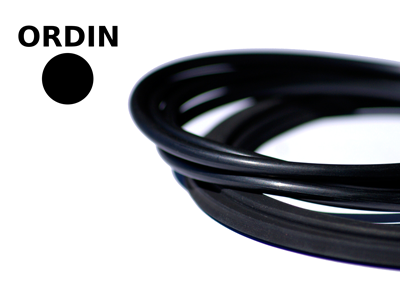

ORDIN

Material: NBR/VITON/HNBR/NEOPRENE
EPDM/AFLAS/SILICONE
Pressure: 500 bar
Speed: 0.5 m/s
Temperature: -30 to +110°C

Features+

  • ORDIN is a standard O’Ring
  • Most common sealing solutions
  • Comes in a wide range of sizes
  • O’Rings maintain sealing contact force by radical or axial deformation in the seal housing between two machine components

Application

  • A wide variety of applications sealing various media

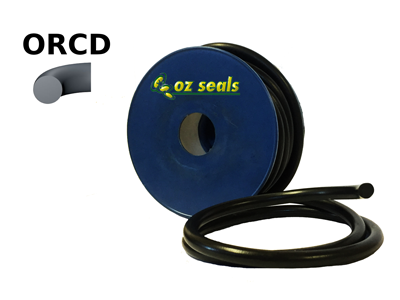

ORCD

Material: NBR/VITON/HNBR/NEOPRENE
EPDM/AFLAS/SILICONE
Pressure: 500 bar
Speed: 0.5 m/s
Temperature: -30 to +110°C

Features+

  • ORCD is an O’Ring cord
  • Most common sealing solutions
  • Comes in a wide range of sizes
  • O’Rings maintain sealing contact force by radical or axial deformation in the seal housing between two machine components

Application

  • A wide variety of applications sealing various media

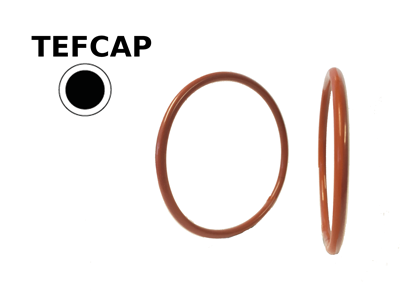

TEFCAP

Material: NBR/VITON/HNBR/NEOPRENE
EPDM/AFLAS/SILICONE
Pressure: 300
Speed: 0.5 m/s
Temperature: -30 to +110°C

Features+

  • TEFCAP is an encapsulated O’Ring
  • Most common sealing solutions
  • Comes in a wide range of sizes
  • Rubber header for low pressure sealing
  • O’Rings maintain sealing contact force by radical or axial deformation in the seal housing between two machine components

Application

  • A wide variety of applications sealing various media

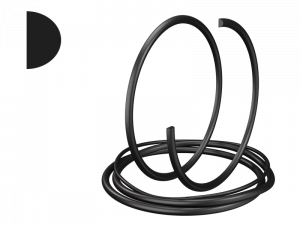

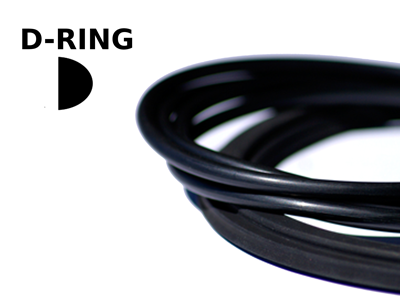

D-RING

Material: NBR/VITON/HNBR/NEOPRENE
EPDM/AFLAS/SILICONE
Pressure: 400 bar
Speed: 0.5 m/s
Temperature: -30 to +110°C

Features+

  • Most common sealing solutions
  • Comes in a wide range of sizes
  • Rubber header for low pressure sealing
  • D’Rings maintain sealing contact force by radical or axial deformation in the seal housing between two machine components

Application

  • A wide variety of applications sealing various media

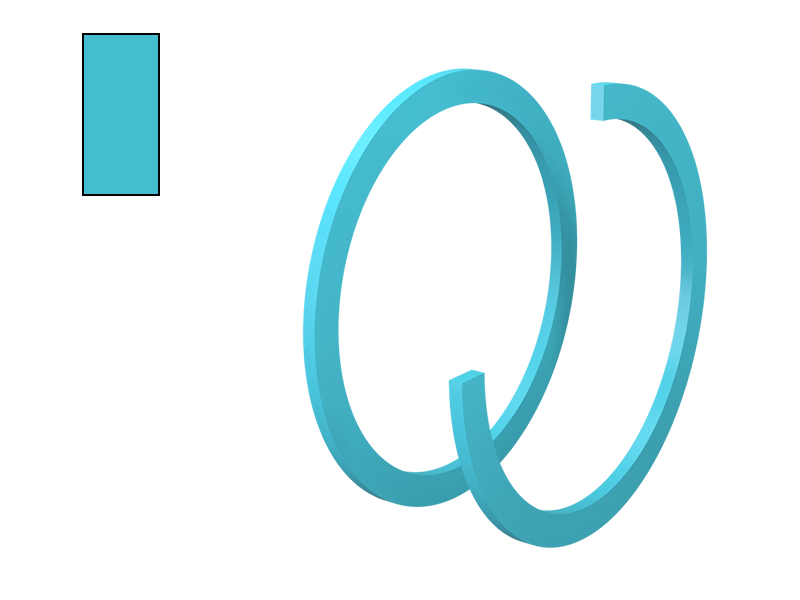

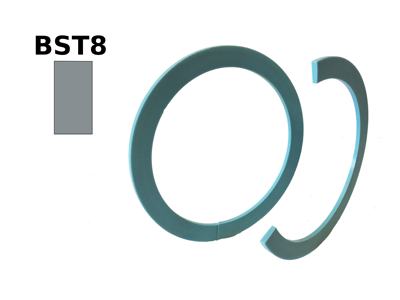

BTS8

Material: MOTUF
Temperature: -30 to +110°C
Material: TMCF
Temperature: -200 to + 200°C

Features+

  • BTS8 Backup Ring for O’Ring
  • Available solid or split

Application

  • Back-up for O’Ring
  • Static or dynamic applications

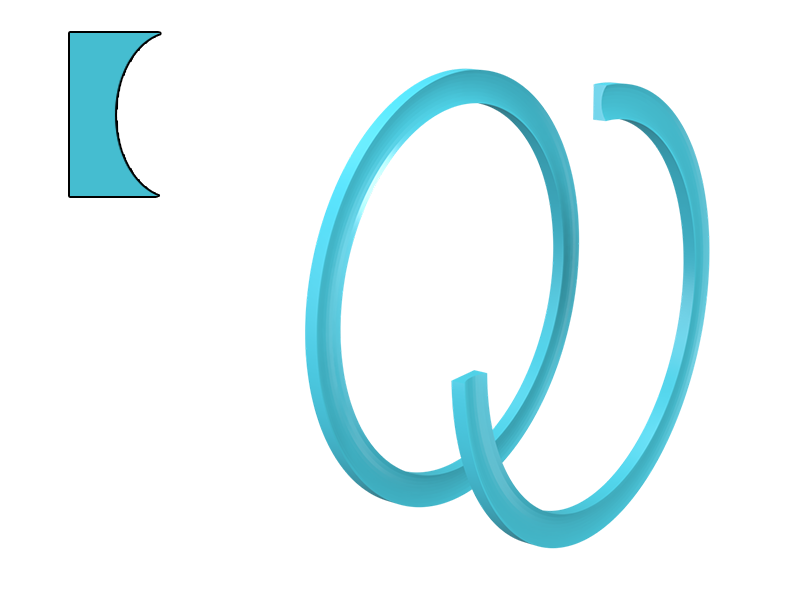

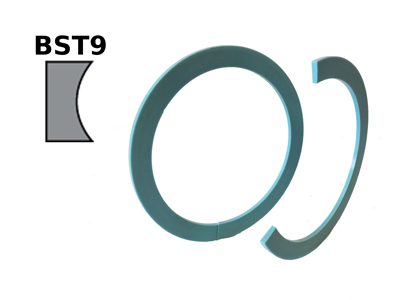

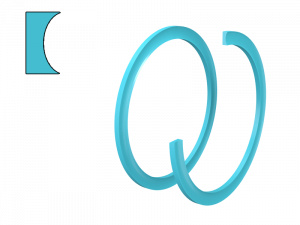

BTS9

Material: MOTUF
Temperature: -30 to +110°C
Material: TMCF
Temperature: -200 to + 200°C

Features+

  • BTS9 Contoured Backup Ring for O’Ring

Application

  • Back-up for O’Ring
  • Static or dynamic applications
