Buffer Seals

All Oz Buffer Seals maintain sealing contact in sliding motion between the cylinder head and the piston rod. The Oz Buffer Seals  are for easy installation and the designs are used in both rod and piston applications.

The Oz Buffer Seals are wear resistant and have a wide temperature range. Oz Buffer Seals comes in many different profiles and in a wide range of materials.  For sizes and direct orders, visit Sealnet.

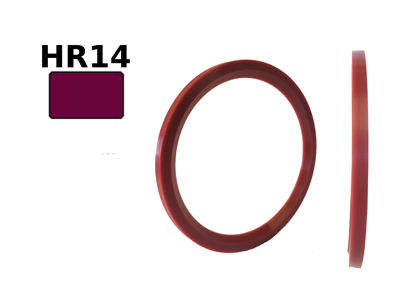

HR14

Material: ORSP
Pressure: 250
Speed: 0.5 m/s
Temperature: -30 to +110°C
Material: VITON
Pressure: 160
Speed: 0.5 m/s
Temperature: -20 to + 200°C
Material: HNBR
Pressure: 160
Speed: 0.5 m/s
Temperature: -30 to + 160°C

Features+

  • HR14 Buffer Seal
  • Heavy duty applications
  • Used where elastomeric seals will not perform

Application

  • Excellent for most extreme environments
  • Excellent for passing over ports
  • Wide tolerance to temperature, fluid compatibility and extrusion gap

Fluids

  • Hydraulic fluids & petroleum fuels & oils

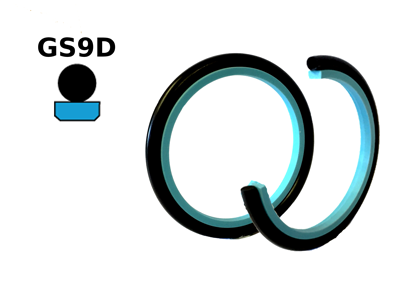

GS9D

Material: WIFFLON
Pressure: 300 bar
Speed: 0.5 m/s
Temperature: -30 to +110°C
Material: TMCF
Pressure: 400 bar
Speed: 4 m/s
Temperature: -200 to + 200°C
Material: MOTUF
Pressure: 400 bar
Speed: 1 m/s
Temperature: -30 to +110°C

Features+

  • GS9D Buffer Seal
  • Dual face materials gives pressure capability options

Application

  • Excellent for stick slip movement
  • Excellent for high speed movement

Fluids

  • Mineral based oils, water/glycol, water emulsions

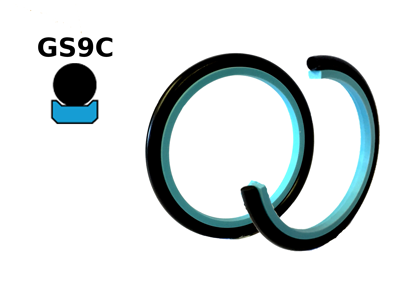

GS9C

Material: WIFFLON
Pressure: 300 bar
Speed: 0.5 m/s
Temperature: -30 to +110°C
Material: TMCF
Pressure: 400 bar
Speed: 4 m/s
Temperature: -200 to + 200°C
Material: MOTUF
Pressure: 400 bar
Speed: 1 m/s
Temperature: -30 to +110°C

Features+

  • GS9C Buffer Seal
  • Dual face materials gives pressure capability options

Application

  • Excellent for stick slip movement
  • Excellent for high speed movement

Fluids

  • Mineral based oils, water/glycol, water emulsions

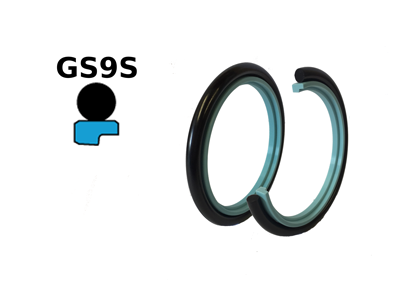

GS9S

Material: WIFFLON
Pressure: 300 bar
Speed: 0.5 m/s
Temperature: -30 to +110°C
Material: TMCF
Pressure: 400 bar
Speed: 4 m/s
Temperature: -200 to + 200°C
Material: MOTUF
Pressure: 400 bar
Speed: 1 m/s
Temperature: -30 to +110°C

Features+

  • GS9S Buffer Seal
  • A buffer seal developed to work in conjunction with high-performance rod seals
  • Designed to protect the primary rod seal from pressure spikes in the cylinder
  • Self-relieving design

Application

  • Low friction – no stick slip
  • Simple grove design and installation
  • High strength percision

Fluids

  • Hydraulic fluids & petroleum fuels & oils

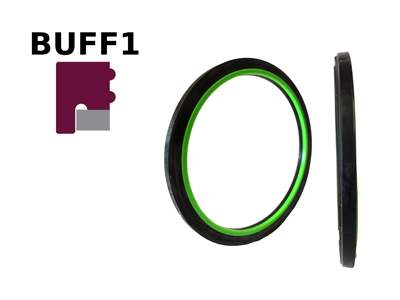

BUFF 1

Material: ORSP
Pressure: 500 bar
Speed: 0.5 m/s
Temperature: -40 to + 120°C

Features+

  • Buff1 Buffer Seal
  • Single acting buffer seal with anti-extrusion ring used in conjunction with primary rod seal
  • Absorbs shock pressure and protects the primary seal
  • Can tolerate high extrusion gap

Application

  • Used as a buffer seal

Fluids

  • Hydraulic fluids & petroleum fuels & oils

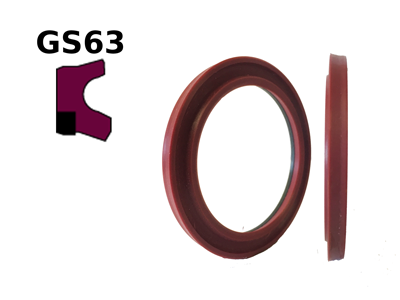

GS63

Material: ORSP
Pressure: 400 bar
Speed: 0.5 m/s
Temperature: -30 to +110°C
Material: NBR
Pressure: 160 bar
Speed: 0.5 m/s
Temperature: -30 to +100°C
Material: VITON
Pressure: 160 bar
Speed: 0.5 m/s
Temperature: -20 to + 200°C

Features+

  •  GS63 Single Buffer Seal
  • Symmetrical lips permit permits use in both rod and piston applications
  • Deep grove ensures low friction and linear movement at low pressures
  • Flexible for easy installation
  • Excellent wear resistance
  • Wide temperature range

Application

  • Single acting rod or piston seal

Fluids

  • Hydraulic fluids & petroleum fuels & oils

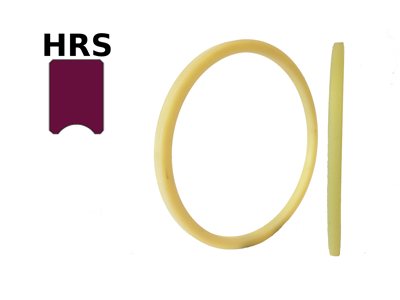

HRS

Material: ORSP
Pressure: 500 bar
Speed: 0.5 m/s
Temperature: -40 to + 120°C

Features+

  •  HRS Seal
  • Designed specifically for use in hydraulic swivel joints

Fluids

  • Mineral based oils. water/glycol and water emulsions

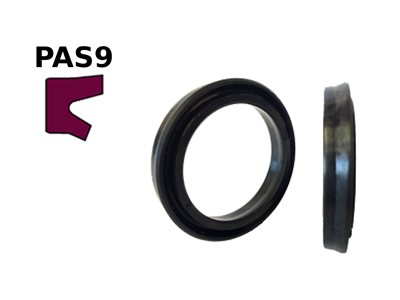

PAS9

Material: ORSP
Pressure: 16 bar
Speed: 1 m/s
Temperature: -30 to +110°C
Material:  NBR
Pressure: 500 bar
Speed: 1 m/s
Temperature: -20 to + 200°C
Material: VITON
Pressure: 16 bar
Speed: 1 m/s
Temperature: -20 to + 120°C

Features+

  •  PAS9 Buffer Seal
  • Symmetrical lips permit permits use in both rod and piston applications
  • Deep grove ensures low friction and linear movement at low pressures
  • Flexible for easy installation
  • Excellent wear resistance
  • Wide temperature range

Application

  • Single acting rod or piston seal

Fluids

  • Hydraulic fluids & petroleum fuels & oils

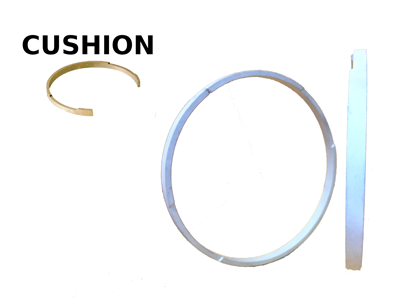

CUSHION

Material: WIFFLON / MOTUF/ TMCF
Pressure: 300
Speed: 0.5 m/s
Temperature: -30 to +110°C

Features+

  • Cushion Seal
